JBL Motion Picture Loudspeaker Systems Instruction Manual page 9

8 UNITS =
4X2

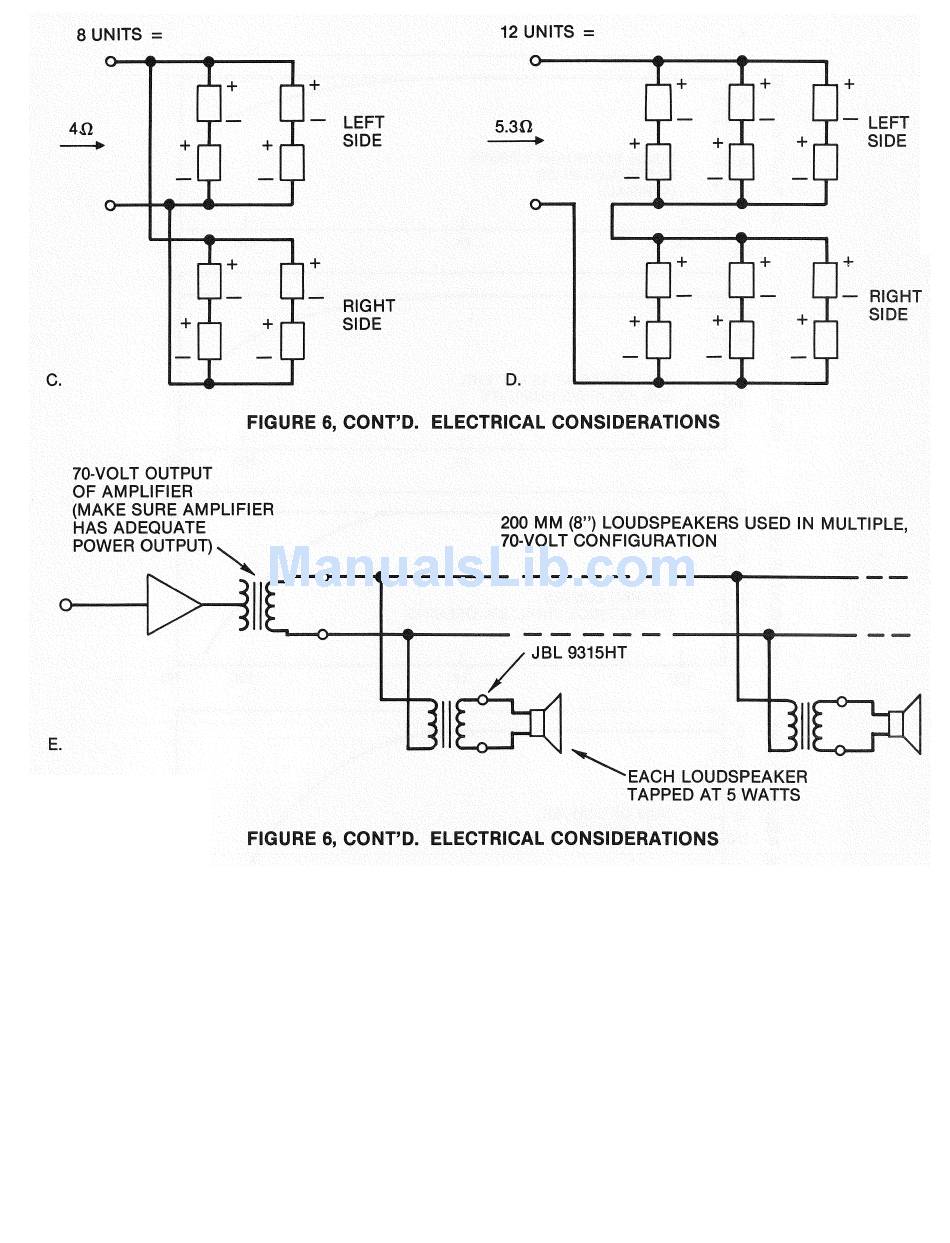

FIGURE 6, CONT'D. ELECTRICAL CONSIDERATIONS
70-VOLT OUTPUT
OF AMPLIFIER
(MAKE SURE AMPLIFIER
HAS ADEQUATE
POWER OUTPUT)
FIGURE 6, CONT'D. ELECTRICAL CONSIDERATIONS
12 UNITS =
LEFT
5.30
SIDE
RIGHT
SIDE
200 MM (8") LOUDSPEAKERS USED IN MULTIPLE,
70-VOLT CONFIGURATION
JBL 9315HT
*EACH LOUDSPEAKER
TAPPED AT 5 WATTS
LEFT
SIDE
RIGHT
SIDE
