q M akesurethe[POWER]switchesonthePS-
126andtransceiverareOFF.
w C onnecttheDCoutputcableofthePS-126
tothetransceiverDCpowerinputsocket.
e C onnecttheACpowercabletoanACoutlet
andthePS-126.
rTurnthePS-126ON.
 •"I" :ON (Powerindicatorlightsred)
 •"O" :OFF (Powerindicatorgoesoff)
tTurnthetransceiverON.
y T oturnOFFthesystem,turnthetransceiver
powerOFF,thenthePS-126insequence.
•Inputvoltage
•Inputcurrent
•Outputvoltage
•Max.outputcurrent
•Dimensions
•Weight(approx.)
•Usabletemperaturerange
PowerSW
Powerindicator
1-1-32Kamiminami,Hirano-ku,Osaka547-0003,Japan
Printedonrecycledpaperwithsoyink.

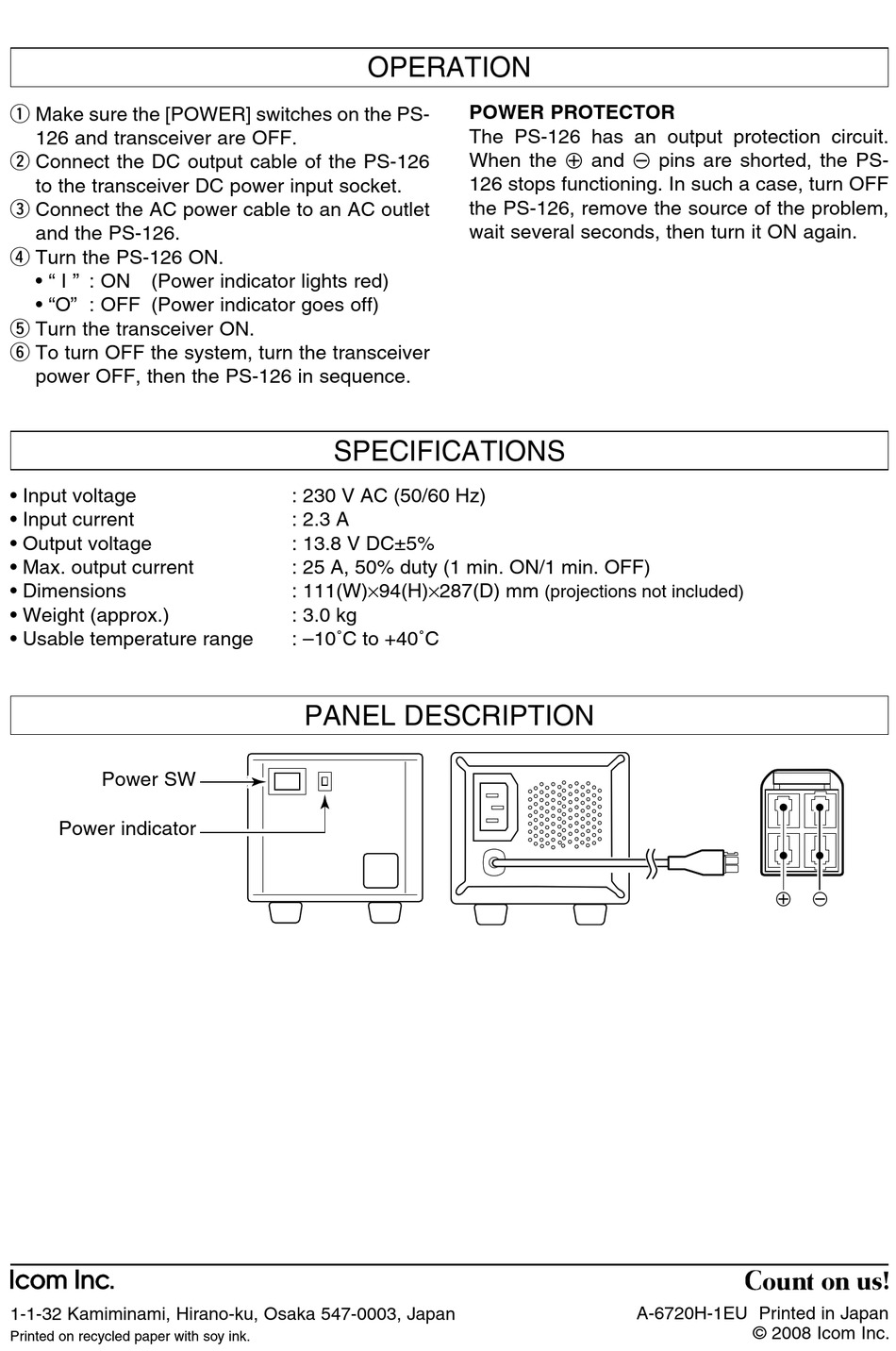

OPERATION

SPECIFICATIONS

:230VAC(50/60Hz)
:2.3A
:13.8VDC±5%
:25A,50%duty(1min.ON/1min.OFF)
:111(W)×94(H)×287(D)mm
:3.0kg
:–10˚Cto+40˚C
PANELDESCRIPTION
POWER PROTECTOR
The PS-126 has an output protection circuit.
When the + and _ pins are shorted, the PS-
126stopsfunctioning.Insuchacase,turnOFF
thePS-126,removethesourceoftheproblem,
waitseveralseconds,thenturnitONagain.
(projectionsnotincluded)
A-6720H-1EUPrintedinJapan
+ _
