Vectra Fitness On-Line 1400 Owner's Manual

Vectra fitness on-line 1400 gym owner's manual
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

On-Line
1 400
®
O w n e r ' s M a n u a l

Advertisement

loading

Related Manuals for Vectra Fitness On-Line 1400

Summary of Contents for Vectra Fitness On-Line 1400

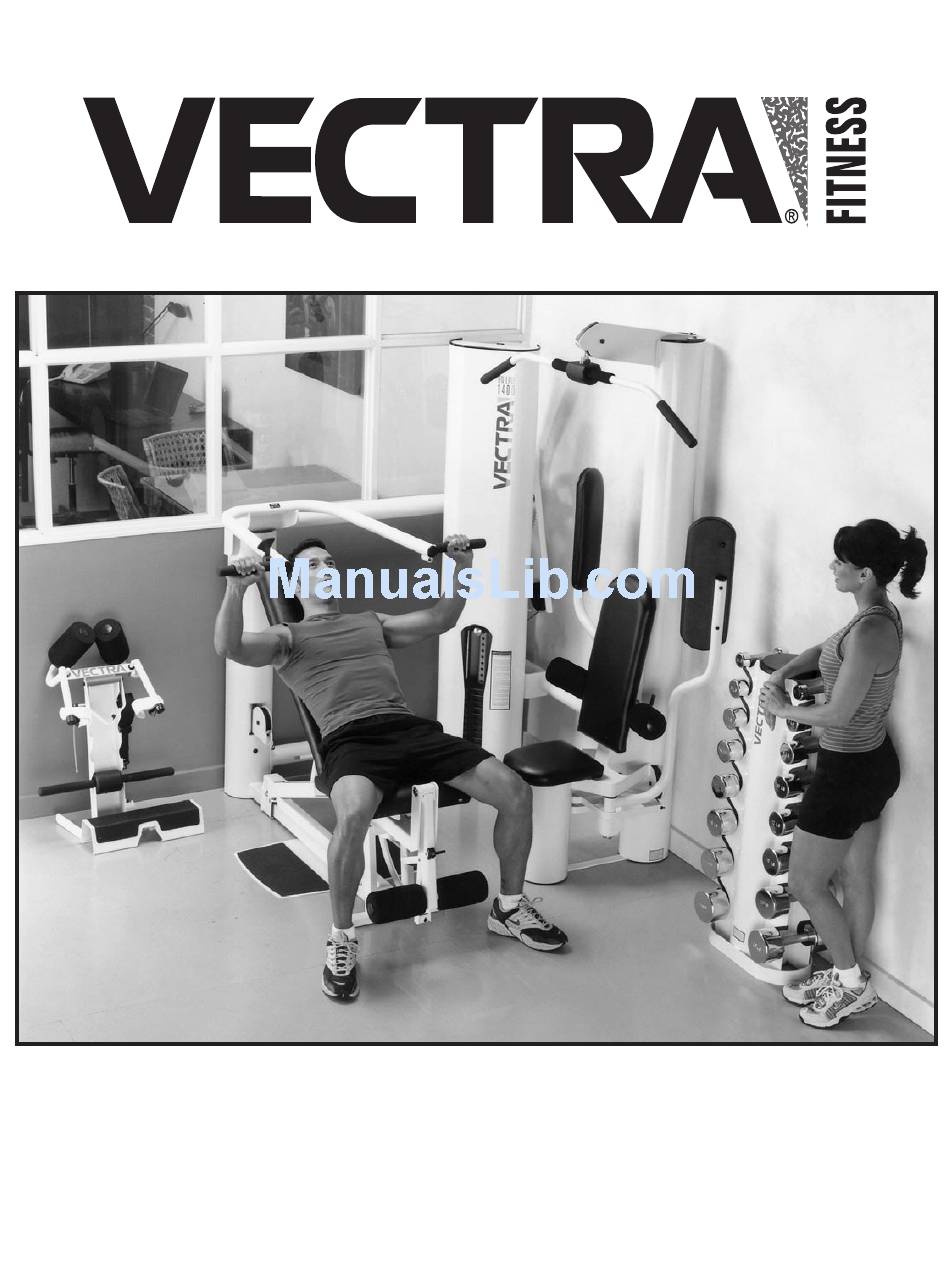

  • Page 1 On-Line 1 400 ® O w n e r ’ s M a n u a l...

  • Page 2: Routine Inspection & Maintenance

    Introduction Safety Rules ® e at Vectra Fitness appreciate your selecting our On-Line 1400 for your fitness Warning: program, and invite your questions and comments. We're sure that you’ll be pleased with your new Vectra Fitness gym. Serious injury can occur if you are struck by falling weights or moving parts. The This owner’s manual provides you with safety rules, assembly instructions and...

  • Page 3: Cable Diagram

    Vectra On-Line ® 1400 Cable Diagram Note: The pulleys on this diagram are numbered to make the installation of new cables as easy as possible. Simply start threading the cables through the pulleys beginning with the lowest number and working up. For example, if you are installing an entire set of cables start at pulley #1. If you are installing only a new low pulley cable (PN 59940) for example, you would begin at pulley #6.
  • Page 4 Conditions and Exceptions: Failures due to normal wear, damage, misuse, abuse, neglect, alteration, improper assembly, repairs other than by an authorized Vectra Service Center, or lack of maintenance are not covered. Use of a weight stack that is heavier than the heaviest stack that Vectra Fitness sells for use on the machine voids this warranty.

  • Page 5: Tools Required

    Tools Required: Assembly In Wrenches: one each 7/16”, 1/2”, and two each 9/16” end wrenches Hex keys: 7/32”, 5/16” Phillips screwdriver, hammer, pliers Select location for your machine. Set machine up in a well-lighted and well-ventilated area where you will enjoy exercising. Use rubber floor NOTE: Cable goes FIG.
  • Page 6 member (C) to press post (B) (3/8-16 X 1/2 hex screw, Qty: 4). To do this, first route the cable exiting the side of the press post (B) into the frame member, down its length, around the pulley (#11) and out. To do this it will FIG.
  • Page 7 Instructions FIG. 13 FIG. 9 LEFT CAM DETAIL Attach the two cushions to the bench Connect butterfly cable ends to butterfly cams (K &M). Use plastic (1/4-20 X 3/4 hex screws, Qty: 12). Tighten pad hole plugs in keyholes to prevent disconnection. FIG. 9 mounting screws firmly.
  • Page 8 removing the small bracket with the Now install the weight stack inside the FIG. 11 keyhole and then reattaching it once stack column (I). Ensure that the guide rods are the cable is inserted. Tighten this in place as mentioned in step 10 above: the bolt firmly.
