Page 1: User Guide

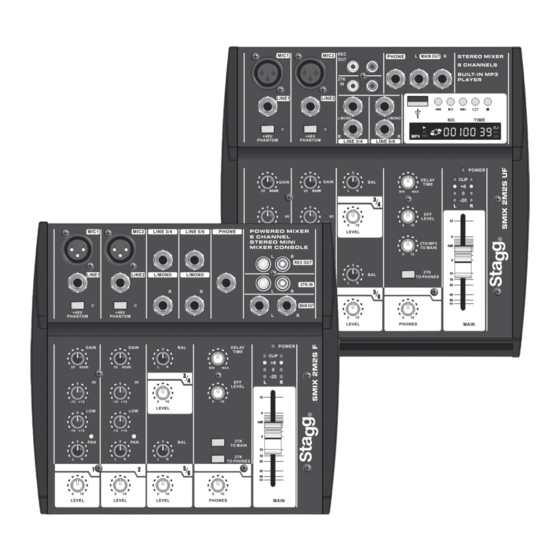

USER gUidE MULTi-CHANNEL STEREO MiXER S MiX 2M2S UF S MiX 2M2S F... - Page 2 FEATURES 2 stereo input channels and 2 mono input channels. 2-band frequency EQ for each input channel. Low-noise mic pre-amp on microphone inputs. Separate, independent channels for source input and recording output. Headphones monitor output. Peak indicator on each mono channel. +48V phantom power for condenser microphones.
- Page 3 CONTROL PANEL MONO CHANNEL SECTiON 1. MiC This is an XLR type connector for microphones. The input level ranges from -60 to -20dB. This connector can provide +48V phantom power for condenser microphones when the phantom power is switched on. 2.
- Page 4 STEREO CHANNEL SECTiON L/MONO - R These are two unbalanced 2-pole phone jacks for a stereo line input. The input level range is -10dB. If the source signal is mono, please use the left channel. 2. BAL (Balance control) This control determines the amount of the channel signal feeding the left and right mix buses.
- Page 5 MASTER CONTROL SECTiON 1. PHONES This is a 1/4” (Ø 6.3 mm) standard jack output to connect the headphones. 2. REC OUT This is a stereo RCA socket for connection to a recording device. 3. 2TK iN This RCA output receives stereo signals from external players. 4.
- Page 6 7A. 2TK TO MAiN (2M2S F model only) The input signal from the 2TK sockets can be fed to the main bus when this switch is pressed down. 7B. 2TK/MP3 TO MAiN (2M2S UF model only) For the 2M2S UF model, this control determines the signal level to be fed to the main bus from the USB port and the 2TK sockets.
- Page 7 SPECiFiCATiONS...
-
Page 8: Important Safety Instructions
iMPORTANT SAFETY iNSTRUCTiONS READ AND KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS. • If, after you have followed the instructions outlined above, this device fails to function, please contact your dealer. Under no circumstances should this device be opened. Leave all servicing to qualified personnel.
