Updated on 26/12/2008
GPS
Tracker
USER MANUAL
V5.0
GT60
Track Systems Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Track Systems GT60

Summary of Contents for Track Systems GT60

  • Page 1 Track Systems Ltd Tracker USER MANUAL V5.0 GT60 Updated on 26/12/2008...

  • Page 2: Table Of Contents

    5.1.2 Set Interval for automatic timed report 5.1.3 Stop automatic timed report 5.1.4 SOS/Call B/Call C 5.2 GPRS Setting by SMS 5.2.1 Set ID for GT60 5.2.2 Set APN 5.2.3 Set IP Address and Port 5.2.4 Set Time Interval for Sending GPRS Packet 5.2.5 Enable GPRS Function...

  • Page 3: Product Overview

    Read these simple guidelines. Not following them may be dangerous or illegal. Read the full user manual for more information. Switch on Safely – Do not switch on GT60 when wireless phone use is prohibited or when it may cause interference or danger.

  • Page 4: Getting Started

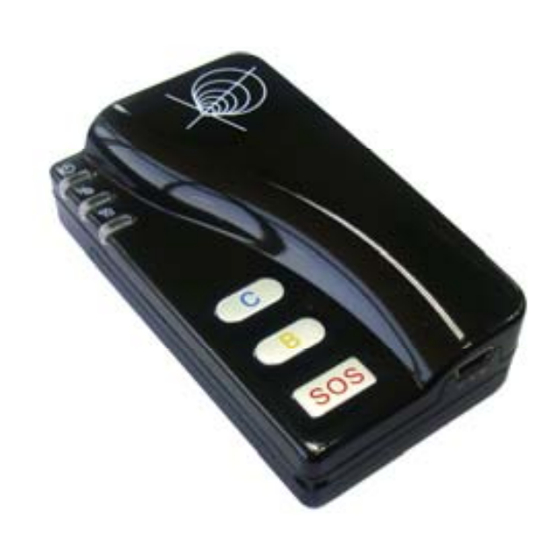

    - User Manual - Other document or software if required 4.2 Light and Button Functionality Your GT60 has four buttons and three LED lights with three different colors to indicate the status of the unit. Red LED - indicating power status...

  • Page 5: First Use

    - If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the GT60, please make sure the SIM installed supports displaying caller ID. Charge the battery for at least 3 hours in power-off status using the wall charger or car charger. Red light is on during charging and is off when charging is complete.

  • Page 6: Sms Command

    When you turn on the device, Check that the Red LED (power) on GT60 is flashing (on for 1 second and off for 2 seconds). Check that the Green LED (GSM) is flashing (on for 0.1 second and off for 2.9 seconds).

  • Page 7: Sos/Call B/Call C

    SMS sent: W000000,003,3,1, 123456789 SMS received: Set Tel Ok/3,1, 123456789 Meaning: When the SOS button is pressed, GT60 will send an SMS to telephone number “123456789” and also make a phone call to it. When a call is coming in, the green light is on. Press SOS button to receive the incoming call and then talk with the caller.

  • Page 8: Set Time Interval For Sending Gprs Packet

    Track Systems Ltd Command: W<password>,012,IP,PORT Example: W000000,012,202.116.11.12,8000 GT60 will then reply with an SMS (‘Set IP Ok /202.116.11.12,8000’) to confirm this setting. 5.2.4 Set Time Interval for Sending GPRS Packet Command: W<password>,014,time interval(in unit of 10 seconds) Example: W000000,014,00003 GT60 will send a GPRS package every 30 seconds 5.2.5 Enable GPRS Tracking Function...

  • Page 9: Troubleshooting

    Track Systems Ltd Google Earth will display the location for you. Example: When you receive: Latitude = 22 32 40.05N Longitude = 114 04 57.74E Type as the following picture shows: (Note: you should input the latitude and longitude as: 22 32 40.05N 114 04 57.74E) Now you can find the location of your tracker: Or you can start the Internet Explorer and connect to http://maps.google.com for displaying the location.
  • Page 10 Wrong password in your SMS or wrong SMS format Write correct password or SMS format The SIM in GT60 has run out of credit Replace or top up the SIM card Problem: Green LED is Flashing (on for 1 second and off for 2 seconds)
  • Page 11 Remarks: ****** is user’s password and the default password is 000000. Description Command Remarks Get current location W******,000 Get current location of GT60 Change user’s password W******,001,###### ****** is old password ###### is new password Set interval for automatic W******,002,XXX XXX is the interval in minute.
  • Page 12 4 - 5 rings. D=0, Turn off the function of sending an SMS when GT60 is turned on. D=1, Turn on the function of sending an SMS to SOS number when GT60 is turned on. E=0, reserved E=1, GT60 shuts down automatically when the power voltage lower than 3V.
  • Page 13 GSM enters Example: standby mode stop If XX=10, GT60 will enter power saving sending out message until it mode after it is immobile for 10 minutes. is activated by an SMS or an incoming call) phone...
  • Page 14 Track Systems Ltd message P=1, SOS button P=2, Call B P=3, Call C Char is the character in SOS message and max 32 characters version serial W******,600 To get version and serial number of number current firmware Get IMEI W******,601...
