Summary of Contents for TRENDnet TV-IP562WI

  • Page 1 Cover Page...

  • Page 2: Table Of Contents

    Step 4: Camera Name Settings ................28 Troubleshooting ................. 56 Step 5: Time Settings ....................28 Step 6: Setup Complete................... 29 System ........................30 Admin ........................30 Time and Date ......................32 Network ........................33 Network ........................33 © Copyright 2014 TRENDnet. All Rights Reserved.

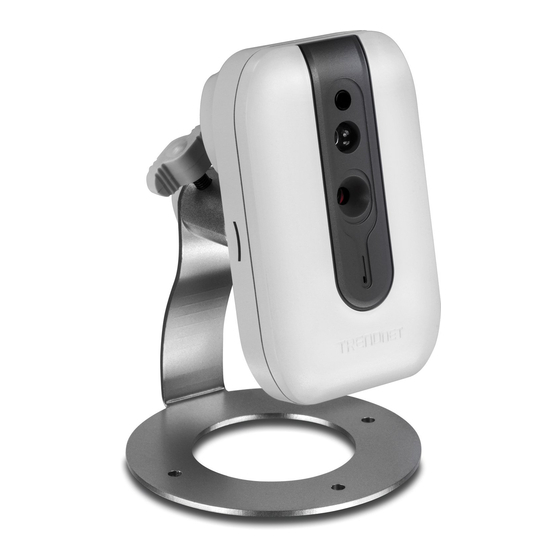

  • Page 3: Product Overview

    TRENDnet User’s Guide Product Overview Features The Megapixel Wireless Day/Night Network Camera, model TV-IP562WI, provides megapixel night vision in complete darkness for up to 5 meters (16 feet). A mounting bracket and Wireless N networking support a variety of installations. Each camera comes with a free Apple®...

  • Page 4: Product Hardware Features

    Reset Button – Use an item such as a paperclip to push and hold this button for 6 seconds and release to reset your camera to its factory defaults.  Network Port – Connect Network cables from the camera to your route or switch. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 5: Wall Mount Installation

    Autorun.exe to start installation wizard. For Mac users: Please click InstallWizard to start installation wizard. 1. Select your desired language for Installation. There are five languages available – English, French, German, Spanish, and Russian. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 6: Option A: Wired Connection By Using A Network Cable

    Click Next to continue, Back to go to the previous screen or Home to return to the main menu. The packaging also included a sticker with the same 1. Click Connect camera to your network using a network cable. Cick Next to information. continue. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 7 3. Connect one end of the network cable to your camera and the other end to not see any of your camera(s) in the wizard, click Retry to scan the camera your router. Click Next to continue. again. Click Next to continue. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 8 8 and 30 characters. Click Next to continue. Note: 8. The wizard will configure your parameters. If you enter the incorrect admin details, you will be prompted to change the configuration, as shown below. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 9 10. Scan the barcode to download the TRENDnetVIEW App for Apple iOS or User Interface for further configuration or click product image to create a Android™ devices. The app can also be found by searching TRENDnet from the shortcut. Click Next to continue. Apple App Store or Google Play™...

  • Page 10: Option B: Connect Camera To Wireless Network By Wps Button

    Select the type of authentication and encryption required by the access point and enter the Key required to connect. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 11 Model Name and MAC Address of the camera. If you do not see any of your camera(s) in the wizard, click Retry to scan the camera again. Click Next to continue. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 12 8 and 30 characters. Click Next to continue. Note: 7. The wizard will configure your parameters. If you enter the incorrect admin details, you will be prompted to change the configuration, as shown below. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 13 9. Scan the barcode to download the TRENDnetVIEW App for Apple iOS or User Interface for further configuration or click product image to create a Android™ devices. The app can also be found by searching TRENDnet from the shortcut. Click Next to continue. Apple App Store or Google Play™...

  • Page 14: Option C: Manually Connect Camera To Wireless Network

    Main Menu. 2. Follow the instructions in the next screen to Power up the Camera. Click Next to continue. 4. The wizard will now search the network for your camera. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 15 Retry to scan the camera again. Click Next to continue. Note: If you enter the incorrect admin details, you will be prompted to change the configuration, as shown below. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 16 Rescan link to scan the network again. 7. The wizard will now configure your parameters. 9. The wizard will search for wireless Access Points. Click the Rescan button if you do not find your AP. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 17 12. The initial setup is complete. Click the link to navigate to the camera’s Web User Interface for further configuration or click product image to create a continue. shortcut. Click Next to continue. 11. The camera will connect to the wireless network. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 18: Mobile Apps

    The app will copy the QR link and provides a HTML link to the TRENDnetVIEW app. You will be directed to the Google Play™ Storefront to download the app. Download the app, install it and use the app on your mobile device to view the TRENDnet camera. Android is a trademark of Google Inc.

  • Page 19: Setup Wizard (Finding Ip Address Of The Cameras)

    SetupWizard folder and run SetupWizardSetup_1.2.3.4804.msi to begin the installation wizard. 2. The following screen will show up. Click Next and following the screen to finish the installation. 3. Click Close to finish the installation. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 20 TV-IP562WI TRENDnet User’s Guide 4. Click Start > Programs > TRENDnet > SetupWizard > SetupWizard. The 7. Login to your camera by entering the ID and Password. By default, both the ID TRENDnet Setup Wizard appears. and Password are set to admin. Click Next to continue.
  • Page 21 ISP requires a PPPoE authentication to the Internet. DHCP: Select this option if your camera is connected to a router and DHCP is enabled. Fixed IP: Select this option if your wish to connected the camera via a fixed IP. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 22 15. Select Wired Mode or Wireless Mode to connect your camera now. continue. 16. Disconnect Network cable if you continuing with wireless connection. 14. After the Setup Wizard configures the camera, the wizard starts to setup process. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 23: Web Browser Management

    The camera’s built-in Web configuration utility is designed to allow you to easily access and configure your TV-IP562WI camera. Open a web browser such as Internet Explorer® and enter the IP address of your camera (through the setup wizard utility software on the CD).
  • Page 24 After you have logged in, you will need to install the required plug-in. Click the link below the camera viewing window to install the plug-in. After the add-on was successfully installed, the Live View video feed will be displayed. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 25: Main Web User Interface

    After successfully logging into the Web User Interface of the camera, the following window will appear. The Camera stream control application will be installed. Note: Make sure all Internet browsers are closed during this installation. Click Close to finish the installation. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 26 Click this icon to manually toggle the video feed between the Day and the Night Modes. Click one of these options to digitally zoom the video feed by 1, 2 or 4 times. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 27: Setup

    Detection, and Sound Detection, within each category, there are multiple pages will be followed using this wizard. Click Next to continue. available that are used to configure different types of features available on this camera. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 28: Step 1: Lan Settings

    Under Host Name enter the name the DDNS service provided. Enter a Username and Password, repeat the password and finally enter the Timeout value. Timeout states the time DDNS is updated. Click Next to continue. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 29: Step 4: Camera Name Settings

    From the drop-down menu, select a Time Zone. To enable daylight saving time, click the Time from the drop-down menus provided. checkbox next to Enable Daylight Saving. Or Select the Keep Current Date and Time or Synchronize with Network Time Protocol server. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 30: Step 6: Setup Complete

    After the restart, the Web UI will direct back to the start of the wizard. local network. Select the Setup Date and Time Manually option to manual configure the date and time settings for this camera. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 31: System

    In the New Password and Confirm New Password fields, enter the new login password that will be used for this camera. Click the Add button to add the new user account created. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 32 HTTP Authentication option to enable HTTP authentication. Tick the Snapshot URL Authentication option to enable snapshot authentication of the current video stream using the hyperlink. Click the Save button to save the modifications made. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 33: Time And Date

    Click the Apply button to apply the modifications made. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 34: Network

    This camera can connect to the Internet directly through the means of a PPPoE connection. Tick the PPPoE option to enable this feature. Enter the PPPoE Internet connection’s User Name and Password in the spaces provided. This information can be acquired from your ISP. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 35: Wireless Setup

    In the UPnP part, tick the UPnP option to enable the UPnP feature on this camera. Tick the UPnP Port Forward option to enable the UPnP port forwarding feature. Enter the External HTTP and External RSTP port number in the respective spaces provided. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 36: Dynamic Dns

    Server Address field. Enter the Host Name, User Name, Password, and Timeout information in the spaces provided. Click the Apply button to apply the modifications made. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 37: Audio/Video

    When users choose the CBR encode method, the camera selects the bitrate as the first priority. The TV-IP562WI will adjust the image quality to fit the bitrate. When the user chooses the Quality encode method, the camera select the bitrate to fit the quality Select the Encode Mode option from the drop-down list.
  • Page 38 When selecting the Schedule option, the camera will toggle between day and night modes depending on the time schedule configured. After selecting the Auto option as the Day/Night Mode, we can configure the following. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 39: Image Setup

    (1/15 second, 1/10 second, 1/7.5 second or 1/3.75 second) from the drop-down list. Click the Reset to Default button to return the image settings to their default values. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 40: Action

    Tick the Enable option to enable the recording feature. Select the Trigger by option from the drop-down list. Options to choose from are Motion, Schedule, Always, and Sound. The parameters available for configuration will change depending on the selections made. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 41 Selecting Always, will tell the camera to record always. the space provided. The interval value means that a snapshot will be taken at every interval configured. Only Profile 3 can be used for this selection. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 42 Samba server account and then to record over the oldest recordings. on the micro SD card and then to record over the oldest recordings found on the card. Click the Apply button to apply the modifications made. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 43 1/2/4 supported video clip, the activated using 6 supported supported available video snapshots only. profile options are 1/2/4. Real * For snapshot, the Time default video profile option is profile 3. Target E-Mail © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 44: Video Clip

    Selecting Sound, will tell the camera only to record when sound is detected. Tick the Schedule option to only record video when sound is detected at specific times of the week. Tick the Day and enter the Start and End times. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 45 Port number, User Name, Password, Path, Filename Prefix, and Interval information in the spaces provided. Tick the Passive Mode option to enable the passive mode feature. Click the Test button to test the FTP connection. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 46: Snapshot

    Selecting Sound, will tell the camera only to take snapshots when sound is detected. Tick the Schedule option to only take snapshots when sound is detected at specific times of the week. Tick the Day and enter the Start and End times. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 47 Enter the FTP Server address, Port number, User Name, Password, Path, Filename Prefix, and Interval information in the spaces provided. Tick the Passive Mode option to enable the passive mode feature. Click the Test button to test the FTP connection. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 48: Sd Management

    Select the SSL-TLS option that will be used. Options to choose from are None, SD card and cannot be recovered. SSL-TLS, and STARTTLS. Click the Test button to test the E-mail connection. Click the Apply button to apply the modifications made. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 49: Motion Detection

    Enter the Sensitivity value in the space provided. Click the Clear button to completely remove all the red blocks from the video feed. Click the Apply button to apply the modifications made. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 50: Tools

    Click the Reset button to restore the camera to its factory default settings. Note: All configurations that were done on this camera will be lost and the camera will return to its factory default configuration. Click the Reboot button to simply reboot the camera. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 51: Firmware Update

    The camera will then use this firmware file to upgrade the firmware of the camera. Note: To find the latest firmware available for this camera, visit the TRENDnet website. Device Info In the Information section we can view more detailed information about the camera’s configuration.

  • Page 52: Log

    Click the Clear button to remove all the log entries from the table. Click the Download button export the log table to a text file and then save it to the local computer. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 53: Trendnetview Pro Software

    Windows, launch the TRENDnetVIEW Pro 2.0 installation software on the installation CD-ROM and follow the setup instructions. Once the software is installed, the TRENDnet View Pro 2.0 camera monitoring utility is ready for use. Add up to 32 network cameras to monitor using the software. Additional software, TRENDnet IPView Please view the TRENDnetVIEW Pro User Guide for more details on the software.

  • Page 54: How To Setup/Access The Camera Remotely

    Server Address field. 4. Open the router’s Web configuration page. (In the example, TRENDnet’s TEW-651BR Wireless N Home Router is used) 2. Enter Dynamic DNS’ Host Name, User Name and Password. Re-enter the password to confirm it.
  • Page 55 Some router might use Port Forwarding or Special applications for this function. The setup steps should be very similar. 6. Open another web browser and enter your DDNS domain and camera’s port number. http://yourDomainName:PortNumber © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 56 6. The camera login page will appear. Public Port: The port used on remote side to access to your Camera. LAN Server: The local IP address of your Camera. Click Add to add the application. © Copyright 2014 TRENDnet. All Rights Reserved.

  • Page 57: Troubleshooting

    Reposition the Network Camera into a more shaded area immediately as prolonged exposure to bright lights will damage the CMOS sensor. © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 58 This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 59 Note: This country code selection is for non-US models only and is not available to all US models. Per FCC regulation, all WiFi products marketed in the US must be fixed to US operation channels only. 以下警語適用台灣地區 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得 擅自變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時， 應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作 業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射 性電機設備之干擾 © Copyright 2014 TRENDnet. All Rights Reserved.
  • Page 60 TV-IP562WI TRENDnet User’s Guide noteikumiem. Česky TRENDnet tímto prohlašuje, že tento TV-IP562WI je ve shodě se [Czech] základními požadavky a dalšími příslušnými ustanoveními Lietuvių Šiuo TRENDnet deklaruoja, kad šis TV-IP562WI atitinka esminius směrnice 1999/5/ES. [Lithuanian] reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
  • Page 61 Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS http://www.gnu.org/licenses/gpl.txt...
