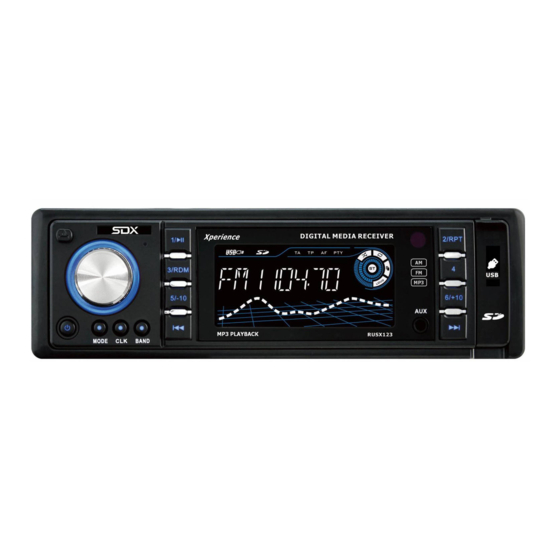

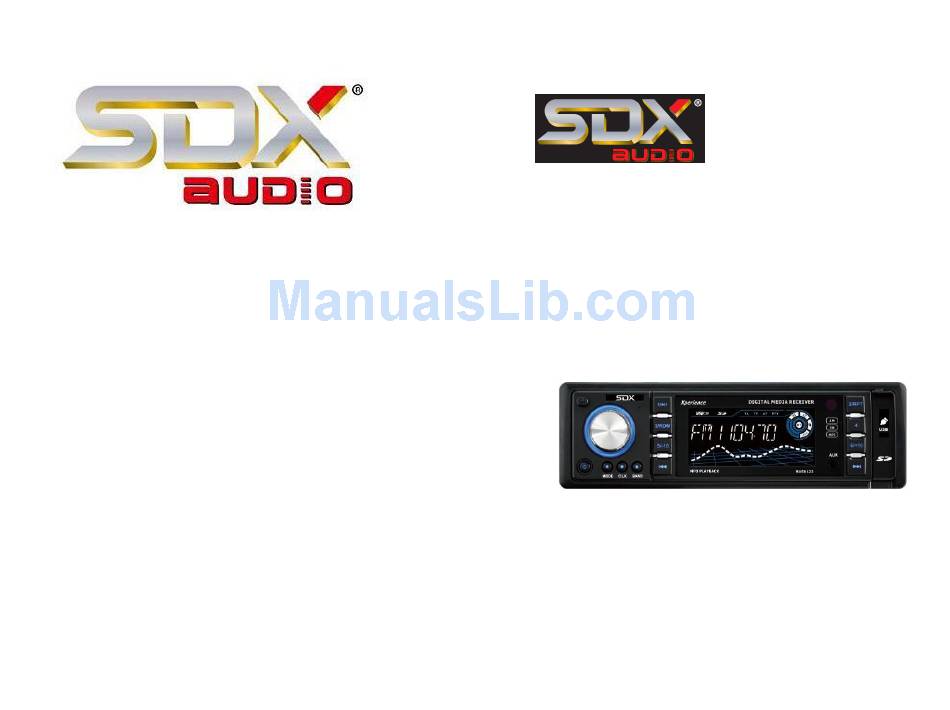

- Page 1 Car Stereo Receiver and Audio Player USER MANUAL AND INSTALLATION INSTRUCTIONS Model: RUSX123...
-
Page 2: Main Function
CAUTION Main Function: This unit is designed to operate on 12-volts DC, negative • AM/FM-MPX Electronic Tuning Radio ground electrical system only, do not attempt to install this unit • Frequency Range: AM 530 – 1710 kHz; FM 87.5 – 107.9 MHz in a vehicle having a positive ground system. -
Page 3: Installation
3. Disconnect all the wires of the unit as well as the antenna plug. Installation Precautions • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where, it would be subject to dust, dirt or excessive vibration. -
Page 4: Specification
1. POWER: Switch on/off. Specification: 2. CLK: Clock button, press once then press again and hold it. Frequency Scope………………………………. 87.5MHz -107.9MHz Once the time starts to flash you can use the volume knob to adjust it. Sensitivity…………………………………………………….. <26dB : In radio mode to scan automatically(press). To find a Frequency scope………………………………………….530-1710kHz station manually(press and hold). -
Page 5: Electrical Connection
Before starting wiring connections, disconnect the power supply by removing the fuse box. RUSX123 Wiring Diagram Connect the power wire to one of the extra terminals of the fuse box. Connect the black ground wire to a metal part of the car. It is important to make good contact. -
Page 6: Troubleshooting
Change the fuse TROUBLESHOOTING Please make sure the amperage matches will all other fuses before changing them. If the fuse is burnt check the power supply first and then Before going through the check list, check wiring connection, if any of the change the fuse.
