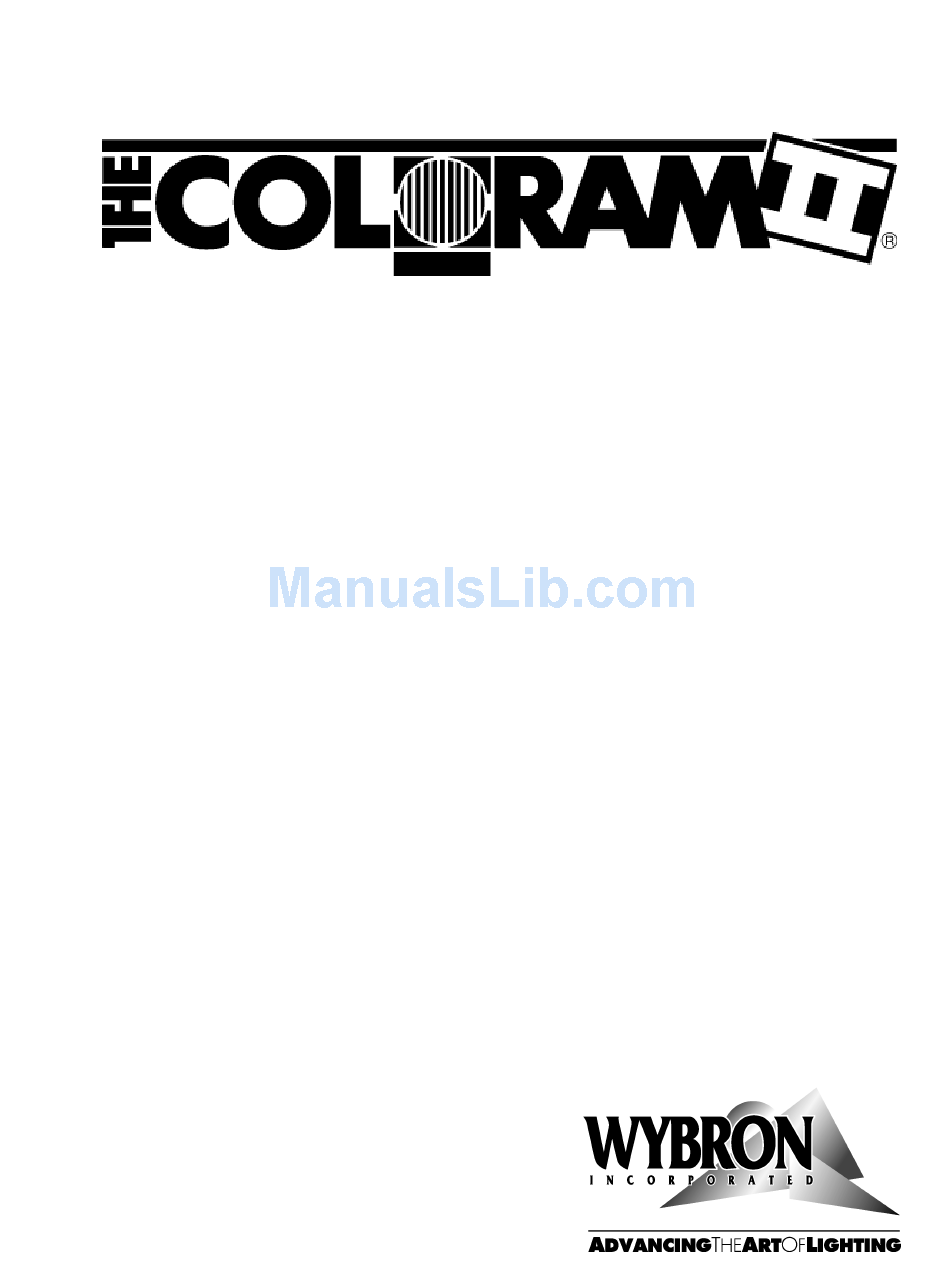

- Page 1 Color Changer User Manual...
-
Page 2: Table Of Contents
15-inch (5K) Coloram II Color Changer 16090 Large Format Coloram II Color Changer 16080 Eight Light Coloram II Color Changer 16100 Thomas 9 Light Coloram II Color Changer 7080 7.5-inch Aquaram Color Changer 5000 Large Format Aquaram Color Changer Software versions: CR1.0, LF1.0 and AR1.0... -
Page 3: Safety Information
Coloram II Color Changer. There is a potential risk of injury to persons if the product is not used as instructed. The Coloram II is not intended for residential use. WARNING: When using electrical appliances, use basic precautions, including: ... -
Page 4: Introduction
Introduction The Coloram II System is a scrolling color changer and power supply in a complete range of models offering ease of setup and use. Its variable color capacity and DMX compatibility affords the designer economy and versatility, particularly when budget and space are limited. -
Page 5: The Coloram Ii System
The power supply sends both power and control signal on a single cable eliminating the need for a separate power cable for each color changer. The Coloram II System also allows you to control the color changer fan speed via an additional DMX channel on the lighting console. -
Page 6: Quick-Start
Use the SETUP menu for the following: Set the starting channel to 1. Set the mode to CR2. Send DMX levels The Coloram II color changer will respond to DMX channel 1. Vary the DMX level to move the gel string. -
Page 7: Using The Coloram Ii Color Changer
Using The Coloram II Color Changer The Coloram II Color Changer sets its gel string position according to the DMX512 level it receives from the control console. As all Coloram II Color Changers will accommodate variable length gel strings, the level settings which correspond with each frame position will vary depending on the number of frames in the gel string. -
Page 8: Gelstring
Note: Refer to the Specifications section of this manual for the maximum number of gel string frames each color changer will hold. Gelstring The gelstring is a series of precisely cut, colored gel frames joined together, side by side, to create a sequence of colors. Two additional gels at each end of the gelstring are called the leader and the trailer. -
Page 9: Power Supply
4 AWG conductors and a 22 AWG twisted, shielded pair. Note: The cable used in the Coloram II System is the same cable which is used in the Forerunner System and may be referred to as either Coloram II cable or Forerunner cable. - Page 10 The power supply can also be mounted into a 19" rack using the optional Coloram II Power Supply rack mount kit. The rack mount kit will accommodate two Coloram II Power Supplies side by side.
- Page 11 Set the power supply/color changer channels Each color changer is assigned a DMX channel to which it will respond from the lighting console. Valid DMX addresses are 001 - 512. First, set the first channel for the block of DMX channels chosen for the power supply -- do this on the power supply.
- Page 12 Example: DMX channel (221) = Color Changer channel (20) + Power Supply starting channel (202) -1 Note: For the 24-Way Power Supply, the Coloram II Color Changers can only be addressed to the first 24 channels of the 48 channel block of the power supply.
-
Page 13: Head-Feet Restrictions
Operating Mode DIP Switches 7110 CHANNEL SELECT Rotary Switch LED Indicator Display Figure 9 Connect and set the DMX512 source Connect the DMX512 signal source to the DMX input connector on the front of the power supply using standard DMX cable. Valid DMX signal will be indicated by the words "DMX OK"... - Page 14 4th Coloram 160' 520 "head feet" The maximum HEAD-FEET for each of the Coloram II Color Changers is as follows: (If a daisy chain consists of different models, use the model with the least amount of "head feet" for the calculation).
-
Page 15: Mounting And Installation Accessories
Mounting and Installation Accessories The components of your Coloram II System may require the installation of additional mounting accessories or the replacement of others. Some of these accessories, such as the power supply hanger brackets and your choice of one color changer mounting plate, are supplied, while other accessories, such as the power supply rack mount kit and additional mounting plates, may need to be purchased separately. -
Page 16: Replacing A Gelstring
At some point in time you may find that you need to replace the gelstring in your color changer, either because the old one wears out or because you want a different selection of colors. With all the Coloram II Color Changers this is quick and easy. Caution: Operating the Coloram II Color Changers with damaged gelstrings will damage the color changers. - Page 17 Install the new gelstring Note: Use gaffer's tape to attach the gelstrings to the rollers. Do not use duct tape or masking tape. Put a strip of gaffer's tape on the edge of the gelstring trailer. Gaffer’s Last Tape Frame Holding the trailer, let the rest of the roll hang off the right side of the color changer.
-
Page 18: Equipment Compatibility
Equipment Compatibility The following is a chart of compatibility and capacity of the various models of Coloram II Power Supply and the companion components. Max # of Power Supply Model Output Channels Max # of Max # of Max # of... -
Page 19: Specifications
15010 -15-inch (5K) Coloram II Color Changer – 15.06 lbs./6.83 kg 16090 - Large Format Coloram II Color Changer – 17.92 lbs./8.13 kg 16080 - Eight Light Coloram II Color Changer – 15.62 lbs./6.92 kg 16100 - Thomas 9 Light Coloram II Color Changer – 18.5 lbs./8.39 kg... - Page 20 Full size ellipsoidals 10100 – 10-inch Coloram II Color Changer Source Four 5 degree Source Four 10 degree Various 2K 15010 – 15-inch Coloram II Color Changer Various 3K Various 4K Various 5K 4-light 16080 - 8 Light Coloram II Color Changer...
- Page 21 Various 8-light 16090 - Large Format Coloram II Color Changer Various 5K 9-light Various cyc lights 16100 - Thomas 9 Light Coloram II Color Changer Thomas 9-light 5000 - Large Format Aquaram Color Changer Various 5K Phillips Arena Vision The Coloram II Gelstring Information...
-
Page 22: Parts List
Frame width: 24" Frame height: 18 5/8" Leader/Trailer: 9.5" Parts list To order any of the following items, contact your authorized WYBRON dealer. The Coloram II Color Changers and Power Supplies 4520 ..........4-inch Coloram II 7110 ..........7.5-inch Coloram II 10100 .......... - Page 23 SCRWC252075 ........ Wing screw for Power Supply hanger ............bracket to pipe SCRSC2520037 ....... Socket cap screw for hanger bracket to ............Power Supply The Coloram II System cable 7042-3 ..........3' power/signal cable 7042-5 ..........5' power/signal cable 7042-10 ..........10' power/signal cable 7042-15 ..........
-
Page 24: Warranty Information
Warranty information WYBRON, INC. warrants to the original owner or retail customer that for a period of one year from date of delivery of a portable system or energization of a permanently installed system (up to a maximum of 18 months from delivery) its products will be free from defects in materials and workmanship under normal use and service. -
Page 25: Gelstring Order Form
Gelstring order form Any combination of color filter manufacturer's gels can be combined to create a custom Coloram II gelstring. Please specify using the following format. Specify: (G) GAM, (L) Lee, (R) Rosco with the color number and the color name.
