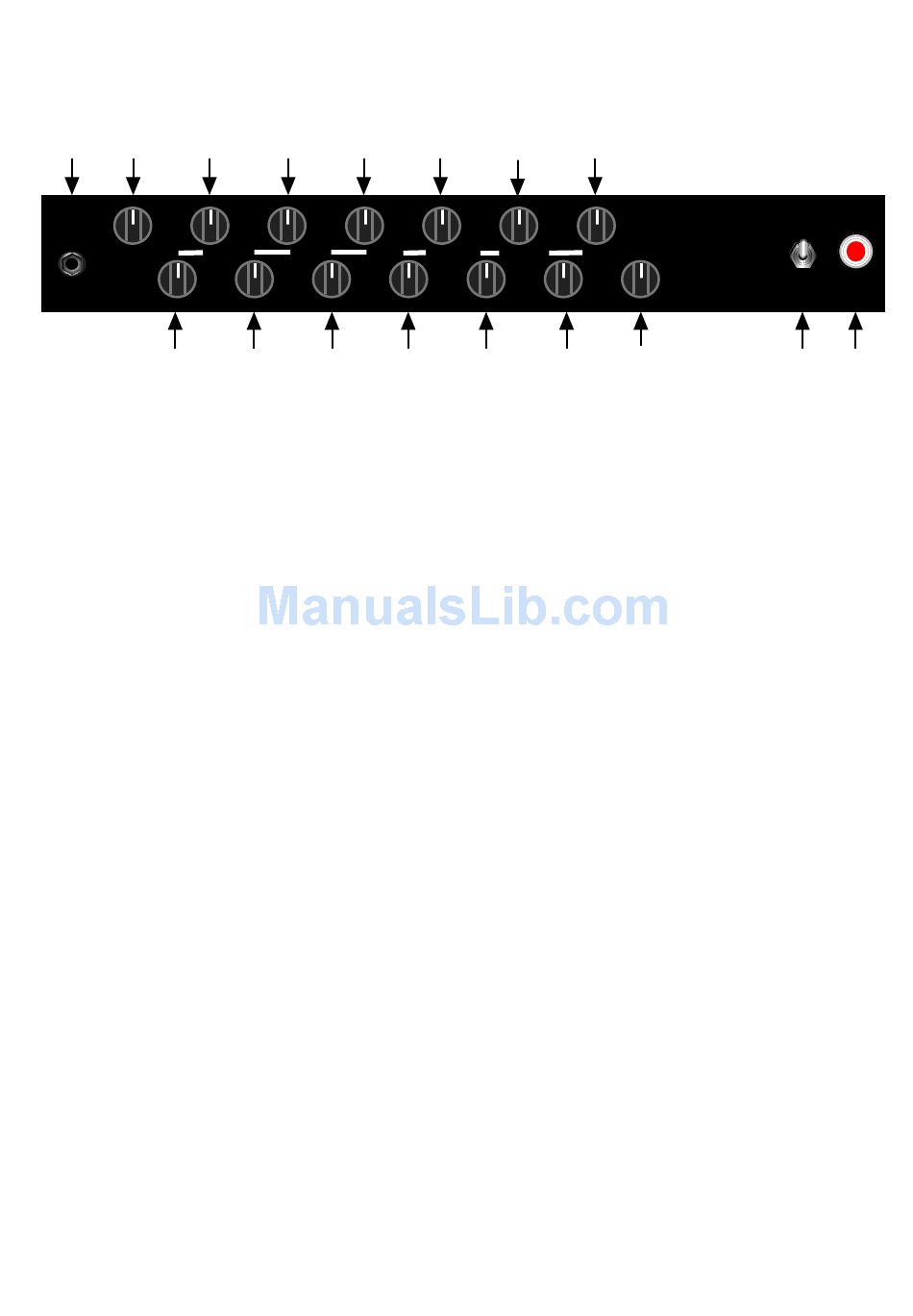

Front Panel Functions - K&M Analog Designs Two-Rock Onyx Owner's Manual

1 2 3
INPUT
MIDDLE
TREBLE
LEAD
9
1. INPUT JACK- High impedance input to the amplifier. Plug in your
instrument here.
THERE ARE 2 ROWS OF CONTROLS. THE TOP ROW AFFECTS ONLY THE CLEAN
CHANNEL. THE BOTTOM ROW IS IDENTICAL TO THE TOP ROW. THE BOTTOM ROW
AFFECTS ONLY THE LEAD CHANNEL.
2/9. TREBLE CONTROL- Adjusts the high-frequency response. In the full
counter-clockwise position, high frequencies are bypassed to ground. In the
full clockwise position, high frequencies are allowed to pass to the next gain
stage.
3/10. MIDDLE CONTROL- Adjusts the mid-range response. In the full counter-
clockwise position, the tone will be somewhat "scooped" of mid-range
response, emphasizing the highs and lows. In the full clockwise position,
mid-range frequencies are allowed to pass to the next gain stage.
4/11. BASS CONTROL- Adjusts the bass response. In the full counter-clockwise
position, low frequencies are cut. In addition, the response of the treble and
mid-range controls is greatly reduced. In the full clockwise position, low
frequencies are allowed to pass to the next gain stage.
5/12. GAIN- ADJUSTS- the overall gain of the channel selected. Start with this
control in the 12 o'clock position on the clean channel(5), and 8 or 9 o' clock
on the lead channel(12).
6/13. MASTER - Adjusts the output level of clean channel(6) and the lead
channel (13 )

FRONT PANEL FUNCTIONS

4 5
BASS GAIN
10 11 12
6 7 8
PRESENCE
MASTER
REVERB
13 14
Page 2
ON
Two-Rock
Onyx
STANDBY
15 16 17
