Rear Panel Functions - K&M Analog Designs Two-Rock Ruby Owner's Manual

1 2 3
FUSE POWER
A/C 120 VOLTS 2.5 AMP
60 CYCLES SLO-BLO
1. A/C INPUT- Connects the amplifier to A/C power via the power cord
supplied. Unless otherwise specified, your amplifier is designed to operate
on 120 volts A/C, 60 cycles.
2. FUSE- 3 AG Type, slow blow fuse. Refer to the legend below the fuse holder
for the proper fuse rating for your amplifier. (50 watt-2.5 amp /100 watt-
3.5 amp)
3. POWER SWITCH- Turns the power on.
4. INPEADANCE SELECTORI
5. SPEAKER OUTPUT JACKS- There are 2 speaker output jacks
NEVER OPERATE YOUR AMPLIFIER WITHOUT A PROPER SPEAKER
LOAD CONNECTED. Be sure to match the impedance of your cabinet with
the impedance (output) of the amplifier.
6 EFFECTS SEND- Use this jack to send the amplifiers signal to outboard effects.
7. EFFECTS RETURN- Use this jack to connect the output of your effects to the
amplifier.

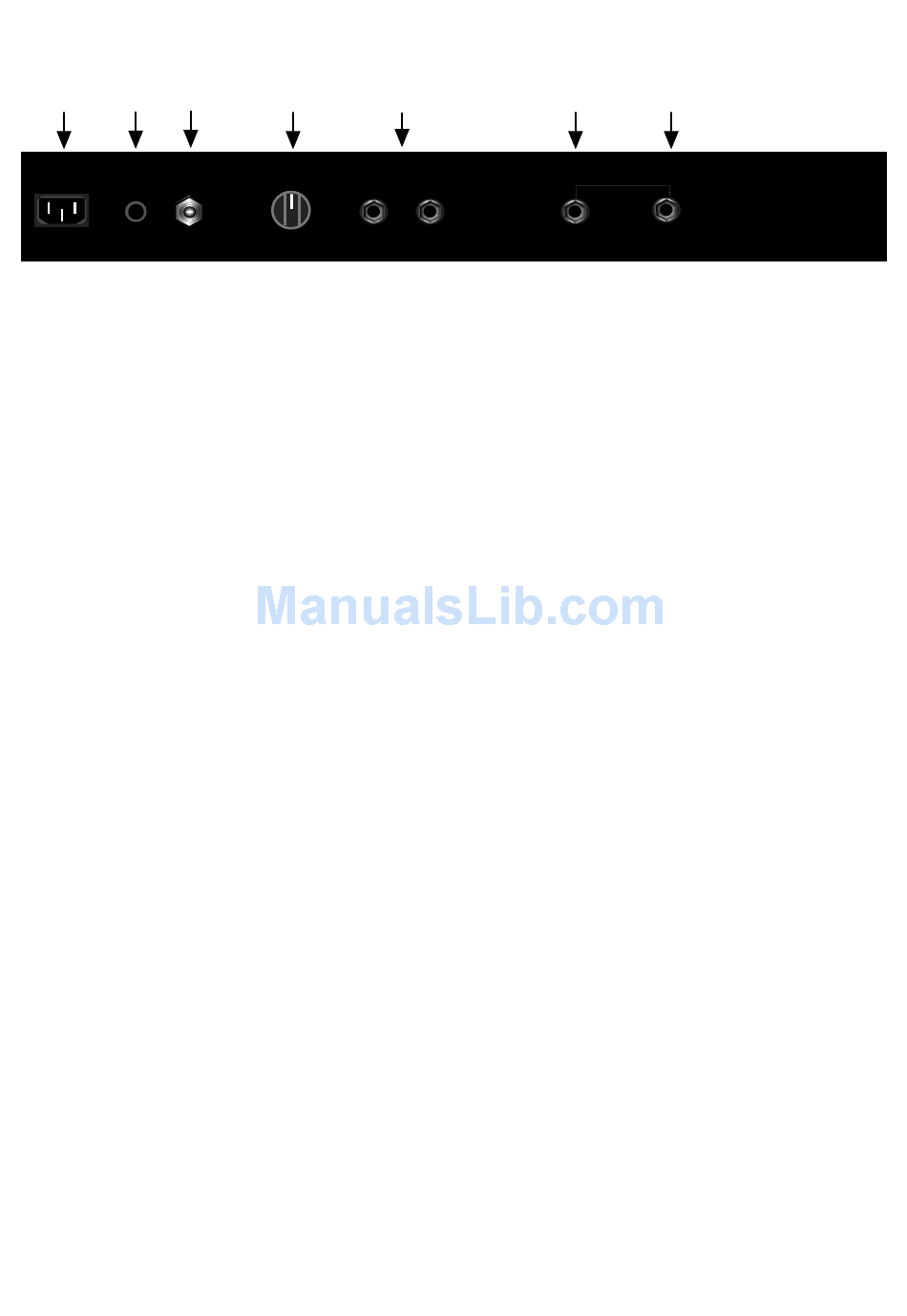

REAR PANEL FUNCTIONS

5
4
SPEAKER OUTPUTS
4 8 16
Page 4
6 7
EFFECTS LOOP
Manufactured by:
K&M Analog Designs
S/N
SEND
RETURN
Two-Rock, CA
MADE IN U.S.A.
Two-Rock, CA
