Rear Panel Functions

4 8

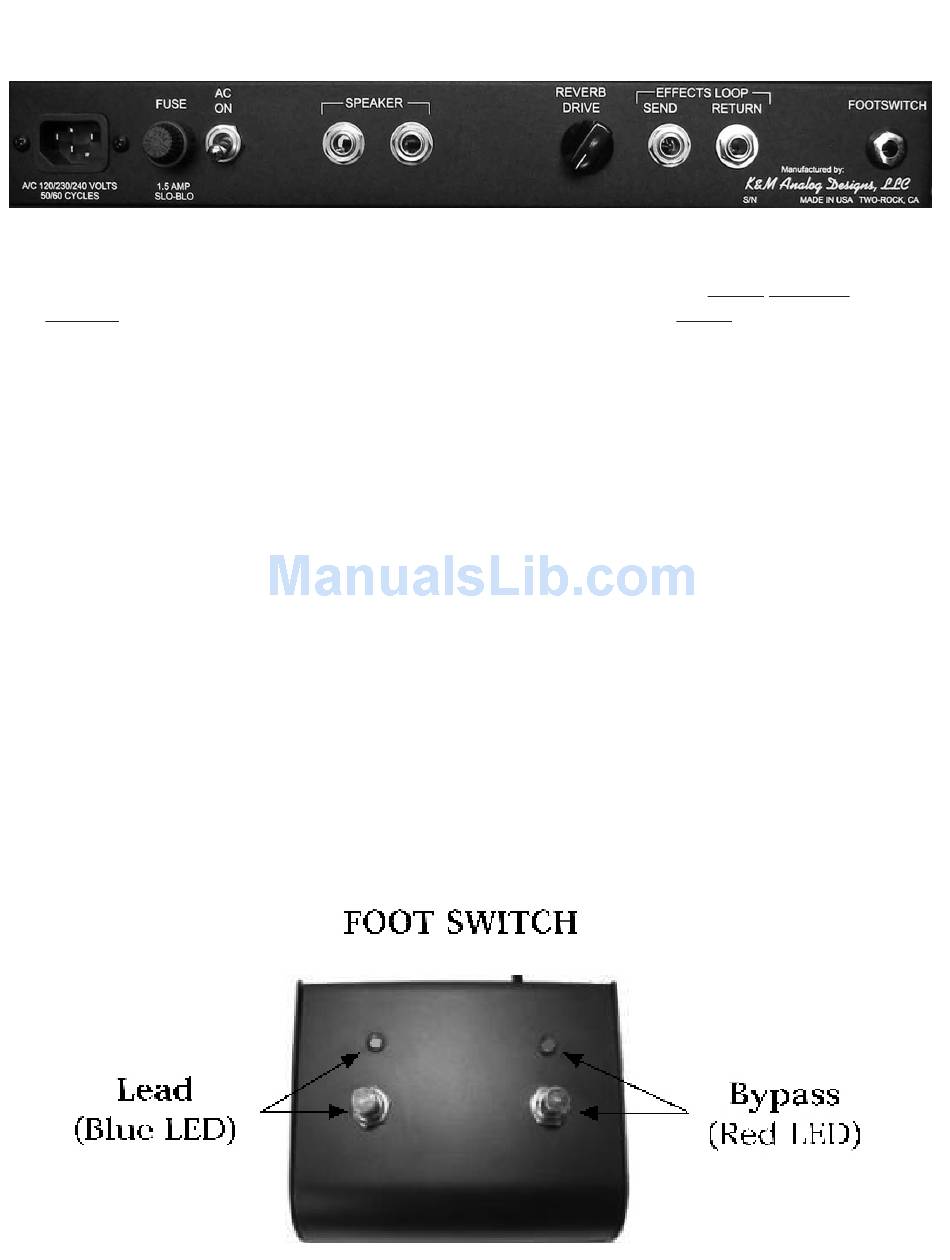

A/C Input- Connects the amplifier to A/C power via the power cord supplied. Unless otherwise
specified, your amplifier is designed to operate on 120 volts A/C, 60 cycles, ONLY!
Fuse- See Fuse Chart
Power Switch- Turns power on.
Speaker Output Jacks- There are 2 speaker output jacks. Nominal impedance is 4-8 ohms. NEVER
OPERATE YOUR AMPLIFIER WITHOUT A PROPER SPEAKER LOAD CONNECTED. Be sure to
match the impedance of your cabinet with the impedance (output) of the amplifier.
Reverb Drive- The reverb drive control adjusts the signal level applied to the reverb unit. Low set-
tings will provide a smooth, short decay effect, simulating small to medium rooms. Higher settings
will increase the decay time. At maximum clockwise rotation, an extremely wet reverb effect can be
created. This control is used in conjunction with the front panel (return) control (see FRONT PANEL
FUNCTIONS, previous page). The reverb effect is defeated with this control in the full counterclock-
wise position.
Effects Send- Use this jack to send the amplifiers signal to outboard effects.
Effects Return- Use this jack to connect the output of your effects to the amplifier.
Footswitch Jack- The footswitch connects here. The clean/lead and tone bypass functions can only be
activated via the footswitch.
