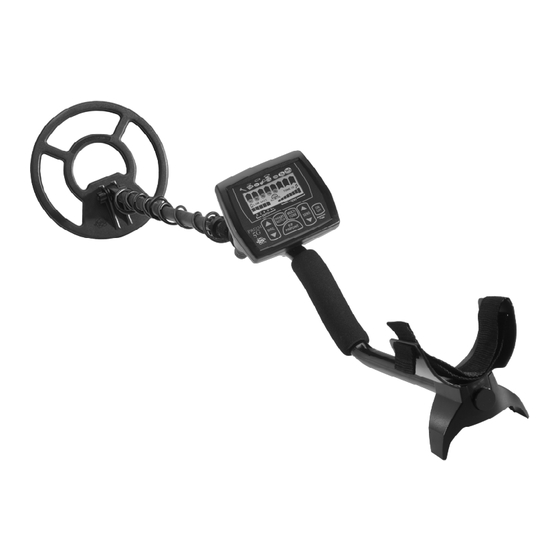

Whites metal detector

Advertisement

White's Electronics, Inc.
1011 Pleasant Valley Road
Sweet Home, Oregon 97386
Prizm 5G
User Guide
A
ssembly
1) Remove all parts from shipping carton (see cover).
2) Use nonmetallic washers (between round search coil and clevis
fiber rod) and fiber bolt and thumbnut to secure search coil to fiber
rod.
3) Insert fiber rod into curved rod, line up buttons into one of
adjustment holes.
4) Unravel search coil cable and wind around rods (first revolu-
tion over top of rod). Plug search coil cable into control box, screw
"finger-tight" to secure.
5) Grip by handle, with arm in elbow cup and sweep search coil
over floor. If necessary, for comfort, compress buttons and re-
position fiber rod. If necessary, Elbow Cup is also adjustable for
comfort.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prizm 5G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whites Prizm 5G

  • Page 1 White’s Electronics, Inc. 1011 Pleasant Valley Road Sweet Home, Oregon 97386 Prizm 5G ™ User Guide ssembly 1) Remove all parts from shipping carton (see cover). 2) Use nonmetallic washers (between round search coil and clevis fiber rod) and fiber bolt and thumbnut to secure search coil to fiber rod.
  • Page 2 eArching 1) Open battery door by pressing elongated button on back of display and flipping open door. Install two nine volt alkaline batteries (according to +/- position shown inside door). Close door. 2) Press ON/OFF button. Sweep search coil over ground evenly (near to or touching ground surface) keeping close to the ground throughout each sweep and overlapping each pass as if mopping a floor.
  • Page 3 ontrols highest level that behaves predictably, lower levels for areas unstable (falsely signals without the presence of metal). 3) P/P activates pinpoint mode for better item location. Press a second time prior to continued searching. 4) DISC (discrimination) selects the acceptance or rejection (regarding audio beep) of each category on the display from IRON to C1 (zinc cent).
  • Page 4 ArrAnty ® If within two years (24 months) from the original date of purchase, your White’s detector fails due to defects in either material or workmanship, White’s will repair or replace at its option, all necessary parts without charge for parts or labor. Simply return the complete detector to the Dealer where you purchased it, or to your near- est Authorized Service Center.
