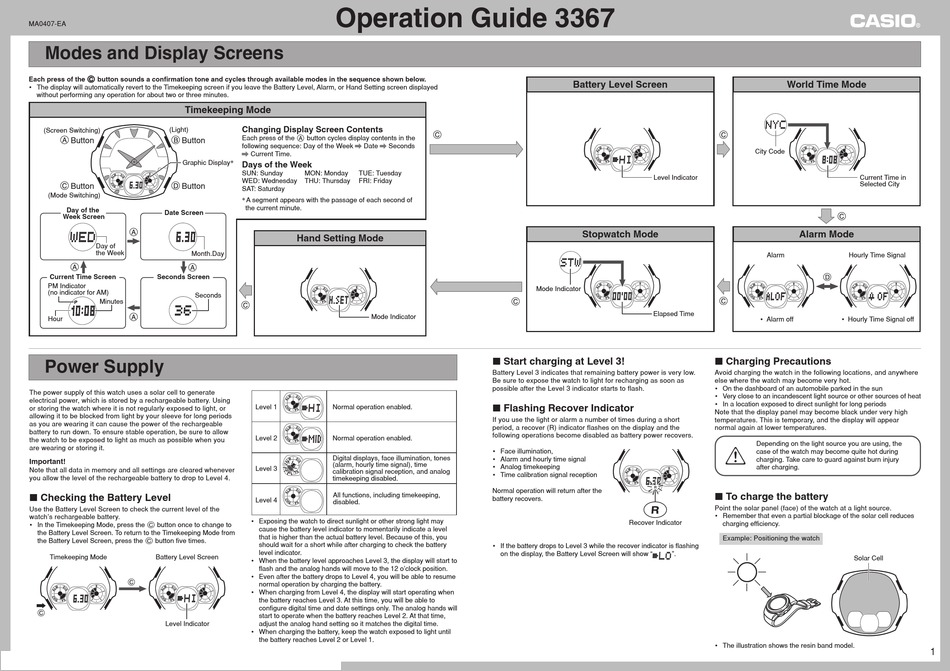

Casio 3367 Operation Manual

MA0407-EA
Modes and Display Screens
C C C button sounds a confirmation tone and cycles through available modes in the sequence shown below.
Each press of the C C
• The display will automatically revert to the Timekeeping screen if you leave the Battery Level, Alarm, or Hand Setting screen displayed
without performing any operation for about two or three minutes.
Timekeeping Mode
(Light)
(Screen Switching)
Button Button
Graphic Display*
Button Button
(Mode Switching)
Day of the
Date Screen
Week Screen
Day of
the Week
Month.Day
Current Time Screen Seconds Screen
PM Indicator
(no indicator for AM)
Seconds
Minutes
Hour

Power Supply

The power supply of this watch uses a solar cell to generate
electrical power, which is stored by a rechargeable battery. Using
or storing the watch where it is not regularly exposed to light, or
allowing it to be blocked from light by your sleeve for long periods
as you are wearing it can cause the power of the rechargeable
battery to run down. To ensure stable operation, be sure to allow
the watch to be exposed to light as much as possible when you
are wearing or storing it.
Important!
Note that all data in memory and all settings are cleared whenever
you allow the level of the rechargeable battery to drop to Level 4.
❚ Checking the Battery Level
Use the Battery Level Screen to check the current level of the
watch's rechargeable battery.
• In the Timekeeping Mode, press the C button once to change to
the Battery Level Screen. To return to the Timekeeping Mode from
the Battery Level Screen, press the C button five times.
Timekeeping Mode Battery Level Screen
Level Indicator
Operation Guide 3367
Changing Display Screen Contents
Each press of the button cycles display contents in the
following sequence: Day of the Week \ Date \ Seconds
\ Current Time.
Days of the Week
SUN: Sunday MON: Monday TUE: Tuesday
WED: Wednesday THU: Thursday FRI: Friday
SAT: Saturday
* A segment appears with the passage of each second of
the current minute.
Hand Setting Mode
Mode Indicator
Level 1 Normal operation enabled.
Normal operation enabled.
Level 2
Digital displays, face illumination, tones
(alarm, hourly time signal), time
Level 3
calibration signal reception, and analog
timekeeping disabled.
All functions, including timekeeping,
Level 4
disabled.
• Exposing the watch to direct sunlight or other strong light may
cause the battery level indicator to momentarily indicate a level
that is higher than the actual battery level. Because of this, you
should wait for a short while after charging to check the battery
level indicator.
• When the battery level approaches Level 3, the display will start to
flash and the analog hands will move to the 12 o'clock position.
• Even after the battery drops to Level 4, you will be able to resume
normal operation by charging the battery.
• When charging from Level 4, the display will start operating when
the battery reaches Level 3. At this time, you will be able to
configure digital time and date settings only. The analog hands will
start to operate when the battery reaches Level 2. At that time,
adjust the analog hand setting so it matches the digital time.
• When charging the battery, keep the watch exposed to light until
the battery reaches Level 2 or Level 1.
Battery Level Screen
Level Indicator
Stopwatch Mode
Mode Indicator
Elapsed Time
❚ Start charging at Level 3!
Battery Level 3 indicates that remaining battery power is very low.
Be sure to expose the watch to light for recharging as soon as
possible after the Level 3 indicator starts to flash.
❚ Flashing Recover Indicator
If you use the light or alarm a number of times during a short
period, a recover (R) indicator flashes on the display and the
following operations become disabled as battery power recovers.
• Face illumination,
• Alarm and hourly time signal
• Analog timekeeping
• Time calibration signal reception
Normal operation will return after the
battery recovers.
Recover Indicator
• If the battery drops to Level 3 while the recover indicator is flashing
on the display, the Battery Level Screen will show " ".
World Time Mode
City Code
Current Time in
Selected City
Alarm Mode
Alarm Hourly Time Signal
• Alarm off • Hourly Time Signal off

❚ Charging Precautions

Avoid charging the watch in the following locations, and anywhere
else where the watch may become very hot.
• On the dashboard of an automobile parked in the sun
• Very close to an incandescent light source or other sources of heat
• In a location exposed to direct sunlight for long periods
Note that the display panel may become black under very high
temperatures. This is temporary, and the display will appear
normal again at lower temperatures.
Depending on the light source you are using, the
case of the watch may become quite hot during
charging. Take care to guard against burn injury
after charging.
❚ To charge the battery
Point the solar panel (face) of the watch at a light source.
• Remember that even a partial blockage of the solar cell reduces
charging efficiency.
Example: Positioning the watch
Solar Cell
• The illustration shows the resin band model.
1
