- Page 1 ES 10 USER MANUAL stage accompany EFFICIENCY SERIES ES 10 High Efficiency Power Amplifier User Manual...
- Page 2 First printing, September 1998 Printed in The Netherlands This manual is intended to provide information about the Stage Accompany ES 10. Every effort has been made to make this manual complete and as accurate as possible. However no warranty of suitability, purpose, or fitness is implied. The information is provided on an “as-is”...
- Page 3 ES 10 USER MANUAL stage accompany Table of Contents Quick Introduction to the ES 10 Introduction Connections Operation Recommendations Technical Specifications Warranty Overview...
-
Page 4: Table Of Contents
ES 10 USER MANUAL stage accompany Table Of Contents Quick Introduction to the ES 10 ....... . . -
Page 5: Quick Introduction To The Es
Important When combining ES 10s with a Stage Accompany Blue Box system, you must take into account that the low-frequency loudspeaker of the Blue Box has an excursion opposite to that of a normal speaker-amplifier combination. The Blue Boxes in combination with the ES 10s have to be switched to inverted phase, or cross cables for ES 10s or Blue Boxes have to be used! •... -
Page 6: Introduction

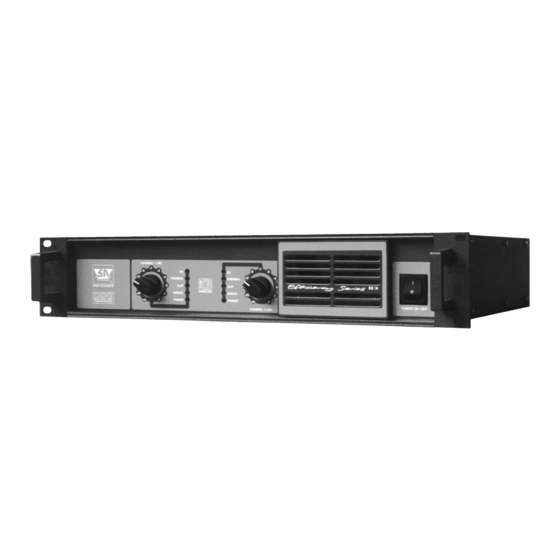

ES 10 USER MANUAL stage accompany 2 Introduction The Stage Accompany ES 10 is a dual channel, high efficiency power amplifier and comprises the following components: • Balanced input stages. Two high efficient amplifiers which deliver each 290 Wrms into 8 Ω, 430 Wrms into 4 Ω... - Page 7 Through the internal EFN circuit, with plug-in modules, extra functions can be added to the amplifier, like cross-over, high- low- or band-pass filtering, equalization and loudspeaker protection. Special protection boards are available for all Stage Accompany loudspeaker systems. The installation of an EFN module needs to be done by an authorised Stage Accompany service centre.
-
Page 8: Mains Power Connection
Switching between mains voltages has to be done by an authorised Stage Accompany service centre. Connecting to the wrong voltage is dangerous and may damage the amplifier. Always ensure that you use a correctly grounded power supply. - Page 9 ES 10 USER MANUAL stage accompany This will prevent unnecessary power loss in the mains cables. If circumstances do not allow this, it is advisable to connect the adapter block directly to the power supply using a short cable and then connect the individual ES 10s to it using longer leads. Although this method is not ideal, it does limit power loss as much as possible.
- Page 10 ES 10 USER MANUAL stage accompany G * 120 Maximum Length (ML) = The two input variables are: number of ES 10s supplied through the cable cable gauge in square millimeters For 110-120 V models the following formula applies: G * 30...
-
Page 11: Audio Connections
ES 10 USER MANUAL stage accompany Cable Gauge (mm 220-240 V 10.0 16.0 1200 1920 ES 10s Table 3-3 Maximum cable length as a function of the cable gauge and the number of ES 10s supplied through the cable. Audio Connections... -
Page 12: Loudspeaker Connections
ES 10 USER MANUAL stage accompany Loudspeaker Connections Due to the DDC feature, the ES 10 has 4 output terminals per channel instead of 2. The speakon connector is wired as follows: Pin 1+ = “hot” or Signal+ Pin 1- = “cold” or Signal- Pin 2+ = “DDC hot”... - Page 13 The smallest input signal will result in full power output with the possibility of square waves damaging your loudspeakers! Therefore, check your cables regularly. We also advice you to use special Stage Accompany 4-wire loudspeaker cable: 2 x 3.0 mm and 2 x 0.75 mm...
- Page 14 ES 10 USER MANUAL stage accompany When more speakers are going to be connected to one amplifier, split the output and DDC leads as soon as possible behind the output terminals of the ES 10 (see figure 3-7 on this and figure 3-8 on the next page).
- Page 15 ES 10 USER MANUAL stage accompany SPEAKON NL4FC Figure 3-8 Correct way of connecting several enclosures to the ES 10 The amplifier can cope with any load of 2 Ω or higher. This means that you may connect a maximum of two 4 Ω, four 8 Ω, or eight 16 Ω loudspeakers per channel in parallel. Linking the loudspeakers from one enclosure to another has two major disadvantages: 1.The loudspeaker cable from the amplifier to the first enclosure conducts the current for all...
- Page 16 ES 10 USER MANUAL stage accompany An indication of the proportional cable power loss (percentage of the amplifier’s total output power) can be calculated using the following formula: Proportional Power Loss = 29.4 * G * R where the variables represent:...
- Page 17 3-10 ES 10 USER MANUAL stage accompany Cable Gauge (mm 8 Ω 10.0 16.0 Cable Length 10.2 12.4 22.1 14.5 12.4 Table 3-5 Proportional power loss as a function of loudspeaker cable gauge and cable length (%). Cable Gauge (mm 4 Ω...
-
Page 18: Operation
The attenuators are used to mute the input signal or to adjust the sensitivity of the ES 10 to other amplifiers. The sensitivity in the 0 dB position is +6 dBu for 35 V output (300 W into 4 Ω). The relative sensitivity to other Stage Accompany amplifiers is: ES 20:... -
Page 19: Ground Lift Switch
When this does not solve the problem, the amplifier is damaged and should be re- paired by an authorised Stage Accompany service centre. • Clip: this LED will light when the output level of the amplifier has reached its limit. The indication is correct for every connected impedance. -
Page 20: Recommendations For Optimum Use
• Repairs to the ES 10 should only be carried out by an authorised Stage Accompany service centre. Never dismantle the ES 10 yourself, you may risk damaging vital com- ponents: moreover, the guarantee becomes irrevocably invalidated. -
Page 21: Technical Specifications
ES 10 USER MANUAL stage accompany 6 Technical Specifications Input: 1.85 Vrms (+7.5 dBu) (full continuous power into 4 Ω Maximum Input Level: +22 dBu 22 kΩ each leg Input Impedance: Common Mode Rejection Ratio (CMRR): > 70 dB @ 20 Hz - 20 kHz 10 Hz - 20 kHz, -0.3 dB @ 50 W into 8 Ω... - Page 22 ES 10 USER MANUAL stage accompany 1 x 580 W RMS into 16 Ω Continuous Bridged Power Delivered: 1 x 860 W RMS into 8 Ω 1 x 1060 W RMS into 4 Ω 1 x 680 W into 16 Ω...
-
Page 23: Warranty
The warranty period on all Stage Accompany products is five years from the date of the first consumer purchase, with the exception of: •... - Page 24 ES 10 USER MANUAL stage accompany Shipment of the product to an authorised Stage Accompany service centre is at the risk and responsibility of the customer. New Stage Accompany B.V. will pay for all labour and material expenses for all repairs covered by the warranty. New Stage Accompany B.V. will not pay for the costs of shipment to the service centre or factory.
-
Page 25: Overview
ES 10 USER MANUAL stage accompany 8 Overview...
