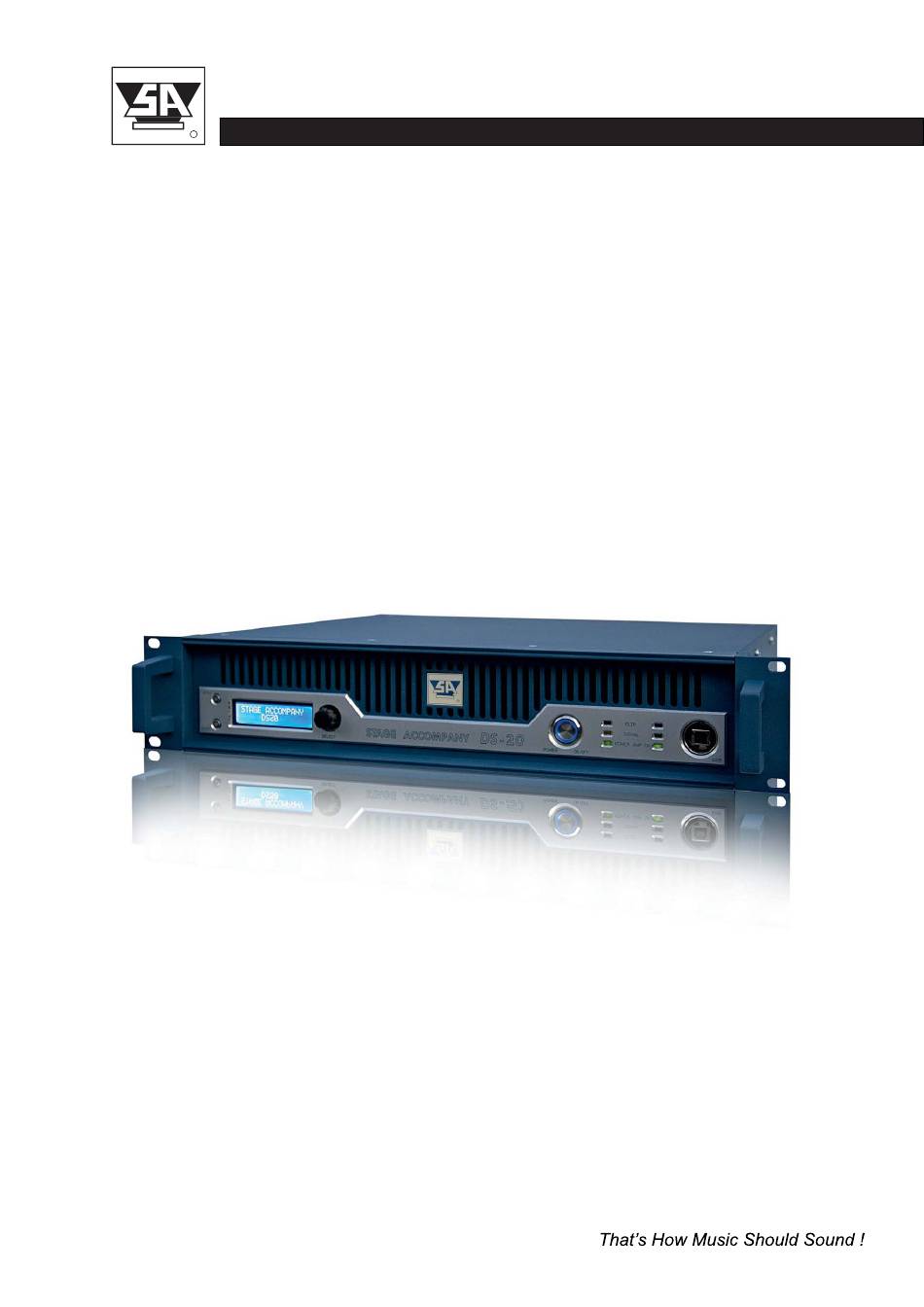

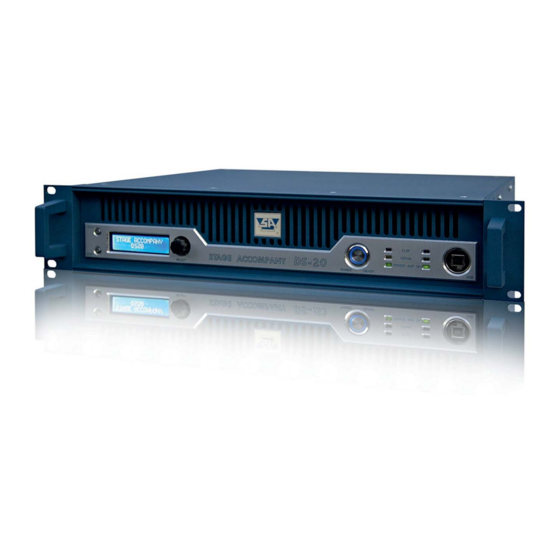

- Page 1 DS20 USER MANUAL stage accompany DIGITAL SERIES DS20 Digital Power Amplifier User Manual Version 1.2...
- Page 2 First printing, October 2016 Printed in The Netherlands This manual is intended to provide information about the Stage Accompany DS20. Every effort has been made to make this manual complete and as accurate as possible. However no warranty of suitability, purpose, or fitness is implied. The information is provided on an “as-is”...
- Page 3 DS20 USER MANUAL stage accompany Table of Contents Quick Introduction to the DS20 Introduction Connections Operation Stage Control Recommendations Technical Specifications Warranty Overview...
-
Page 4: Table Of Contents
DS20 USER MANUAL stage accompany Table Of Contents Quick Introduction to the DS20 ....... . . - Page 5 DS20 USER MANUAL stage accompany System Menu ..........
-
Page 6: Quick Introduction To The Ds20
Quick Introduction to the DS20 Thank you for choosing a Stage Accompany Power Amplifier. Making this choice has guaran- teed you many years of troublefree amplification. If you have to start using the DS20 straight away and do not have the time to read the complete manual, make sure that you at least read the following: •... -
Page 7: Introduction
DS20 USER MANUAL stage accompany 2 Introduction The Stage Accompany DS20 is a dual channel, digital power amplifier and comprimises the following components: • Balanced input stages. • Two digital amplifiers wich deliver each 440W into 8 ohms, 700W into 4 ohms and 1200W into 2 ohms. - Page 8 DS20 USER MANUAL stage accompany DSP processing The built in DSP module is a high quality four input, two output DSP processor with all the neccessary features for a professional amplifier. The unit features two analogue and one two channel AES/EBU inputs with full configuration and real-time monitoring via PC controlled by Ethernet and USB interface.
-
Page 9: Mains Power Connection
Switching between mains voltages has to done by an authorised Stage Accompany service centre. Connecting to the wrong voltage is dangerous and may damage the amplifier. Always ensure that you use a correctly grounded power supply. - Page 10 DS20 USER MANUAL stage accompany This will prevent unnecessary power loss in the mains cables. If circumstances do not allow this, it is advisable to connect the adapter block directly to the power supply using a short cable and then connect the individual DS20s to it using longer leads. Although this method is not ideal, it does limit power loss as much as possible.
- Page 11 DS20 USER MANUAL stage accompany G * 90 Maximum Length (ML) = The two input variables are: number of DS20s supplied through the cable cable gauge in square millimeters For 110-120 V models the following formula applies: G * 22.5...
-
Page 12: Audio Connections
DS20 USER MANUAL stage accompany Cable Gauge (mm ) 220-240 V 10.0 16.0 4 1 40 DS20s 4 1 4 Table 3-3 Maximum cable length as a function of the cable gauge and the number of DS20s supplied through the cable. -
Page 13: Loudspeaker Connections
DS20 USER MANUAL stage accompany Loudspeaker Connections The DS20 has 4 output terminals per channel instead of 2. The speakon connector is wired as follows: Pin 1+ = “hot” or Signal+ Pin 1- = “cold” or Signal- Pin 2+ = “ hot” or Signal+ NEUTRIK Pin 2- = “... - Page 14 DS20 USER MANUAL stage accompany If you don’t want to use the DDC feature at all, the DDC and the signal leads should be linked at the amplifier output in the speakon connector (see figure 3-4). The DDC terminals can also be left unconnected but then the performance will be less.
- Page 15 DS20 USER MANUAL stage accompany When more speakers are going to be connected to one amplifier, split the output and DDC leads as soon as possible behind the output terminals of the DS20 (see figure 3-7 on this and figure 3-8 on the next page).
- Page 16 DS20 USER MANUAL stage accompany SPEAKON NL4FC Figure 3-8 Correct way of connecting several enclosures to the DS20 The amplifier can cope with any load of 2 ohms or higher. This means that you may connect a maximum of two 4 ohms, four 8 ohms or eight 16 ohms loudspeakers per channel in parallel.
- Page 17 DS20 USER MANUAL stage accompany An indication of the proportional cable power loss (percentage of the amplifier’s total output power) can be calculated using the following formula: Proportional Power Loss = 29.4 * G * R where the variables represent:...
- Page 18 3-10 DS20 USER MANUAL stage accompany Cable Gauge (mm ) 8Ω 10.0 16.0 Cable Length 10.2 12.4 22.1 14.5 12.4 Table 3-5 Proportional power loss as a function of loudspeaker cable gauge and cable length (%). Cable Gauge (mm ) 4Ω...
-
Page 19: Operation
Please note that if your DS20 amplifier is incorrectlly setup you will not be using your system to its fullest potential and could be harming your speakers. Always select the right Stage Accompany preset for your SA-system! (see 4.4) We encourage you to configure the device via PC or MAC program for maximum ease. -
Page 20: Gain
DS20 USER MANUAL stage accompany Gain Adjust the gain by dialing the rotary encoder. The gain is adjusted in steps of 0.25dB. Smaller steps (0.01dB) can be set via the PC or MAC interface. MENU In 1 Gain SELECT EXIT Input Selection The DS20 inputs are fixed. -
Page 21: High Pass Filter
DS20 USER MANUAL stage accompany High Pass Filter Adjust the High Pass Filter frequency by turning the rotary encoder. You can switch the high pass filter off by turning the rotary encoder down (counterclockwise) until the frequency passes 20Hz. Press the rotary encoder to change the filter type. Select the type by turning the rotary encoder. -
Page 22: Compressor
DS20 USER MANUAL stage accompany Compressor The Compressor is a true RMS compressor. Turn the rotary encoder to set the threshold. Press the rotary encoder to select the parameters. The available parameters are: Threshold, Attack, Hold, Release, Ratio and Makeup Gain. -
Page 23: Output Setup
DS20 USER MANUAL stage accompany 4 . 3 Output Setup Press the SELECT button to select the output channel you wish to edit. To toggle through the different items, press the SELECT button and rotate the encoder. Gain Adjust the gain by dialing the rotary encoder. The gain is adjusted in steps of 0.25dB. -
Page 24: High Pass Filter
DS20 USER MANUAL stage accompany High Pass Filter Adjust the High Pass Filter frequency by turning the rotary encoder. You can switch the high pass filter off by turning the rotary encoder down (counterclockwise) until the frequency passes 20Hz. Press the rotary encoder to change the filter type. Select the type by turning the rotary encoder. -
Page 25: Compressor
DS20 USER MANUAL stage accompany Compressor The Compressor is a true RMS compressor. Turn the rotary encoder to set the threshold. Press the rotary encoder to select the parameters. The available parameters are: Threshold, Attack, Hold, Release, Ratio and Makeup Gain. -
Page 26: Channel Link
DS20 USER MANUAL stage accompany Channel Link By linking 2 channels, the settings are guaranteed to be identical for both channels, except for mixer and mute. Turn the encoder to set the Channel link on or off. MENU MENU Out 12... -
Page 27: Access Level
LED will blink or swithes off. In that case the amplifier is damaged and should be repaired by an authorised Stage Accompany service center. Signal present: these LEDs will light when a input level of more than 40 dB under the level that would cause maximum power is detected. -
Page 28: Stage Control
This document describes how to install and use the Stage Control software on your computer for the Stage Accompany Digital Series amps. Installing Stage Control gives you the possibility to remotely setup, monitor and update (firmware) your SA amp(s) from the Digital Series through USB or internet. - Page 29 Series amps will be installed, as well as factory preset files (if applicable). After installation start the software by double-clicking the desktop icon, or by selecting: Start – Programs – Stage Accompany – Stage Control. MAC OS X: Download the installation package from our website and open it.
- Page 30 SA Digital Series amp. To configure or monitor your SA Digital Series amp(s) you do the following; Double-click the Stage Accompany Stage Control configuration icon on your desktop to start the software. If no SA Digital Series amps are discovered during start-up the screen looks like the figure below.
-
Page 31: Main Window
DS20 USER MANUAL stage accompany Quick configuration If you have to start configuring your SA Digital Series amp(s) straight away and do not have time to read the complete manual, make sure that you at least read the following; When you have connected the amp(s) to your network and successfully discovered the amp(s) >>... -
Page 32: X-Over Window
DS20 USER MANUAL stage accompany X-over Window X-over tab: clicking on this tab will open the cross-over window. High Pass Filter slope and frequency fields: you can enter the desired high pass filter fre- frequency here and choose the slope. The filter types that can be chosen are Butterworth, Bessel and Linkwitz Riley. -
Page 33: Input Window
DS20 USER MANUAL stage accompany Input Window Input tab: clicking on this tab will open the input processing window PEQ on/off button: clicking these buttons enable the corresponding parametric equalizer (PEQ). When a PEQ is enabled the corresponding button lights up. -
Page 34: Output Window
DS20 USER MANUAL stage accompany Output Window Output tab: clicking on this tab will open the output processing window. Mixer: the ratio of each available input that is routed to the output. Invert button: clicking this buttons inverts the signal to the output. -
Page 35: Compressor Window
CD image is also available at our website, the CD image contains all latest versions (Windows and Mac) of Stage Control, as well supporting documentation and an Autostart feature with automatic 32/64-bit system detection. http://www.stageaccompany.com/support/downloadnew/stage_control.iso Please visit our website for more detailed information about the Stage Accompany Digital Series amplifiers. http://www.stageaccompany.com/products/electronics/electronics.html... -
Page 36: Recommendations For Optimum Use
When a replaced fuse im- mediately blows again, the amplifier is defect and should be repaired by an authorised Stage Accompany service centre. Do not try to replace the fuse again because you may risk further damage to the amplifier. -
Page 37: Technical Specifications
DS20 USER MANUAL stage accompany 7 Technical Specifications Efficiency : 92% @ full power : +23dBu Max input level : 25kΩ Input impedance : 10Hz – 40kHz Frequency range (@ 100W into 8 Ω) Gain : 26dB : > 90dB @ 1kHz... -
Page 38: Warranty
The warranty period on all Stage Accompany products is five years from the date of the first consumer purchase, with the exception of: •... - Page 39 Stage Accompany will pay for all labour and material expenses for all repairs covered by the warranty. Stage accompany will not pay for the costs of ship- ment to the service centre or factory. However, Stage Accompany will pay for the costs of return shipment to the customer if repairs are covered by warranty.
-
Page 40: Overview
DS20 USER MANUAL stage accompany 9 Overview 9 10 11 12 13 14 15 16 18 19 20 21 22 23 Function Button “MENU“ Function Button “EXIT“ LCD Display Rotary Encoder / Function “Button Select“ Power Switch Power Amp On, Signal and Clip LEDs (Channel 1)
