Scott MX860 User Manual

Digital mp3/mp4 player with 1.1” display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MX860
DIGITAL MP3/MP4 PLAYER WITH 1.1" DISPLAY
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Scott MX860

Summary of Contents for Scott MX860

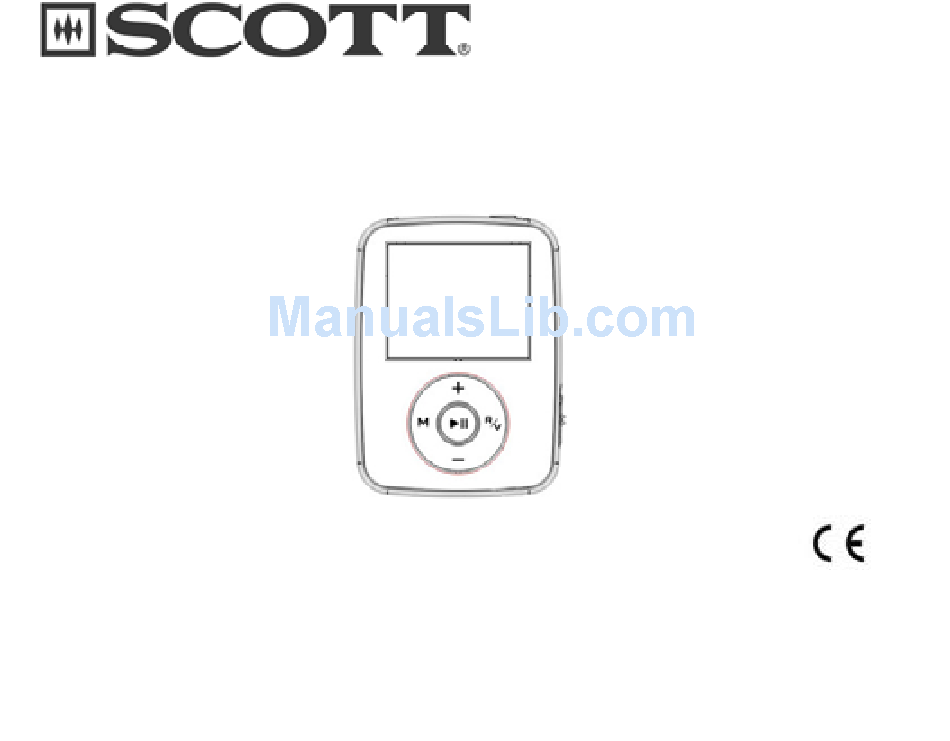

  • Page 1 MX860 DIGITAL MP3/MP4 PLAYER WITH 1.1” DISPLAY User’s Manual...

  • Page 2: Precautions

    PRECAUTIONS Note: Please recharge this player before using it! 1. Please follow the instructions in this manual when using the player in order to avoid the risk of explosion, fire, electric shock, etc. 2. Do not repair the player yourself, as you may damage it. 3.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS TABLE OF CONTENTS BOX CONTENTS FEATURES LOCATION OF CONTROLS USING THE BATTERY BASIC OPERATIONS “MUSIC” “FILES” “VOICE” “PHOTO” “FM RADIO” “SETUP” “VIDEO” “EBOOK” MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS GB-2...

  • Page 4: Box Contents

    BOX CONTENTS Instruction MP3/MP4 Quick Start AC/USB USB Cable Earphones Player Guide adapter installation FEATURES The player supports MP3 and WMA music file formats. It supports USB 2.0 which is much faster than USB 1.1. This enables a faster connection with your PC. Your can make voice recordings with your player and you can also record music or FM radio broadcasts.

  • Page 5: Location Of Controls

    LOCATION OF CONTROLS 1.【M】: Menu button 7. MIC/RESET button 2.【 】: Play/Pause/Confirm button. 8. USB port 3.【＋】: Forward/Volume up button 9. Earphones jack 4.【R/V】: Record/Volume button 10. Loop hole 5.【－】: Backward/Volume down button 11.【HOLD】: Lock/Unlock (write protection) switch 6. OLED display GB-4...

  • Page 6: Using The Battery

    USING THE BATTERY This product is equipped with a rechargeable Li-polymer battery. 1. To charge the battery, connect the player to a PC with the USB cable supplied. You can also connect your player to an AC outlet with 100-240V ~ 50/60Hz using the supplied AC/USB adaptor. 2.

  • Page 7: Music

    6. To Play/Pause the music, press the button. 7. To select the next or previous file, press the【＋/－】buttons. 8. To turn off the player, press and hold down the button. Note: If you cannot switch on the player or it does not work normally once you have switched it on, please reset it by pressing the RESET button with a sharp point.
  • Page 8 2. You can delete the music file or add it to the “My List” (stored in the “Play List”) by pressing the R/V button. Use the 【＋/－】 buttons to select “Add to list" or “Delete” and press the button to confirm. 3.
  • Page 9 4. To download the music files to the player: 4.1) Click “Select Music” or “Select Music Directory” to input music files with “.mp3” or “.wma” formats, one by one or the whole directory. 4.2) Click the command “Download Music” to download the selected music to the player and create/refresh the music classification database.
  • Page 10 5. Click “Delete Music” to delete the music files on the player and create /refresh the music classification database. NOTE: 1. The program “ClassifyMusic_V1.5” can only classify the music files within the player; 2. You will find more information on the “Classify Music” program on the instruction and installation CD (“ClassifyMusic_V1.5”→“Music_Classification”...
  • Page 11 “Equalizer” This player allows you to select different EQ modes: “Normal”, “Pop”, “Rock”, “Classic”, “Jazz”, “Bass” or “Custom EQ”. Custom EQ: You can personalize the EQ settings using the R/V button to scroll through the EQ levels and press the【＋/－】buttons to adjust the level. NOTE: The EQ effect is not obvious while playing WMA format music files.
  • Page 12 Slide Show Maker Insert instruction installation into enter folder named “SlideShowMaker_V1.12.0”. Then double-click “Slide Show Maker” to display the following menu: 1) “Image File Name” – Lists the different image files. 2) “Preview Window” – Preview of an image file and the chosen slide show mode. 3) “Mode”...
  • Page 13 4) “Load Image” – Input image files (*.jpg, *.bmp, *.gif). 5) “Preview” – Preview of the slide show. 6) “Transform” – Transform all image input files into a single slide show file .7) “Cancel” – Cancel preview mode or transformation. 8) “Delete”...

  • Page 14: Files

    “FILE” In the main menu, press the【＋/－】buttons to select “FILE” and enter by pressing the button. 1. Use the【＋/－】buttons to select a file and press the button to confirm. 2. To delete a file, press the M button to return to the file list and then press the R/V button to enter “Delete”...

  • Page 15: Fm Radio

    2. To delete the file, press the M button to return to the photo list and then press the R/V button to enter the “Delete” menu, and press the 【＋/－】 buttons to select “Yes” or “No”. Then press the button to confirm.

  • Page 16: Setup

    3. In “Preset” mode, press the【＋/－】buttons to select the preset stations. The player can memorize up to 30 stations. Press the M button to enter the sub-menu offering the following options: “Delete” or “Auto Scan”. FM Recording Press and hold down the R/V button to start recording FM stations. Press the button to pause or resume recording.
  • Page 17 “Language” This option allows you to select the OSD language: “English”, “French”, “German”, “Italian”, “Spanish” or “Portuguese”. “Display” Use the【＋/－】buttons to adjust the following settings: “Brightness”: Adjust the screen brightness. “Backlight”: This option allows you to determine the duration after which the screen backlight will switch off if no buttons are pressed on the player.

  • Page 18: Video

    “VIDEO” MTV Video Converter In order to play video files on this player, you must convert them into MTV format. The MTV video converter converts video files to MTV format. Insert the instruction and installation CD into your PC and enter the folder named “VideoConverter_V2.9”.
  • Page 19 1．Click “Input Video” to select the video file you wish to convert. 2．Select “Advanced Setting” to set the “Output Video Quality” and select one of the following options: “High Quality”, “Normal Quality”, “Medium Quality”, “Low Quality”). 3．Set “Output Frame Size” to 96 x 64. To do this, click on the arrow at the right to open the drop-down list and select “96 x 64”.
  • Page 20 5．You can replace the video clip audio track with an audio file of your choice. Click “Input Music” and choose a music file to replace the original video clip audio track. 6. You can also convert a segment of the video clip rather than the whole clip. Drag the scroll bar to select the starting or finishing time and confirm by clicking the arrow to the left of the corresponding time.

  • Page 21: Ebook

    playback. You can press the M button to select the repeat mode: “No Repeat”, “Repeat One”, “Repeat All”, “Random All”, “Folder Normal”, “Folder Repeat”, “Folder Random”. NOTE: You will find more information about the MTV Video Converter on the instruction and installation CD (folder “VideoConverter_V2.9”...

  • Page 22: Troubleshooting

    TROUBLESHOOTING Problems Recommendations 1. The player or display does 1.1 Place the【HOLD】switch in the unlock position. not work properly. 1.2 Reset the player by inserting a sharp point into the RESET button. 1.3 Update the software on the player using the supplied CD. 2.
  • Page 23 Distortion < 0.1% at 1kHz Output power 2 x 125mW (L+R) FM radio: Tuning range 87.5 ---- 108MHz Preset stations File system FAT16, FAT32 Maximum level of sub-directories 5 (cannot identify the sixth level or sub-directory) Operating temperature C ----35 C (41 F---95 Operating humidity...
