- Page 1 BAO6009-P 60 cm Multifunction self-cleaning pyrolytic built in oven.
- Page 2 User Manual for your Baumatic BAO6009-P 60 cm 9 Function self- cleaning pyrolytic built in oven. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Welcome to Think appliances letter 5 – 8 Product dimensions Product specifications Standard accessories Electrical details Control panel Oven programmer/timer display Selecting manual operation mode Setting the time of day Setting the minute minder function 12 – 13 Setting the duration function Selecting the end cook function Setting the start and end time function Adjusting the audible signal... - Page 4 Dear Customer, Congratulations on purchasing your new product from Think Appliances. To register your parts and labour warranty (some conditions apply please refer to your warranty card for more details) please contact out Customer Care team on: 1800 444 357 Our Customer Care centre is there to ensure you get the most out of your appliance.
- Page 5 The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.
- Page 6 Your new appliance is guaranteed against electrical or mechanical defects, subject to certain exclusions that are noted in Baumatic’s Conditions Of Guarantee. The foregoing does n ot affect your statutory rights. o Repairs may only be carried out by Baumatic Service...
- Page 7 WARNING To ensure the oven shelves operate safely, correct placement of the shelves between the side rails (items 1 to 4) is imperative. This will ensure that during removal of the shelf or tray, hot food items should not slide out completely.
- Page 8 This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation. o Baumatic strongly recommend that babies and young children...
- Page 9 This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer’s instructions. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 10: Standard Accessories
Height: 591 mm 580 mm – 583 mm Width: 597 mm 560 mm Depth: 525 mm 550 mm o 9 functions o Energy efficiency class: A o Oven capacity: 57 litres o LED full programmer o Cooling fan o Mark resistant coating o Thermostatically controlled grill o Triple-glazed removable door o Automatic safety door-lock (when in pyrolytic cleaning mode) - Page 11 lectrical details Rated Voltage: 220 - 240 Vac 50 Hz Supply Connection: 16 A (double pole switched fused outlet with 3m m c ntact gap Max Rated Inputs: 3.10 kW Mains Supply Lead 3 x 1.5 mm² ven Light Bulb: 25 W/500°C screw type pygmy For future reference please record the following information which can be found on the rating plate and the date of purchase which can be...
- Page 12 1) Oven function selector knob 7) Timer “duration” button 2) Power indicator light 8) Timer “end cook” button 3) Oven programmer/timer 9) Timer “manual operation” button 4) Oven operating light 10) Timer “minus” button 5) Thermostat control knob 11) Timer “plus” button 6) Timer “minute minder”...
-
Page 13: Control Panel
After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into “manual operation” mode. o To select manual operation mode, press the “manual operation”... -
Page 14: Oven Functions
o Important: The oven will continue to heat once the alarm has been silenced. If you have finished cooking, then you should turn the oven function selector and thermostat control knob to 0. o Use the thermostat control knob to set the temperature that you require. -
Page 15: Thermostat Control Knob
o Use the thermostat control knob to set the temperature that you require. The manual operation symbol will appear on the display. o Use the oven function selector knob to select the mode of cooking that you require. o Press the “end cook” button and the display will show a value of 00:00. - Page 16 o Use the thermostat control knob to set the temperature that you require. The manual operation symbol will appear on the display. o Use the oven function selector knob to select the mode of cooking that you require. o Press the “duration” button and the display will show a value of 00:00.
- Page 17 After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into “manual operation” mode. o To select manual operation mode, press the “manual operation”...
- Page 18 Convection top and lower element This method of cooking provides traditional cooking with heat from the top and lower elements. Particularly suitable for traditional roasting and baking on the centre shelf only. Convection oven and fan assist This method of cooking provides heat from the outer top and the lower elements, plus the use of the fan to circulate the heat and ensure a fast and even distribution.
-
Page 19: Oven Operating Light
This light will come on to indicate that the oven’s heating elements are in operation. The light will turn off when the temperature set on the thermostat control knob has been reached. It will cycle on and off throughout the cooking time. You should not place food inside the cavity, until the correct cooking temperature has been reached. - Page 20 o You should also never line the base of your oven with aluminium foil. o During cooking, never place pans or cookware directly onto the bottom of your oven. They should always be placed on the shelves provided. o The grill heating element becomes extremely hot during operation, avoid touching it inadvertently when handling the food which you are grilling.
- Page 21 o IMPORTANT: All accessories must be removed from inside the oven before commencing the pyrolytic cleaning function. o The oven should not be left unattended when the pyrolytic cleaning cycle is in progress. o All major food residues must be removed from the oven before starting this function.
- Page 22 o To silence the audible signal and return the oven to manual operation mode, once the start and end time function has been used. To do this you should press the “manual operation” button, the word AUTO will disappear from the display and the manual operation symbol will appear instead.
- Page 23 o Any damage that is caused to the appliance by a cleaning product will not be fixed by Think appliances free of charge, even if the appliance is within the guarantee period. IMPORTANT: The oven must be switched off before you attempt to either remove or replace the oven bulb.
- Page 24 To facilitate the cleaning of the inside of the oven and the outer frame of the oven, the door can be removed as follows:- o The hinges have two movable bolts on them o If you raise both of the movable bolts , then the hinges are released from the oven housing.
-
Page 25: Warnings
Care must be taken to ensure that the temperature of the mains supply cable does not exceed 50°C. o If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. - Page 26 o Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagram. o The oven must be fitted into an oven housing with the ventilation cut-outs shown in the “Ventilation requirements” section on the next page.
- Page 27 (Figure shows the ventilation and cut-out requirements for the installation of the appliance into a standard kitchen unit). (Figure shows the ventilation and cut-out requirements for the installation of the appliance into a tall housing unit). o Ensure that the oven has been securely fixed into the housing unit.
- Page 28 o The oven isn’t coming on. * Check that the oven is in manual operation mode. * Check that you have selected a cooking function and a cooking temperature. o There appears to be no power to the oven and grill. * Check that the appliance has been connected to the electrical mains supply correctly.
-
Page 29: Replacing The Oven Bulb
This includes situations where appliances have been tiled in, sealed in with sealant, have wooden obstructions placed in front of the appliance, like plinths. Or any installation other than the one specified by Baumatic Ltd. has been completed.
Need help?
Do you have a question about the BAO6009-P and is the answer not in the manual?
Questions and answers

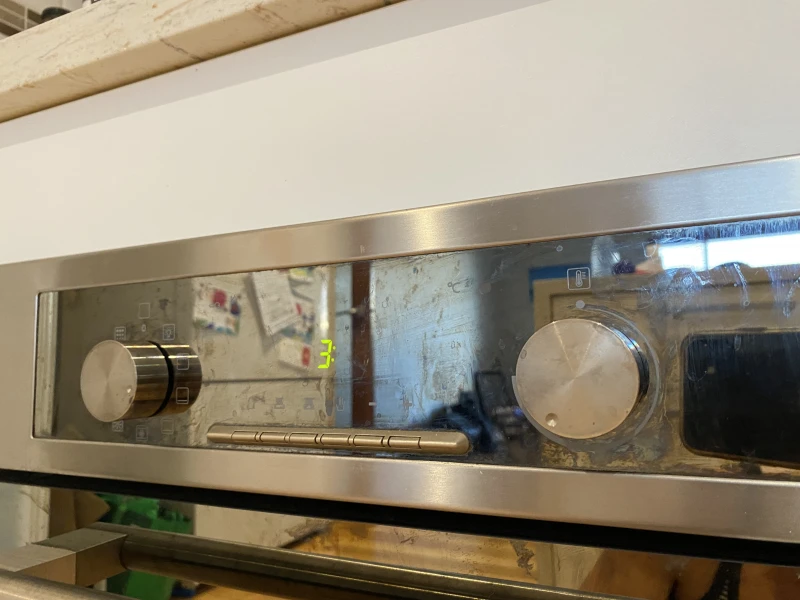

The oven clock/screen is only displaying 3: and won’t heat up on any of the cook settings. The thermostat light won’t come on either (to show it’s trying to reach a set temperature). The **** and internal light are working fine.
