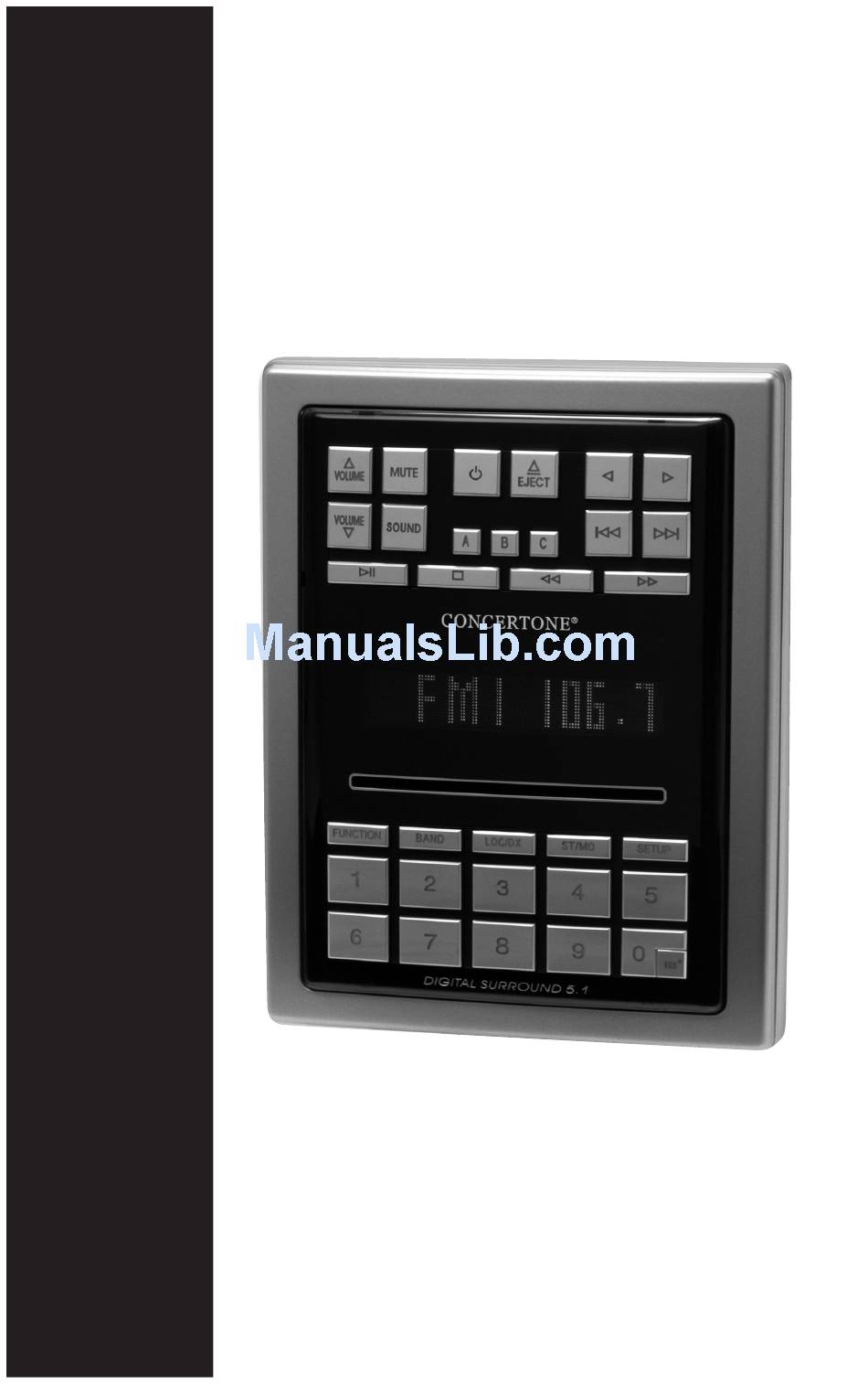

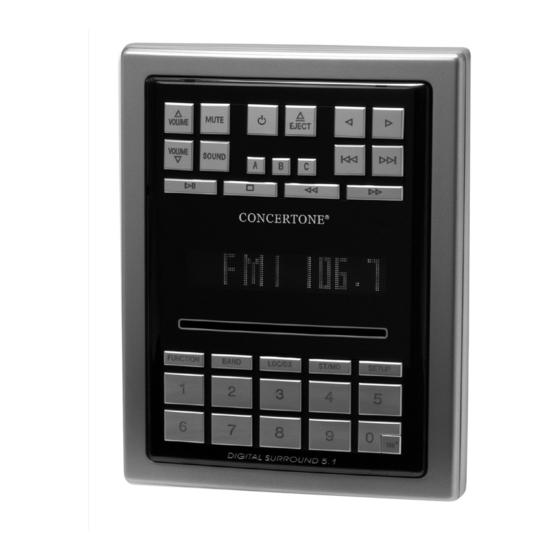

- Page 1 CONCERTONE ® OPERATING INSTRUCTIONS ZX500 DVD/CD/MP3/TV/AM/FM/WEATHER BAND HIGH POWER DIGITAL SURROUND SOUND ENTERTAINMENT SYSTEM...
-
Page 2: Table Of Contents
CONCERTONE® Table of Contents Brief Introduction of this Unit . . . . . . . . . . . . . .Page 02 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 04 Remote Control . -
Page 3: Brief Introduction Of This Unit
CONCERTONE ® Brief Introduction of this Unit This unit is microprocessor controlled and features a number of sophisticated functions ensuring superior performance and operation . All the functions will be thoroughly explained in the following sections of this manual to help you have an overall and basic understanding of the different features, functions and operations of this unit . - Page 4 CONCERTONE ® Separate Speaker On-Off Control for Each Room Separate front panel and remote control buttons are provided to turn on or off the [A], [B], and [C] rooms separately . The audio in any room can be turned On or Off separately by pushing the [A], [B], or [C] buttons .
-
Page 5: Front Panel
CONCERTONE ® Front Panel 1 . POWER Press to turn on or off the unit 2 . VOLUME UP p Press to increase the volume for all 3 rooms 3 . VOLUME DOWN q Press to decrease the volume for all 3 rooms 4 . - Page 6 CONCERTONE ® 11 . Disc Player u Moves the cursor to sub-menu at right side Radio One minimum step higher frequency One channel up 12 . Disc Player |tt Select previous track or chapter of the disc Radio Seek one available station at lower frequency Move to one available channel down 13 .
-
Page 7: Remote Control
CONCERTONE ® Remote Control 1 . POWER Press to turn on or off the unit 2 . EJECT Press to eject disc from the unit 3 . DISC Press to select Disc Player 4 . TV Press to select TV Receiver 5 . - Page 8 CONCERTONE ® 12 . 0 Working together with numbers 1-9 to select TV channel, or track, file or chapter of disc 13. 100+ Working together with numbers 0-9 to select TV channel, file of MP3 or WMA disc Note: When the unit is in Radio mode, pressing and holding this button will reset the unit back to Factory default .
- Page 9 CONCERTONE ® 36 . SOUND Press to select sub-menu for sound control level for BASS, TREBLE or BALANCE: VOLUME for 40 steps of control for all rooms BASS for 14 levels of bass output control for all rooms TREBLE for 14 levels of treble output control for all rooms...
-
Page 10: Basic Control Of All Functions
CONCERTONE ® Basic Control of All Functions Changing Functions When the unit is turned on, pressing the [FUNCTION] button on the front panel will switch the unit between the main functions as follows: DISC, TV, RADIO, INPUT 1, INPUT 2... -
Page 11: Multi-Media Disc Player
CONCERTONE ® Multi Media Disc Player Common Controls for DVD, CD, WMA and MP3 Disc To Load and Eject a Disc When the unit is in Disc Player mode, if the [EJECT] button on the front panel or the remote control is pushed, the unit will stop playing and eject the disc . The unit will keep the disc in the slot with [EJECT] showing on the Digital Display . -
Page 12: Glossary
CONCERTONE ® Glossary Aspect Ratio This is the width-to-height ratio on the monitor screen . A normal display has an aspect ratio of 4:3 . Wide-screen displays has an aspect ratio of 16:9 Title DVD disc has a high data capacity, enabling recording of multiple movies on a single disc . -
Page 13: How To Operate System Setup
CONCERTONE ® How to Operate System Setup Press the [SETUP] button on the unit or remote control when the unit is in the Disc Player mode . The screen will display the System Setting Menu . There are five menus on the System Setting Menu. -
Page 14: General Setup
. There are two options, ON or OFF in this sub-menu . Audio Setup Page -- There is a Sub-menu, Speaker Setup, available to set-up the audio output for the speakers . CONCERTONE® suggest that it is better to keep the status of Speaker Setup at Factory Mode . -
Page 15: Preference Page
Setup at Factory Mode . Preference Page TV Type -- This is for setting up the TV system used . CONCERTONE suggest that you leave this control set in the factory mode . -
Page 16: Television Reception
CONCERTONE ® Television Reception First Search for Available TV channels Press [uu] or [tt] to start Auto-Search which will set available channels in memory . To change from AIR to CATV channels please see below . Fast Operation Press [p] or [q] to move one channel up or down for radio . -
Page 17: Am Fm Reception
CONCERTONE ® AM/FM Reception It is very important to understand what is shown on the digital readout: Preset Number Indicator Shows which preset station that has been selected . Band Indicator Shows which band the radio is tuned to . AM, FM 1, 2, 3 or Weather Band Frequency Indicator Shows which frequency the tuner is tuned . - Page 18 CONCERTONE ® Auto Scan Push and hold [uu] button longer than 3 seconds , the unit will go into AUTO SCAN function . The difference between Auto Seek and Auto Scan function, the unit will automatically preset any available station in order until all the preset positions have been filed, Auto Seek function will not store stations .
-
Page 19: Connecting The Unit
CONCERTONE ® CONNECTING THE UNIT Very Important Notice: It is strongly suggested that this unit be installed by an authorized, professional technician . Incorrect installation may cause serious damage to this unit, and possible danger to human life and your vehicle . -
Page 20: Specifications
CONCERTONE ® Specification General Dimension 6 5/8” 240mm (W) X 9 3/8” (H) X 4-1/2” 120mm Net Weight 6 lbs 3 .35Kg Voltage 14 .4V DC (10 .8V – 15 .1V allowable) Maximum Current Consumption Audio 10 separate Digital Amplifiers Maximum Power Output 50W x 10 at 4 Ω... -
Page 21: Warnings And Precautions
Due to the dangerous voltage inside this player, do not open the cabinet by yourself to prevent electrical shock . Please contact professional technician to perform any service needed . Please use the components recommended by CONCERTONE when replacement is necessary . · Please turn unit off when not in use . -
Page 22: Warranty
WARRANTY ONE (1) YEAR LIMITED WARRANTY CONCERTONE® warrants to the original retail purchaser of this unit that it or any part therein, under normal use and conditions, be proven defective in material or workmanship within 1 year from the date of original purchase, such defect/s will be repaired or replaced at CONCERTONE®’S option without charge for parts and repair... -
Page 23: Wall Plates
. Push the top of the satellite receiver and cradle back into the wall plate until it locks into place . Use the FUNCTION BUTTON on the ZX500 and select INPUT II on ZX500 to listen to XM Radio through your entertainment syatem REMOVAL... -
Page 24: Operating Instructions
CONCERTONE ® OPERATING INSTRUCTIONS DVD/CD/MP3/TV/AM/FM/WEATHER BAND HIGH POWER DIGITAL SURROUND SOUND CONCERTONE® 1803 Century Drive Goshen, IN 46528 574-534-3167...
