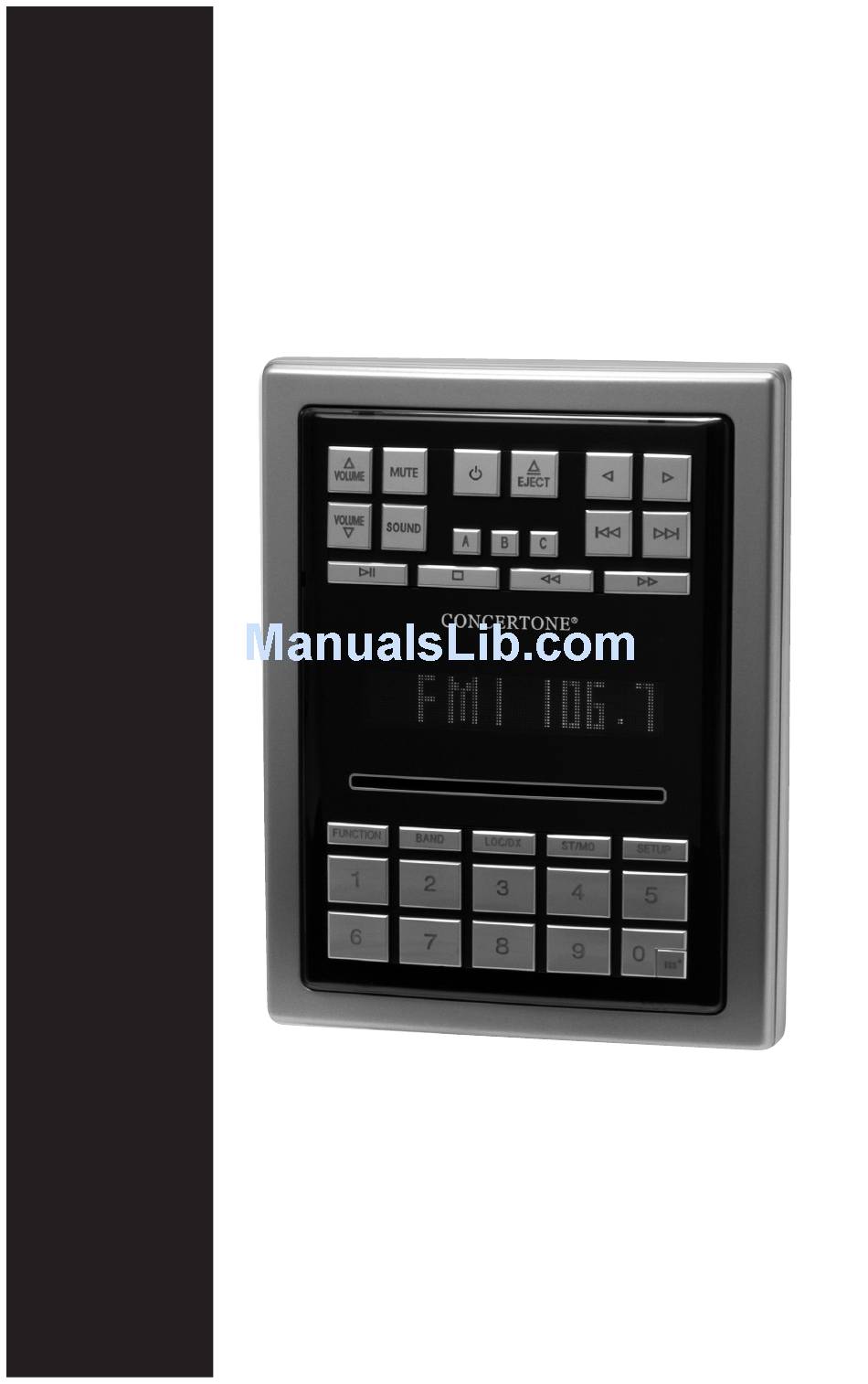

- Page 1 CONCERTONE ® OPERATING INSTRUCTIONS ZX300 CD/MP3/AM/FM/WEATHER BAND HIGH POWER DIGITAL ENTRAINMENT SYSTEM...
-
Page 2: Table Of Contents
CONCERTONE ® Table of Contents Brief Introduction of this Unit . . . . . . . . . . . . . . . . . . . . Page 02 Front Panel . -
Page 3: Brief Introduction Of This Unit
CONCERTONE ® Brief Introduction of this Unit This unit is microprocessor controlled and features a number of sophisticated functions ensuring superior performance and operation . All the functions will be thoroughly explained in the following sections of this manual to help you have an overall and basic understanding of the different features, functions and operations of this unit . - Page 4 CONCERTONE ® Separate Speaker On-Off Control for Each Room Separate front panel and remote control buttons are provided to turn on or off the [A], [B], and [C] rooms separately . The audio in any room can be turned On or Off separately by pushing the [A], [B], or [C] buttons .
-

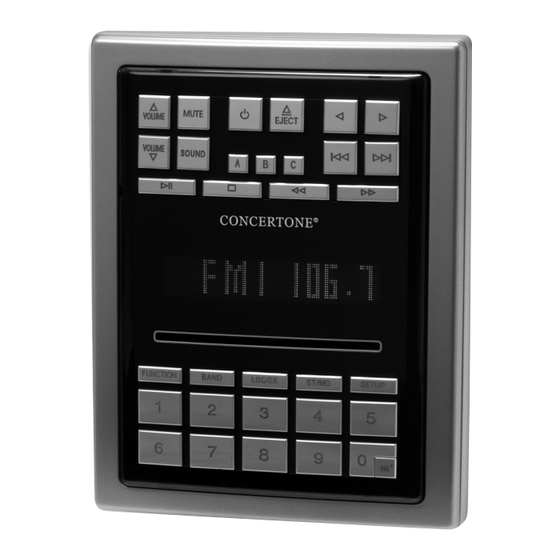

Page 5: Front Panel
CONCERTONE ® Front Panel POWER Press to turn on or off the unit VOLUME UP p Press to increase the volume for all 3 rooms VOLUME DOWN q Press to decrease the volume for all 3 rooms MUTE Press to mute all the audio outputs of all three rooms... - Page 6 CONCERTONE ® Front Panel Continued 12 . Disc Player tt| Select previous track of the disc Radio Search one available station lower 13 . Disc Player uu| Select next track of the disc Radio Search one available station higher 14 . PLAY-PAUSE u||...
-
Page 7: Remote Control
CONCERTONE ® Remote Control POWER Press to turn on or off the unit EJECT Press to eject disc from the unit DISC Press to select Disc Function RADIO Press to select Radio function BAND Press to select FM1, FM2, FM3, AM or Weather Band... - Page 8 CONCERTONE ® 15 . SOUND Press to select sub-menu for sound control of VOLUME, BASS, TREBLE or BAL . VOLUME Press for 40 steps of volume control for all rooms BASS Press for 14 levels of bass control for all rooms (boost or...
-
Page 9: Basic Control Of All Functions
CONCERTONE ® Basic Control of all the Functions Changing Functions When the unit is turned on, pressing the [FUNCTION] button on the front panel will switch the unit between the main functions as follows: DISC]RADIO]INPUT DISC for Disc Playing CD or MP3 disc... -
Page 10: Disc Player
CONCERTONE ® Disc Player Load and Eject a Disc When the unit is in Disc Play mode, if the [EJECT] button on the front panel or the remote control is pushed, the unit will stop playing and eject the disc . The unit will keep the disc in the slot with [EJECT] showing on the Digital Display . -
Page 11: Am/Fm Reception
CONCERTONE ® AM/FM Reception It is very important to understand what is shown on the digital readout: Preset Number Indicator Shows which preset station that has been selected . Band Indicator Shows which band the radio is tuned to . AM, FM 1, 2, 3 or Weather Band Frequency Indicator Shows which frequency the radio is tuned . - Page 12 CONCERTONE ® Auto Scan Push and Hold [SETUP] button longer than 3 seconds, the unit will select AUTO SCAN function . The difference between Auto Seek and Auto Scan is that, under Auto Scan , the unit will automatically preset any available station in order from low to high until all the preset positions have been filed, but the Auto Seek function will not store stations.
-
Page 13: Connecting The Unit
CONCERTONE ® CONNECTING THE UNIT Very Important Notice: It is strongly suggested that this unit be installed by an authorized, professional technician . Incorrect installation may cause serious damage to this unit, and possible danger to human life and your vehicle . -
Page 14: Specifications
CONCERTONE ® Specification General Dimension 6 5/8” 170mm (W) X 9 3/8” 240mm (H) X 4 1/2” 125mm (D) Net Weight 6 lbs 3 .35Kg Voltage 14 .4V DC (10 .8V – 15 .1V allowable) Maximum Current Consumption Audio 10 separate Digital Amplifiers Maximum Power Output 50W x 10 at 4 Ω... -
Page 15: Warnings And Precautions
Due to the dangerous voltage inside this player, DO NOT open the cabinet by yourself to prevent electrical shock . Please contact professional technician to perform any service needed . Please use the components recommended by CONCERTONE when replacement is necessary . · Please turn unit off when not in use . -
Page 16: Warranty
WARRANTY ONE (1) YEAR LIMITED WARRANTY CONCERTONE® warrants to the original retail purchaser of this unit that it or any part therein, under normal use and conditions, be proven defective in material or workmanship within 1 year from the date of original purchase, such defect/s will be repaired or replaced at CONCERTONE’S®... -
Page 17: Wall Plates
CONCERTONE ® WALL PLATES The following accessories are optional equipment for the ZX300 . ZW100 XM WALL PLATE The ZW100 Wall Plate is an optional plate to be used with the Delphi SKY-Fi or SKY-Fi II XM Radio Satellite Receivers . - Page 18 CONCERTONE ® NOTES...
- Page 19 CONCERTONE ® NOTES...
-
Page 20: Operating Instructions
CONCERTONE ® OPERATING INSTRUCTIONS DVD/CD/MP3/TV/AM/FM/WEATHER BAND HIGH POWER DIGITAL SURROUND SOUND CONCERTONE® 1803 Century Drive Goshen, IN 46528 574-534-3167...
