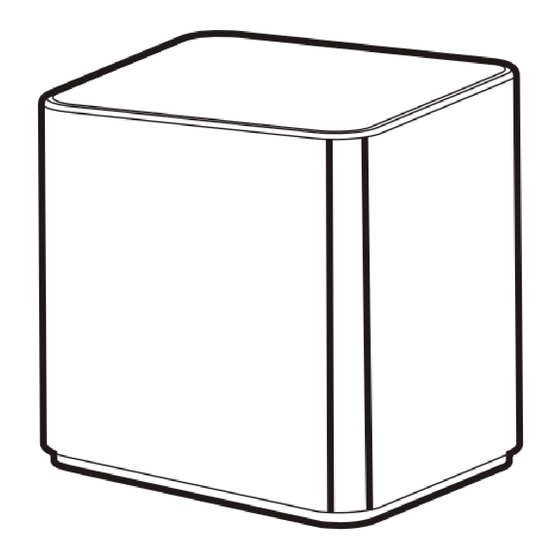

BT-333
Typhoon
Bluetooth Speaker
User's Guide
www.franklin.com
www.franklin.com/eu
1. Unpacking
You will find the following items in the package:
Bluetooth
USB
Audio
speaker
cable
cable
2. Turning On/Off the Speaker
Slightly push the speaker down from the top
to reveal the control panel of the speaker. The
speaker is then automatically turned on with the
blue LED indicator activated.
To turn off the speaker – push the speaker
down from the top to hide the control panel.
1
Advertisement
Table of Contents
Related Manuals for Franklin Typhoon BT-333
Summary of Contents for Franklin Typhoon BT-333
- Page 1 BT-333 Typhoon Bluetooth Speaker User’s Guide www.franklin.com www.franklin.com/eu 1. Unpacking You will find the following items in the package: Bluetooth Audio speaker cable cable 2. Turning On/Off the Speaker Slightly push the speaker down from the top to reveal the control panel of the speaker. The speaker is then automatically turned on with the blue LED indicator activated.
-
Page 2: General Controls
3. General Controls 1. LED indicator 2. Decreases the volume 3. Skips to previous track 4. Starts or pauses playback, receives calls 5. Increases the volume 6. Skips to next track 7. Microphone 8. External audio input jack 9. Mini USB port 10. -
Page 3: Bluetooth Pairing
• The blue LED indicator of the speaker blinks quickly. The speaker is ready for pairing. 2. Turn on the Bluetooth feature of the device you want to connect with the speaker. • Select “Franklin Typhoon” on your device for pairing. • No passcode is required. • When pairing is successful, you hear a beep sound and the blue LED indicator stays lit. -
Page 4: Disconnecting Bluetooth Connection
quickly. The speaker is ready for pairing. 2. Locate the NFC antenna and turn on the NFC feature of your phone. 3. Place the phone on top of the speaker. Align the NFC antennas as close as possible. You hear a “cling” sound when they match. -
Page 5: Listening To Music
control panel. • The pairing memory with your phone is kept. Next time when you turn on the speaker, it will automatically connect to your phone (with the Bluetooth feature turned on) again. 5.4 Pairing a New Device 1. Turn off the Bluetooth feature on your phone. 2. -
Page 6: External Audio Input
2. Speak to the microphone during a call. 3. Press or to decrease or increase the volume. 4. Press and hold to switch the call back to the phone. Press to resume call from the speaker. 5. Press once to end the call. 8. - Page 7 When listening to music, press once to start or pause playback With a call, press once to receive or end the call. Press and hold to switch the call back to the phone Press and hold to restart Bluetooh pairing 10.
-
Page 8: Troubleshooting Tips
LAN, other 2.4 GHz wireless device, or microwave oven. 12. Specifications Model/Name: BT-333 Typhoon Bluetooth Speaker • Size: 75 x 75 x 81 mm • Weight: 295 g • Bluetooth: 3.0+EDR Frequency response: 100 Hz ~ 20,000 Hz •... -
Page 9: Operating And Storage Temperatures
10 meters. Maximum operating range may vary depending on obstacles (such as person, metal, wall, etc.) or electromagnetic environment (such as wireless LAN). © 2013 Franklin Electronic Publishers, Inc. Burlington, N.J. 08016-4907 U.S.A. All rights reserved. Imported to the European Community by: Franklin Electronic Publishers GmbH, Kapellenstr. -
Page 10: Product Care
listed below. Otherwise, the device may become hot and could result in serious injury, death, or damage to property. Keep also the device accessories away from heat sources. • Device operating: 32 to 95˚F (0 to 35˚C) • Device storage: 23 to 122˚F (-5 to 50˚C) 14. Product Care Your device is designed to be light, compact and durable. -
Page 11: Battery Precautions
Battery Disposal Do not dispose of batteries with normal household waste. Please obey your local regulations when disposing of used batteries. Please visit www.franklin.com/ eu to contact Franklin or its distributors to get information for battery disposal and/or replacement. However, shipping and handling expenses might apply. -
Page 12: Fcc Notice (U.s. Only)
damaged. Dispose of batteries according to local regulations. Do not dispose as household waste. 17. FCC Notice (U.S. only) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 13 18. EU notice This product is CE marked according to the provisions of the R & TTE Directive(1999/5/EC). Hereby, Franklin Electronic Publishers Inc., declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
- Page 14 Limited Warranty (EU & Switzerland) Notwithstanding the disclaimer of warranties above, this product, excluding batteries and liquid crystal display (LCD), is guaranteed by Franklin to be free of defects in materials or workmanship for a period of two years from the date of purchase. It will be repaired or replaced with an equivalent product (at Franklin’s option) free of charge for any defect in workmanship or materials during that time.
- Page 15 Unit 4, 25 Gibbes Street, Chatswood, NSW 2067, Australia Contact person: Service Manager Tel: 1800 882 588, Email: service_au@franklin.com Charges will be made for all repairs unless valid proof of purchase is provided. Your product will be repaired or replaced with an equivalent product (at Franklin’s option) free of charge for...
- Page 16 Franklin Electronic Publishers, Inc. One Franklin Plaza, Burlington, NJ 08016-4907, USA TEL: 1-800-266-5626 URL: http://www.franklin.com DECLARATION OF CONFORMITY We, Franklin Electronic Publishers, Inc., One Franklin Plaza, Burlington, NJ 08016-4907, U.S.A. declare under our sole responsibility that the product: Model: BT-333 to which this declaration refers conforms with the following standards: EMC: EN 301489-1: V1.9.2 EN 301489-17: V2.2.1...
