Summary of Contents for Anthony Gallo Acoustics Classico CL-C

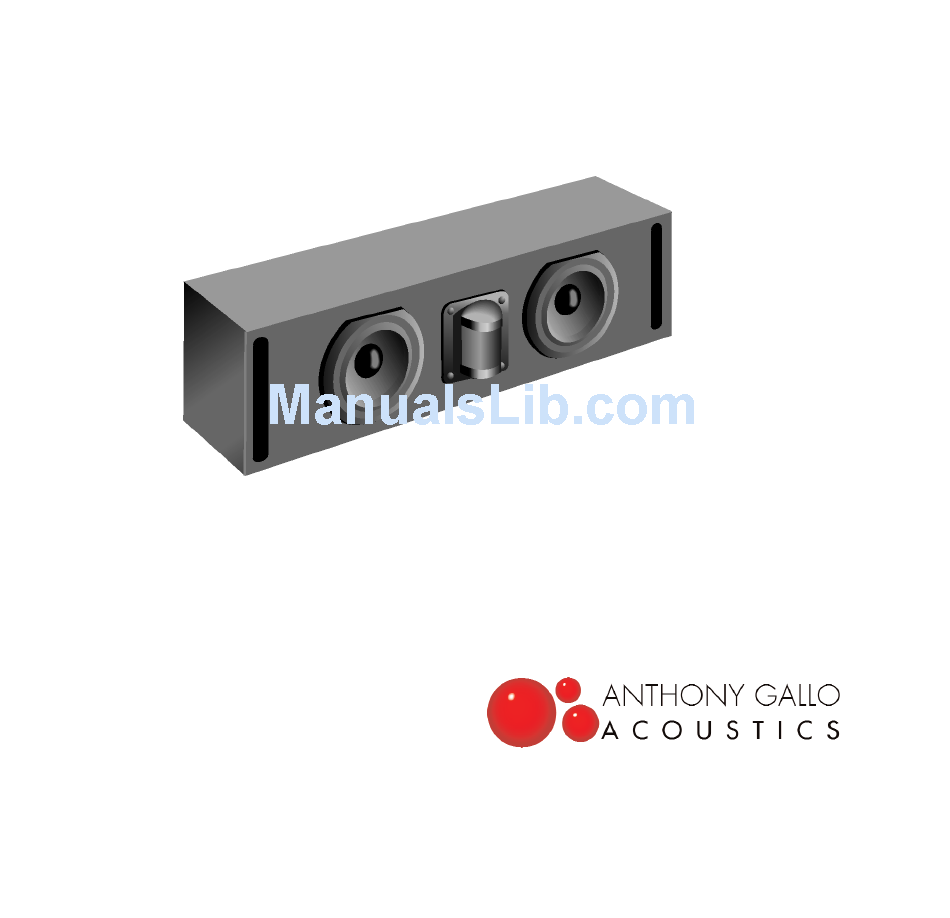

- Page 1 Classico CL-C Loudspeaker Owner’s Manual www.roundsound.com Anthony Gallo Acoustics, 20841 Prairie Street, Chatsworth, CA 91311 USA Phone (818) 341-4488 • Fax (818) 341-2188...
-
Page 2: Table Of Contents
Contents Introduction...................1 Welcome to Anthony Gallo Acoustics ..........1 Proprietary AGA Technology ...............2 General Guidelines for Placing Your Classico CL-C......4 Installation.....................7 Unpacking and Inspection ..............7 Additional Items Required for Installation ...........7 Attaching the Grilles................7 Connecting Your Classico CL-C ............8 Speaker Settings in a Surround Sound Receiver or Processor ..9 Surround Sound Receiver or Processor Speaker Settings .....9... - Page 3 Copyright Information Copyright © 2011 Anthony Gallo Acoustics. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Anthony Gallo Acoustics.
-
Page 4: Introduction
Anthony Gallo Acoustics Classico speakers offer that typical loudspeakers don't. And once you're done reading, if you have any questions about your new Classico CL-C speaker don't hesitate to contact your local Anthony Gallo Acoustics dealer. Or, if you wish, you can call us directly at 1-818-341-4488 or e-mail techsupport@roundsound.com. -
Page 5: Proprietary Aga Technology
Proprietary AGA Technology The Classico Series was designed from the outset to deliver the exceptional performance AGA has become famous for while presenting a more traditional look. This makes it easy to incorporate our Classico series in practically any environment. All of the technology used in AGA products was specifically developed by Anthony Gallo and cannot be found in any other loudspeakers. - Page 6 CDT 3™ Tweeter: The Classico CL-C uses our patented CDT Cylindrical Diaphragm Transducer (CDT 3) for high-frequency reproduction. On its own, the CDT 3, with its cylindrically shaped high-frequency diaphragm, delivers smooth treble response across an amazing 300-degree range! Once it's built into the Classico models, it provides a full 180°...
-
Page 7: General Guidelines For Placing Your Classico Cl-C
No matter which placement option you choose, please keep the Classico CL-C at least two inches from the wall or surface behind it. Sonics: In cinema (and many television) sound tracks, the center channel is primarily tasked with delivering up to 85% of the dialogue and 65% of the special effects. - Page 8 Although the CL-C can be mounted at any reasonable height, integration (and therefore immersion and believability) of the audio and video will be maximized if the CL-C is positioned with its tweeter near to (or aimed at) ear height in the seated position. Placement of the Left and Right Front Speakers: If the setting lends itself, try positioning the left and right front speakers at the opposite ends of the base of an equilateral triangle whose tip is at the prime listening position (Figure 2).
- Page 9 CL-2s for the primary surround channels, and a Classico subwoofer is shown in Figure 3. Classico CL-2 Classico CL-2 Loudspeaker Loudspeaker Classico CLS-10 Subwoofer Classico CL-C Loudspeaker Classico CL-2 Classico CL-2 Loudspeaker Loudspeaker Figure 4. Example of a Surround Sound (5.1 Configuration) Setup...
-
Page 10: Installation
Installation Unpacking and Inspection Each Classico CL-C and its accompanying owners' manual are packaged together in a single carton. Carefully inspect them immediately after unpacking. If you note any concerns or shipping damage, please contact your dealer. Do not install or use your CL-C if it appears to be damaged. -
Page 11: Connecting Your Classico Cl-C
Connecting Your Classico CL-C Caution: Failure to turn off the receiver or amplifier and unplug it from the power outlet before connecting your speakers may cause damage to your system. You should always turn the receiver or amplifier off before making or changing any connections. -
Page 12: Speaker Settings In A Surround Sound Receiver Or Processor
Crossover Frequency: If the electronics allow you to choose the crossover frequency for the speakers, start between 80 and 100 Hz for your Classico CL-C. Listen to well-recorded information with good bass content and evaluate the deep bass, mid-bass, and the... - Page 13 You may want to try experimenting with various crossover frequencies (within the range of 80 Hz to 120 Hz) to get the best sonics and dynamics in your room. We recommend keeping the system crossover below 120 Hz, unless you are using an AGA CLS-10 or CLS-12 subwoofer.
-
Page 14: Breaking In Your Cl-C
Breaking in Your CL-C Your new Gallo loudspeakers require a short period of operating time (a “break-in” period) to develop their full sound potential. The break-in period requires approximately 50 hours of operation, although you can expect to hear a marked increase in performance within the first 20 hours. -
Page 15: Classico Cl-C Specifications
Classico CL-C Specifications Frequency Response 38 Hz – 22 kHz ±3 dB in-room Impedance 4 Ohms, nominal Sensitivity 92 dB at 2.83 volts, 1 meter Power Handling 200 watts undistorted amplifier power Minimum Suggested Power 15 watts RMS Tweeter CDT 3 Cylindrical Diaphragm Transducer, 180°... -
Page 16: Warranty And Extended Service Agreement
Warranty and Extended Service Agreement AGA speakers are covered by a one-year Limited Warranty against defects in workmanship and manufacturing. In addition, we offer registered Gallo owners a free four-year Extended Service Agreement. In order to qualify for the Extended Service Agreement you must fill out and return the warranty card or register on our web site: www.roundsound.com/product-registration.php. -
Page 17: Service
This warranty and the Extended Service Agreement will be void if: 1. The defect is a result of abuse, misuse, damage in transit, defective associated equipment, faulty installation, the use of the unit with equipment for which it was not intended, or acts of God.
