Summary of Contents for Anthony Gallo Acoustics Classico CL-3

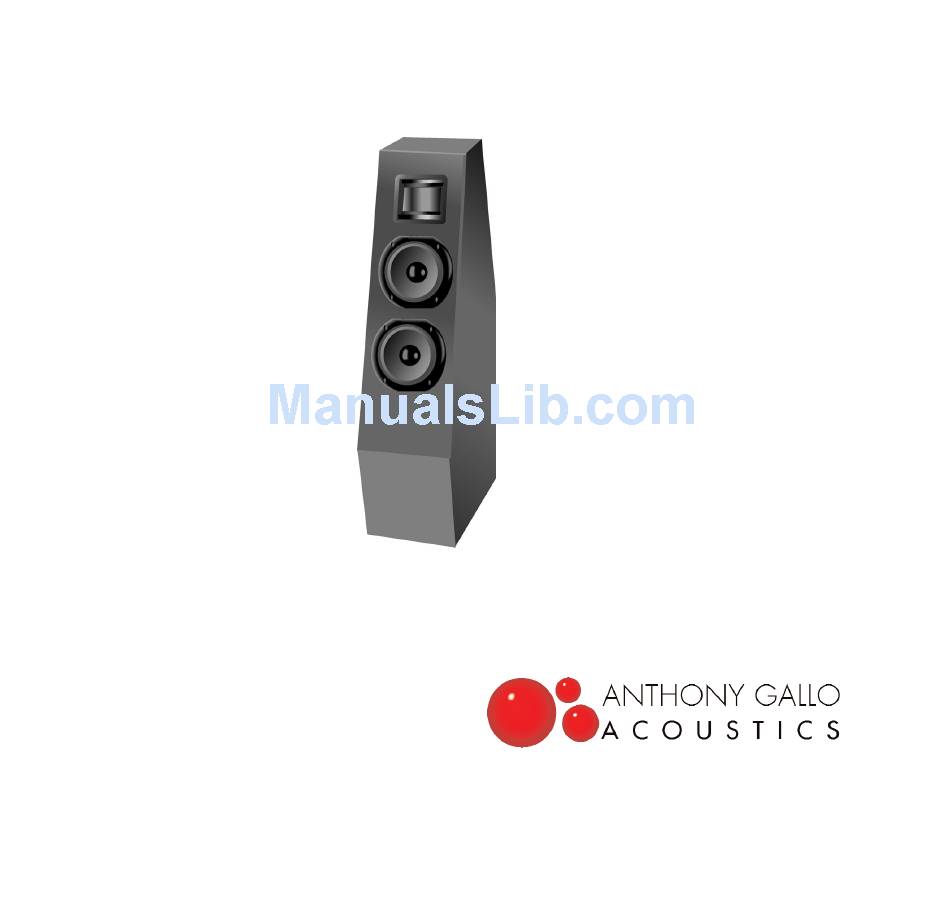

- Page 1 Classico CL-3 Loudspeakers Owner’s Manual www.roundsound.com Anthony Gallo Acoustics, 20841 Prairie Street, Chatsworth, CA 91311 USA Phone (818) 341-4488 • Fax (818) 341-2188...
-
Page 2: Table Of Contents
Speaker Settings in a Surround Sound Receiver or Processor ..10 Surround Sound Receiver or Processor Speaker Settings ....10 Breaking In Your CL-3s ..............12 Enjoy!....................12 Classico CL-3 Specifications..............13 Warranty and Extended Service Agreement ........14 Statement of Warranty: Anthony Gallo Acoustics Limited Warranty..14 Service....................15... - Page 3 Copyright Information Copyright © 2011 Anthony Gallo Acoustics. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Anthony Gallo Acoustics.
-
Page 4: Introduction
Anthony Gallo Acoustics Classico speakers offer that typical loudspeakers don't. And once you're done reading, if you have any questions about your new Classico CL-3 speakers don't hesitate to contact your local Anthony Gallo Acoustics dealer. Or, if you wish, you can call us directly at 1-818-341-4488 or e-mail techsupport@roundsound.com. -
Page 5: Proprietary Aga Technology
Proprietary AGA Technology The Classico Series was designed from the outset to deliver the exceptional performance AGA has become famous for while presenting a more traditional look. This makes it easy to incorporate our Classico series in practically any environment. All of the technology used in AGA products was specifically developed by Anthony Gallo and cannot be found in any other loudspeakers. - Page 6 CDT 3™ Tweeter: The Classico CL-3 uses our patented CDT Cylindrical Diaphragm Transducer (CDT 3) for high-frequency reproduction. On its own, the CDT 3, with its cylindrically shaped high-frequency diaphragm, delivers smooth treble response across an amazing 300-degree range! Once it's built into the Classico models, it provides a full 180°...
-
Page 7: General Guidelines For Placing Your Classico Cl-3S
No matter which placement option you choose, please keep the Classico CL-3 at least four inches from the wall or surface behind it. Placement: Your Classico CL-3s should be placed on the floor, sitting on the isolating gel pads provided. - Page 8 Classico CL-3 Classico CL-3 Loudspeaker Loudspeaker Figure 2. Example of a Stereo (2.0 Configuration) Setup System Examples: An example of a stereo (2.0 configuration) setup using two Classico CL-3s is shown in Figure 2. A stereo system with a subwoofer (2.1 configuration) setup using two Classico CL-3s and a Classico subwoofer is shown in Figure 3.
- Page 9 Classico CL-3 Classico CL-3 Loudspeaker Loudspeaker Classico CLS-10 Subwoofer Figure 3. Example of a Stereo with Subwoofer (2.1 Configuration) Setup...
- Page 10 Classico CL-3 Classico CL-3 Loudspeaker Loudspeaker Classico CLS-10 Subwoofer Classico CL-C Loudspeaker Classico CL-2 Classico CL-2 Loudspeaker Loudspeaker Figure 4. Example of a Surround Sound (5.1 Configuration) Setup...
-
Page 11: Installation
Installation Unpacking and Inspection Each Classico CL-3 and its accompanying owners' manual are packaged together in a single carton. Carefully inspect them immediately after unpacking. If you note any concerns or shipping damage, please contact your dealer. Do not install or use your CL-3s if they appear to be damaged. -
Page 12: Connecting Your Classico Cl-3S
Connecting Your Classico CL-3s Caution: Failure to turn off the receiver or amplifier and unplug it from the power outlet before connecting your speakers may cause damage to your system. You should always turn the receiver or amplifier off before making or changing any connections. -
Page 13: Speaker Settings In A Surround Sound Receiver Or Processor
Even though the Classico CL-3 is capable of good bass performance, the quantity and dynamics of many bass special effects in soundtracks can be extremely demanding. - Page 14 You may want to try experimenting with various crossover frequencies (within the range of 80 Hz to 50 Hz) to get the best sonics and dynamics in your room. We recommend keeping the system crossover below 100 Hz, unless you are using an AGA CLS-10 or CLS-12 subwoofer.
-
Page 15: Breaking In Your Cl-3S
Breaking in Your CL-3s Your new Gallo loudspeakers require a short period of operating time (a “break-in” period) to develop their full sound potential. The break-in period requires approximately 50 hours of operation, although you can expect to hear a marked increase in performance within the first 20 hours. -
Page 16: Classico Cl-3 Specifications
Classico CL-3 Specifications Frequency Response 32 Hz – 22 kHz ±3 dB in-room Impedance 4 Ohms, nominal Sensitivity 88 dB at 2.83 volts, 1 meter Power Handling 200 watts undistorted amplifier power Minimum Suggested Power 20 watts RMS Tweeter CDT 3 Cylindrical Diaphragm Transducer, 180°... -
Page 17: Warranty And Extended Service Agreement
Extended Service Agreement. Anthony Gallo Acoustics warrants this product to be free from defects in materials and workmanship under the specified terms stated above. Anthony Gallo Acoustics will, at its option, repair or replace this product and/or any parts proven to be defective in materials or manufacture. -
Page 18: Service
If this is not the case please contact us directly. In the USA you can contact AGA directly at 1-818-341-4488. 3. If you choose to, you can send your product to Anthony Gallo Acoustics Factory Service. Carefully pack the product in its original carton, obtain a Return Authorization as detailed below and ship it to our service center.
