Heat & Glo SL-750TRS-IPI-E Owner's Manual

Heat & Glo SL-750TRS-IPI-E Owner's Manual

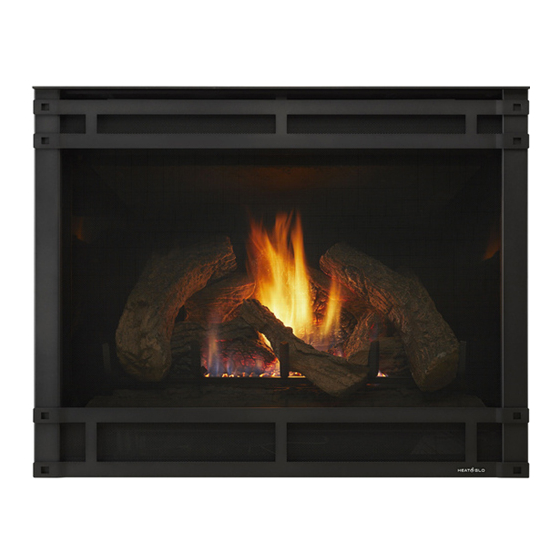

Heat & glo direct vent gas appliance heater
Hide thumbs Also See for SL-750TRS-IPI-E:
Table of Contents

Advertisement

Models:
SL-750TRS-IPI-E
SL-550TRS-IPI-E
SL-750TRS-E
SL-550TRS-E
SL-350TRS-IPI
• Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instructions
and the manufactured home construction and safety standard,
Title 24 CFR, Part 3280 or Standard for Installation in Mobile
Homes, CAN/CSA Z240MH, in Canada.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08
NOTICE
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
Owner's Manual
• Leave this manual with
party responsible for use
and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fi xed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies suggests NFI certifi ed or factory trained
professionals, or technicians supervised by an NFI
certifi ed professional.
Installation and Operation
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-750TRS-IPI-E and is the answer not in the manual?

Questions and answers

Summary of Contents for Heat & Glo SL-750TRS-IPI-E

  • Page 1 Technologies suggests NFI certifi ed or factory trained This appliance is only for use with the type(s) of gas indicated professionals, or technicians supervised by an NFI on the rating plate. certifi ed professional. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 2 AL TI TUDE : 0-0000 FT . 0000-0000FT . (Modele): MAX. INPU T BTUH: 00,000 00,000 MIN. INPU T BTUH: 00,000 00,000 Serial ORIFICE SIZE: #XXXXX #XXXXX XXXXXXXX (Serie): Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 3: Table Of Contents

    E. Contact Information ......90 = Contains updated information. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 4: Listing And Code Approvals

    Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and appliance and to replace any part of the control system and the CAN/CGA B149 Installation Codes in Canada. any gas control which has been under water. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 5: Non-Combustible Materials Specifi Cation

    • A 110-120 VAC circuit for this product must be protected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 6: Requirements For The Commonwealth Of Massachusetts

    VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB- of the installation. STRUCTIONS”. See Gas Connection section for additional Common- wealth of Massachusetts requirements. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 7: Getting Started

    Level 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws Manometer Voltmeter Tape measure Noncorrosive leak check solution One 1/4 inch female connection (for optional fan). Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 8: Framing And Clearances

    SL-550TRS-E 1067 1511 1117 1581 1232 1737 Installation 39-1/2 55-7/8 62-1/4 16-1/4 48-1/2 68-3/4 13-1/2 7-1/2 SL-350TRS-IPI 1003 1413 1117 1581 1232 1737 Figure 3.1 Appliance Locations Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 9: Constructing The Appliance Chase

    Inches SL-550TRS-IPI-E SL-550TRS-E Millimeters 8-5/8 32-3/4 28-1/4 16-1/4 Inches SL-350TRS-IPI Millimeters * Dimension when rear venting with one 90º elbow Figure 3.2 Clearances to Combustibles (Vertical Venting) Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 10: Elevated Hearth Systems

    NOTE 1. Add dimensions to Exterior Wall Hole (Figure 6.2) and Rough Opening Height (Figure 3.2). NOTE 2. Verify Marble Cut Lengths on site prior to cutting. NOTE 3. Dimensions assume use of a 3/4 in. Hearth Pad. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 11: Mantel Projections

    MINIMUM UNLIMITED 1/2 in. Note: Clearance from opening to perpendicular wall. Figure 3.6 Wall Projection (Acceptable on one side of opening.) NON-COMBUSTIBLE ZONE Figure 3.4 Non-Combustible Zone Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 12: Termination Locations

    20 in. min. Horizontal distance between terminations 20 in. 24 in. min. Distance to perpendicular wall 18 in. 18 in. Vertical distance between terminations Figure 4.3 Multiple Vertical Termination Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 13 Figure 4.4 Minimum Clearances for Termination CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THAT A VINYL PROTECTOR KIT BE INSTALLED. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 14: Vent Information And Diagrams

    DVP12A 3 to 12 76 to 305 DVP12MI 3 to 12 76 to 305 DVP24MI 3 to 24 76 to 610 Figure 5.2 DVP Pipe Effective Length Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 15: Use Of Flex Vent

    However, the vent at- C L E A R A N C E tachment point and the fi restop loca- tion are considered to be supports. Figure 5.3 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 16: Vent Diagrams

    • When using DVP-TB1 termination cap on top vented fi replaces, a three foot minimum vertical vent section is required before installing fi rst elbow. Figure 5.4 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 17 • When using DVP-TB1 termination cap on top vented fi replaces, a three foot minimum vertical vent section is required before installing fi rst elbow. INSTALLED HORIZONTALLY Figure 5.5 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 18 • When using SLP-HRC-SS and SLP-HRC-ZC- SS termination caps on top vented fi replaces, a one foot minimum vertical vent section is required before installing fi rst elbow. Figure 5.6 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 19 fl ame height. If the vent confi guration has a total vertical of 15-60 feet, an exhaust restrictor may be needed. The exhaust restrictor can be located in the appliance manual bag. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 20 Note: There MUST be a 25% reduction in total H when using fl ex vent except when using the simple up and out installation (see Figure 5.3). Figure 5.8 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 21 4.3 m Maximum = 14 ft. (4.3 m) *No specifi c restrictions on this value EXCEPT V CANNOT exceed 40 ft. (12.2 m). INSTALLED HORIZONTALLY Figure 5.9 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 22 H when using components only. fl ex vent except when using the simple up and out installation (see Figure 5.3). Figure 5.17 Figure 5.17 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 23 6-1/2 ft. 2.1 m 14 ft. 4.3 m Maximum = 7-1/2 ft. (2.3 m) Maximum = 14 ft. (4.3 m) = 40 ft. (12.2 m) Figure 5.12 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 24 610 mm 5-1/2 ft. 1.7 m 3 ft. 914 mm 7-1/2 ft. 2.3 m Maximum = 7-1/2 ft. (2.3 m) Maximum = 40 ft. (12.2 m) Figure 5.14 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 25 2.3 m 3 ft. 914 mm 7 ft. 2.1 m 14-1/2ft. 4.4 m Maximum = 7-1/2 ft. (2.3 m) Maximum = 40 ft. (12.2 m) Figure 5.16 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 26: Vent Clearances And Framing

    Top: 2-1/2 in. (64 mm) Bottom: 1/2 in. (13 mm) Sides: 1 in. (25 mm) Figure 6.1 Horizontal Venting Clearances To Combustible Materials Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 27: Wall Penetration Framing

    * Shows center of vent framing hole for top or rear venting. The center of the hole is one (1) inch (25.4 mm) above the center of the horizontal vent pipe. Figure 6.2 Exterior Wall Hole Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 28: Vertical Penetration Framing

    BEFORE OR AFTER INSTALLATION OF VENT SYSTEM 3 FASTENERS PER SIDE CEILING FIRESTOP CEILING FIRESTOP INSTALLED BELOW CEILING INSTALLED ABOVE CEILING Figure 6.4 Installing the Attic Shield Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 29: Install Attic Insulation Shield

    • Bend all tabs inward 90° around the top of the shield. These tabs must be used to prevent blown insulation from getting between the shield and vent pipe, and to maintain air space clearance. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 30: Appliance Preparation

    The heat shield must remain in Figure 7.5 Remove the insulation basket and white insula- the vertical position. tion from the center vent pipe. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 31: Rear Vent

    Figure 7.8 Fold the tabs toward the center of the fi re plug up against the appliance and over the tabs. Use two self- (90°) and remove the insulation gasket. tapping screws to secure gasket to outer wrap. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 32: Securing And Leveling The Appliance

    • Do NOT notch into the framing around the appliance spacers. Failure to keep insulation, framing or other material away from the appliance may cause fi re. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 33: Installing Vent Pipe (Dvp And Slp Pipe)

    fl ue at the horizontal elbow joint to prevent the elbow from rotating. Use screws no longer than 1/2 in. (13 mm). If predrilling screw holes, DO NOT penetrate inner pipe. INCORRECT Figure 8.4 Seams Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 34: Assemble Vent Sections (Slp Pipe Only)

    • Only outer pipes are sealed, sealing the inner fl ue is not required. • All unit collar, pipe, slip section, elbow and cap outer fl ues shall be sealed. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 35: Secure The Vent Sections

    Figure 8.10 Rotate Seams for Disassembly Figure 8.8 Securing Vertical Pipe Sections Figure 8.11 Align and Disassemble Vent Sections Figure 8.9 Securing Horizontal Pipe Sections Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 36: Install Decorative Ceiling Components (Slp Only)

    fl aps and the roof. WARNING! Risk of Fire! Clean out ALL materials from Figure 8.13 inside the support box and complete the vertical vent run and termination. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 37: Install Metal Roof Flashing

    • Caulk the perimeter of the fl ashing where it contacts the roof surface. See Figure 8.15. Figure 8.17 Assembling the Storm Collar Around the Pipe Figure 8.17 Assembling the Storm Collar Around the Pipe Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 38: Install Rf4-8

    (TOP OF BOOT) galvanized base fl ashing. SHINGLES TRIMMED FLASHING OVER SHINGLES OVER SHINGLES FLASHING Figure 8.22 Installation Complete Figure 8.19 Trim Rubber Boot Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 39: Install Vertical Termination Cap

    • Once the pipe section and the termination cap have been connected, slide the wall thimble up to the interior wall surface and attach with screws provided. See Figure 8.24. Figure 8.24 Wall Thimble Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 40: Install Horizontal Termination Cap

    DVP-TRAP1 can adjust 1-1/2 in. (3-1/8 to 4-5/8 in.) DVP-TRAP2 can adjust 4 in. (5-3/8 to 9-3/8) DVP-HPC1 can adjust 2-1/8 in. (4-1/4 to 6-3/8) DVP-HPC2 can adjust 4-1/8 in. (6-3/8 to 10-1/2) Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 41: Gas Information

    5.0 inches 11.0 inches Minimum inlet pressure w.c. w.c. 14.0 inches 14.0 inches Maximum inlet gas pressure w.c. w.c. 3.5 inches 10.0 inches Manifold pressure w.c. w.c. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 42 Do NOT change the valve settings. • This valve has been preset at the factory. • Changing valve settings may result in fi re hazard or bodily injury. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 43: Electrical Information

    National Electric Code ANSI/NFPA 70-latest edition or the Canadian Electric Code, CSA C221.1. PILOT THERMOPILE THERMOCOUPLE PIEZO THERMOSTAT WIRE ASSEMBLY VALVE Figure 10.2 Standing Pilot Ignition Wiring Diagram Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 44: Intellifi Re Ignition System Wiring

    3 volts. 120 VAC is required at junction box unless equipped with battery back-up. Figure 10.3 Intellifi re Ignition Wiring Diagram with Wall Switch or Thermostat Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 45 3 volts. 120 VAC is required at junction box unless equipped with battery back-up. Figure 10.4 Intellifi re Ignition Wiring Diagram with Remote Receiver Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 46: Junction Box Installation

    Figure 10.6 Junction Box Wired to Wall Switch fan switch connector (1/4 inch male) as shown. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 47: Finishing

    MINIMUM UNLIMITED 1/2 in. Note: Clearance from opening to perpendicular wall. Figure 11.4 Wall Projection (Acceptable on one side of opening.) NON-COMBUSTIBLE ZONE Figure 11.2 Non-Combustible Zone Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 48: Facing Material

    NOT be used as sheathing or facing in the non-combustible zone. • See Section 11 for proper clearances. • See Section 1 for combustible/non- combustible defi nitions. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 49: Splatter Guard

    Figure 11.6 Step 3. Crease fl aps on left and right sides of splatter guard Figure 11.9 using the scored line as the guide. See Figure 11.7. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 50 Carefully grab splatter guard on or near the vertical center on the left and right sides. Pull outward gently, but fi rmly, Figure 11.12 taking care not to tear or remove the inserted tabs. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 51: Doors

    Refer to Table 1 for X and Y dimensions. Stop fi nishing material fl ush with opening. Figure 11.19 Operable Hinge Door (Halston) Figure 11.17 Overlap Fit Door (Chad and Halston) Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 52: Appliance Setup

    Figure 12.1 Fan Wiring with Rheostat VARIABLE SPEED SWITCH JUNCTION BOX EMBER MATERIAL TEMPERATURE SENSOR SWITCH Figure 12.3 Placement of Embers BLUE Figure 12.2 Detail of Fan Wiring with Rheostat Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 53: Install Refractory

    RETAINER TAB box left wall such that it is against the back refractory (see Figure 12.6). Figure 12.8 Step 4. Install logs according to the install manual. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 54: Positioning The Logs

    Log # 3 should rest on log # 2, as shown above. The tip of on the top of log #1. Swing the center branch toward the log #3 should touch log # 2. burner (see above). 2113-935C Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 55 Log #4 (SRV2113-703): Locate the notch on the bottom of log # 4. Mate the notch with the shoulder screw that is located on the burner top. Mate the rear groove with the far right grate tine as shown above. Apply the supplied lava rock as shown above. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 56 LOG #2 (SRV2065-702) Place log #2 on the grate bar and push it back against the refractory. The pilot should be centered within the large notch on log #2. 2065-935i 11/07 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 57 LOG #5 (SRV2065-705) Place log #5 on log #2. The front left of the log will rest on log #4. Log 5 must be Figure 3. pushed back against refractory. See Figure 3. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 58 LOG #2 (SRV2066-702) Place log #2 on the grate bar and push it back against refractory. The pilot should be centered within the large notch on log #2. 2066-935H 11/07 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 59 LOG #5 (SRV2066-705) Place log #5 on log #2. Log #5 Figure 3. will mate with the grooves located on the top side of Log #4. See Figure 3. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 60: Glass Assembly

    S H U TTE R A D JU S TM E N T Figure 12.3 Shutter settings SL-350TRS-IPI 3/16 in. SL-350TRS-IPI (LP) 1/4 in. SL-550TRS-IPI-E 3/8 in. SL-550TRS-E SL-550TRSIPILPE Fixed SL-550TRSLP-E SL-750TRS-IPI-E 3/8 in. SL-750TRS-E SL-750TRSLPIPIE Fixed Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 61: Operating Instructions

    • Glass door MUST be in place and sealed before operating appliance. • Only use glass door certifi ed for use with appliance. • Glass replacement should be done by qualifi ed technician. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 62: Lighting Instructions (Ipi)

    For additional information on operating your Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Final inspection by Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 63 Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. 4. Push in gas control knob slightly and turn clock- wise to OFF”. DO NOT force. 5. Close control access panel. Final inspection by 464-903H Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 64: After Appliance Is Lit

    In an Intellifi re ignition system it is normal to see the pilot fl ame, but it should turn off when continually? ON/OFF is turned off. In a standing pilot system the pilot will always stay on. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 65: Troubleshooting

    Take a reading at the thermopile leads. The read- ing should be 325 millivolts minimum. Replace the thermopile if the reading is below the minimum. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 66 Ensure that the glass is tightened properly on the unit, particularly on top corners. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 67: Intellifi Re Ignition System

    fl ame lifts from pilot hood, the circuit is broken. A wrong orifi ce or too high an inlet pressure can cause pilot fl ame to lift. The sensor rod may be contaminated. Clean sensor rod with emery cloth. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 68 Verify module is securely grounded to metal chassis of appliance. d. Module voltage output / Valve/Pilot Verify battery voltage is at least 2.7 volts. Replace batter- solenoid ohms readings. ies if voltage is below 2.7. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 69: Maintaining And Servicing Appliance

    • Glass • Air passageways, grilles, control compartment • Burner, burner ports Risk of: • Fire • Delayed ignition or explosion • Exposure to combustion fumes • Odors Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 70: Maintenance Tasks

    2. Replace batteries in remote transmitters and battery-powered receivers. 3. Verify batteries have been removed from battery back-up IPI systems to prevent premature battery failure or leaking. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 71: Reference Materials

    8-3/4 8-13/16 8-13/16 16-1/4 16-5/16 16-5/16 22-3/4 25-3/4 30-3/4 11-3/8 12-7/8 15-3/8 15-7/8 15-7/8 15-7/8 6-5/8 6-5/8 6-5/8 2-1/8 2-3/16 2-3/16 30-1/16 33-9/16 Figure 16.1 Appliance Dimensions Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 72: Vent Components Diagrams

    14 in. (356 mm) 5 in. 12 in. (127 mm) (305 mm) 6 in. (152 mm) DVP-HVS (Vent Support) DVP-WS (Wall Shield Firestop) Figure 16.2 DVP vent components Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 73 5-3/8 in. 9-3/8 in. Effective (305 mm) Trap2 Length 137 mm 238 mm DVP-TRAP Horizontal Termination Cap DVP-TRAP2 DVP-TRAP1 DVP-TRAPK2 DVP-TRAPK1 DVP-HPC2 DVP-HPC1 Figure 16.3 DVP vent components Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 74 Cap Shield DVP-TRAPFL Flashing 13-7/8 in. 9-1/2 in. (352 mm) (241 mm) 14 in. (356 mm) DVP-HSM-B Extended Heat Shield DRC-RADIUS Figure 16.4 DVP vent components Cap Shield Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 75 1 in. (25 mm) (222 mm) 7-3/4 to 10-3/8 in. (197 to 264 mm) 1-5/8 in. (41 mm) DVP-FBHT FireBrickTermination Cap DVP-HPC High Performance Cap Figure 16.5 DVP vent components Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 76 (381 mm) 267 mm 10-7/8 in. 276 mm SLP-HRC-SS SLP-HRC-ZC-SS HORIZONTAL TERMINATION CAP DVP-TB1 DVP-TB1 SL-2DVP SLP90 ASSEMBLY DVP-TB1 HORIZONTAL TERMINATION CAP Figure 16.7 SLP Series Vent Components Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 77 1524 SLP-FLEX-10 3048 DVP-HSM-B Extended Heat Shield SLP-HVS RF4-8 SLP-FS SLP-WS Horizontal Pipe Roof Flashing Ceiling Firestop Wall Shield Firestop Support Figure 16.8 SLP Series Vent Components Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 78 (For use with IPI and DSI appliances only.) Termination Cap Termination Cap SL-2DVP SLP-WT-BK Adapter Wall Thimble-Black DVP-FBHT DVP-FBHT SL-2DVP SLP90 SLP-FLEX-TRAP Horizontal Termination Kit Figure 16.9 SLP Series Vent Components ASSEMBLY Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 79 SL-350TRS-IPI Service Parts Beginning Manufacturing Date: June 2007 Service Parts Diagram Ending Manufacturing Date: ______ Log Set Assembly Part number list on following page. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 80: Service Parts List

    Conversion Kit LP LPK-350TRS-IPI Pilot Orifi ce NG 593-528 Pilot Orifi ce LP 593-527 Regulator NG NGK-DXV Regulator LP LPK-DXV Additional service part numbers appear on following page. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 81 2118-170 Module 593-592 Valve NG 750-500 Valve LP 750-501 Flex Ball Valve Assembly 302-320A Valve Bracket 2118-104 Orifi ce NG (#44) 582-844 Orifi ce LP (#55) 582-855 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 82 SL-550TRS-E, SL-550TRS-IPI-E Service Parts Beginning Manufacturing Date: June 2007 Service Parts Diagram Ending Manufacturing Date: ______ Log Set Assembly Part number list on following page. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 83: Service Parts List

    Conversion Kit LP LPK-550TRS-IPIE Pilot Orifi ce NG 593-528 Pilot Orifi ce LP 593-527 Regulator NG NGK-DXF Regulator LP LPK-DXF Additional service part numbers appear on following page. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 84 SL-750TRS-E, SL-750TRS-IPI-E Service Parts Beginning Manufacturing Date: June 2007 Service Parts Diagram Ending Manufacturing Date: ______ Log Set Assembly Part number list on following page. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 85 Conversion Kit LP LPK-750TRS-IPIE Pilot Orifi ce NG 593-528 Pilot Orifi ce LP 593-527 Regulator NG NGK-DXV Regulator LP LPK-DXV Additional service part numbers appear on following page. Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 86 3 Volt Transformer 593-593A Wire Assembly 593-590A Module 593-592 Valve NG 750-500 Valve LP 750-501 Thermostat Wire Assembly 2118-170 Flex Ball Valve Assembly 302-320A Valve Bracket 2118-104 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 87 2045-024 Flexible Gas Connector 530-302A Orifi ce NG (#40C) 582-840 SL-550TRS-E Orifi ce LP (#53C) 582-853 Orifi ce NG (#37C) 582-837 SL-750TRS-E Orifi ce LP (#52C) 582-852 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 88: Limited Lifetime Warranty

    • Adjustments, regular maintenance, cleaning and temporary repairs, or the failure to duplicate the problem in the home is not covered under this warranty. Page 1 of 2 4021-645A 09-01-08 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 89 If warranty service is needed, you should contact your installing dealer. If the installing dealer is unable to provide necessary parts or components, contact the nearest authorized HHT dealer or supplier. Page 2 of 2 4021-645A 09-01-08 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...
  • Page 90: Contact Information

    6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending. Printed in U.S.A. - Copyright 2008 Heat & Glo • SL-750TRS-IPI-E, SL-550TRS-IPI-E, SL-350TRS-IPI • 2120-901 Rev. F • 9/08...

This manual is also suitable for:

Sl-550trs-ipi-eSl-550trs-eSl-350trs-ipiSl-750trs-e

Table of Contents
