  • Page 1: User Manual

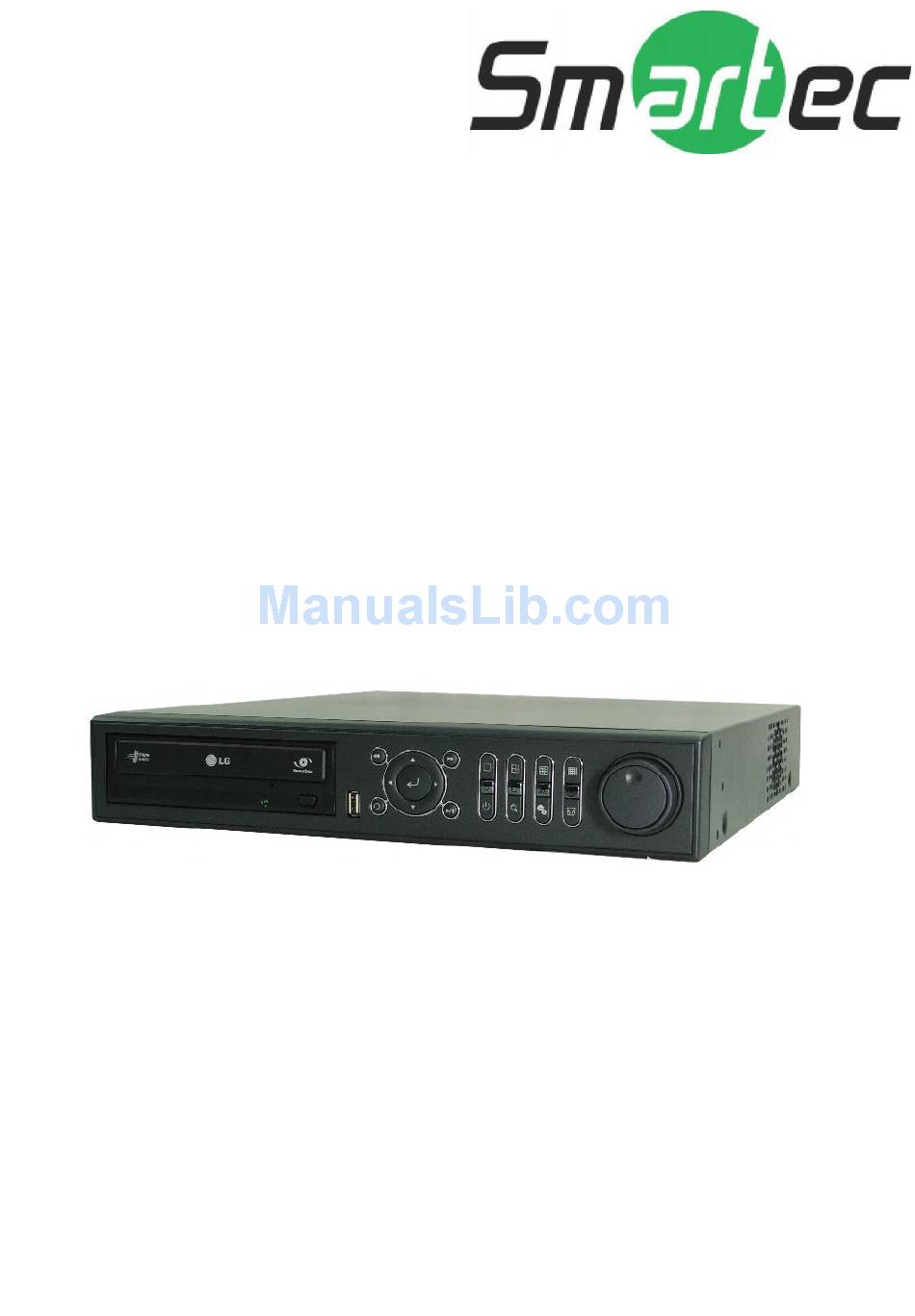

    Explanation for Each Function Smartec – four channel DVR STR-0484 (Front Panel, Rear Panel, IR Remote Controller) User Manual www.smartec-security.eu...

  • Page 2: Front Panel

    1. Front Panel The buttons on both the front panel of the DVR and IR Remote Controller have the same function, but may be different each other in shape. Buttons Functions DVD Burner Backup the recorded image by internal DVD burner (Option) USB Port USB port (Ver 2.0) for mouse operation or Image backup Fast Rewind...
  • Page 3 1.1.1. DVD Burner (Option) To install DVD Burner to backup the recorded image. Refer to “Setting > Backup” for detailed explanation. 1.1.2. IR Sensor Window (Remote Controller Receiver) To receive input signal from the IR remote controller 1.1.3. USB Port (Version 2.0) 1) To backup recorded images by using USB storage device (USB Memory Stick or USB HDD).

  • Page 4: Rear Panel

    2. Rear Panel Name Description Video-In Connect camera. (Supports NTSC/PAL) Video Loop-Out Loop-out of camera images Audio-In Connect the audio input device (with amplifier) Audio-Out Connect the audio output device (with amplifier) Video-Out Connect the CCTV monitor S-Video Connect to S-Video terminal Spot-Out Connect the spot monitor VGA-Out...
  • Page 5 2.1.4. Spot-Out The spot monitor can be used to display input images in automatic switching mode. 2.1.5. Audio-Out To connect audio output device Note Use of audio output device with an amplifier is recommended 2.1.6. S-Video One additional main monitor can be installed by using the S-Video output. 2.1.7.
  • Page 6 Note 9 10 11 12 13 14 15 16 17 18 19 20 Sensor Alarm Sensor 1 Alarm 1 (+) RS 485 D+ Sensor 2 Alarm 2 (+) RS 485 D- Sensor 3 Alarm 3 (+) Sensor 4 Alarm 4 (+) Sensor Ground (1~4) Alarm 1 (-) Sensor 5...

  • Page 7: Ir Remote Controller

    3. IR Remote Controller The function buttons of the IR Remote Controller are as below. Functions Power Button ID Selection Button Numeric Button PTZ Button Preset Button on PTZ Mode Focus Button on PTZ Mode Zoom (In & out) Button on PTZ Mode Preset Tour Button on PTZ Mode Direction Button (Left/Right/Up/Down) Enter (Selection) Button...
