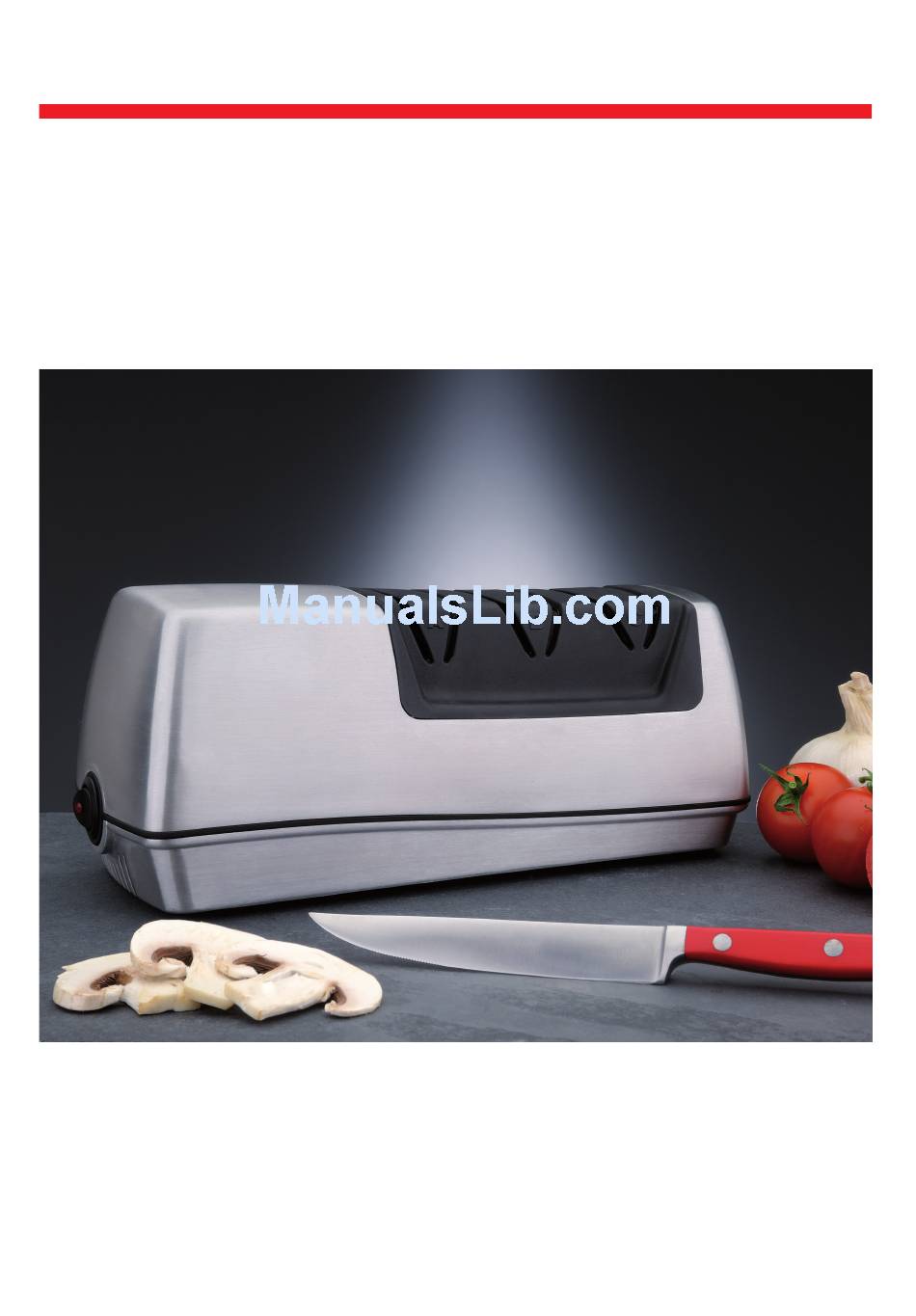

- Page 1 GASTROBACK ® Operating Instructions Design Knife Sharpener Art.-No. 41620 Design Knife Sharpener Read all provided instructions before first usage! Model and attachments are subject to change! For household use only...
-
Page 2: Table Of Contents
Read all provided instructions before first use! Model and attachments are subject to change! Carefully read all provided instructions before you start running the appli ance, and pay regard to the warnings mentioned in these instructions. Table of Contents Knowing Your New Knife Sharpener ....... .19 Important Safeguards . -
Page 3: Knowing Your New Knife Sharpener
These instructions for use will inform you about the various functions and features which makes it easy to take pleasure in your new Knife Sharpener. We hope that you will benefit from your new Knife Sharpener. Your Gastroback GmbH Knowing Your New Knife Sharpener Sturdy brushed die-cast alu-... -
Page 4: Important Safeguards
Important Safeguards Carefully read all instructions before operating this appliance and save for furt- her reference. Do not attempt to use this appliance for any other than the intended use, des- cribed in these instructions. Any other use, especially misuse, can cause severe injuries or dama- ge by electric shock, heat or fire. -
Page 5: Important Safeguards For Electrical Appliances
in a knives block). Do not leave knives unattended, when they are in reach of young children. • Do not use abrasive cleaners, cleaning pads (e.g. metal scouring pads) for cleaning. Always clean and dry the knives thoroughly before sharpening to prevent that water and any pollution will get into the appliance. -
Page 6: Technical Specifications
Technical Specifications Model: Design Knife Sharpener Power supply: 220/240 V AC, 50/60 Hz Power consumption: 130 Watt Length of power cord: ca. 100 cm Weight: ca. 2.2 kg Dimensions: ca. 26 cm x 13 cm x 11 cm (width x depth x height) Before First Use WARNING: DO NOT let young children play with the appliance, or any part of it, or the packaging! -
Page 7: Selecting The Required Stages
• Always pull the blades at the recommended steady speed (ca. 5 cm per second) over the whole length of the blade. Never interrupt or stop the motion of the blade when it is in contact with the abrasive discs. •... -
Page 8: Serrated Knives
Stage B - Thoroughly Sharpening the Edge Note: Do no use stage B for serrated knives, as this will remove too much metal from the serration. Sharpen the blade in stage B by using the same procedure as described in the section Sharpening Blades. When detecting a burr along one side of the edge, process the knife in stage C once to remove the burr. -
Page 9: Operation
To check for the burr, move your finger carefully and without exerting pressure from the back of the blade across the blade to the edge as shown in the illustration. The burr will be a rough protrusion on one side of the edge, whereas the other side is feeling smooth. - Page 10 2. Switch on the power switch. The red power indicator will be illuminated, and the motor starts. Note: Do not twist the knife while sharpening. (See: Figure) Each time you insert the blade simultaneously pull the blade toward you as soon as you feel it coming in contact with the abra- sive disc.
-
Page 11: Care And Cleaning
Care and Cleaning WARNING: Always switch OFF and unplug from power outlet before disassembling parts, or cleaning the appliance. Do not immerse the appliance or power cord in water or any other liquids. Do not spill any liquids on the appliance. Do not place the appliance in an automatic dishwasher. -
Page 12: Notes For Disposal
of young children. Place the appliance on a clean and stable surface, where it can not fall. Do not place any hard or heavy objects on the appliance. Do not place any foreign objects in the slots of the appliance. Handle the power cord with care. -
Page 13: Index
Index Site burr 21,22 care and cleaning check for proper functioning checking the blade 21,22 disposal energy consumption extention cord fine-sharpening first use functional components intended use knives 19,20,23 magnet 17,25 metal dust operation power cord 19,20 power indicator power supply 19,20 pre-grounding preparing for use... - Page 14 G A S T R O B A C K GmbH Gewerbestraße 20 D-21279 Hollenstedt/Germany • Telefon +49 (0)41 65/22 25-0 Telefax +49 (0)41 65/22 25-29 • info@gastroback.de www.gastroback.de •...
