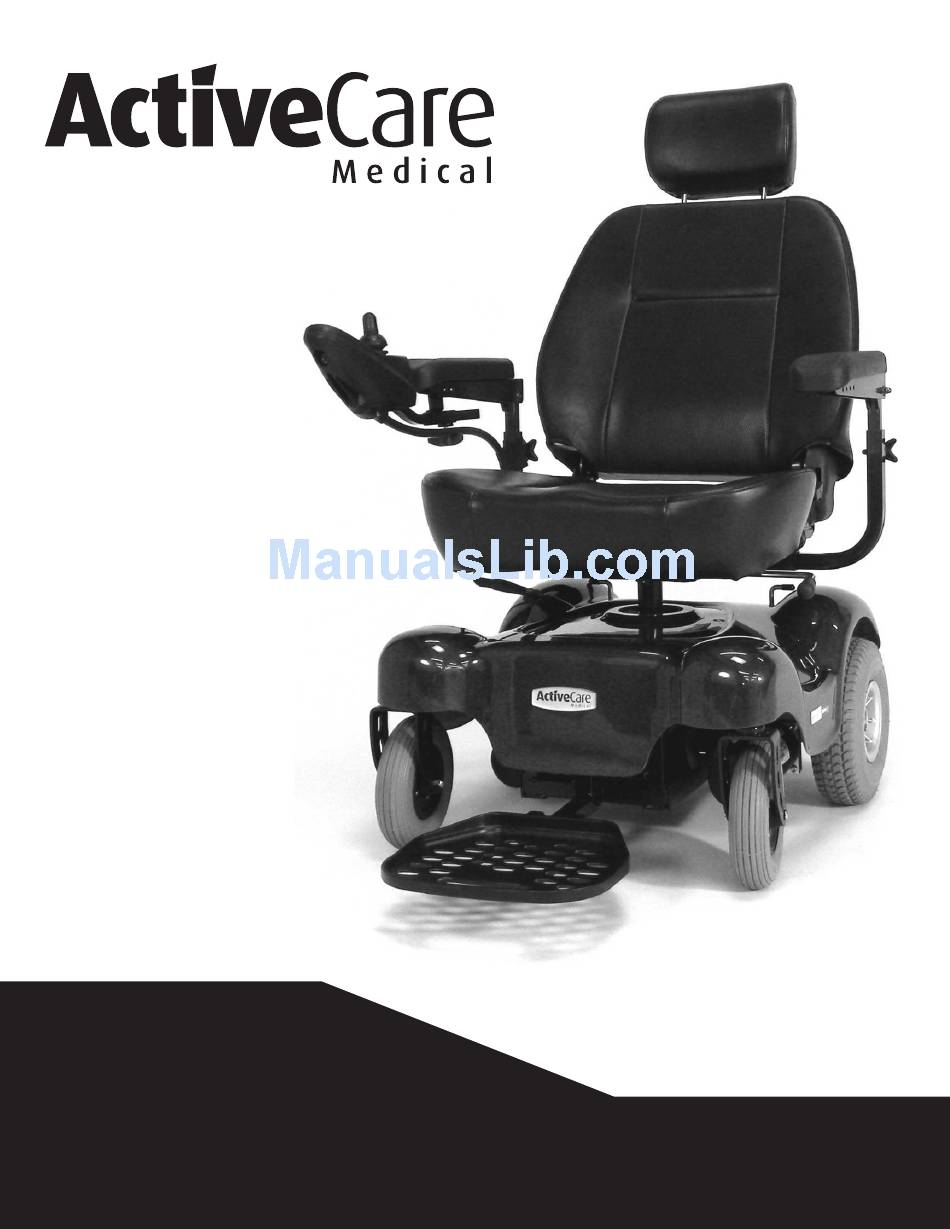

- Page 1 Renegade/P24 Power Wheelchair Owner's Manual...
-
Page 2: Table Of Contents
For service assistance, please call your authorized ActiveCare dealer. Table of Contents Preface..........................2 Safety Notices ........................3 EMI .............................4 Electromagnetic Interference (EMI) From Radio Wave Sources ........4 Powered Wheelchair Electromagnetic Interference (EMI)..........5 Parts...........................6 Assembly...........................7 Operation.........................10 General Information......................10 Controller..........................10 Freewheel Mode....................... 11 Security Functions...................... -
Page 3: Preface
Preface NOTICE! An authorized ActiveCare Provider or a qualified technician must perform the initial setup of this power chair and must perform all of the procedures in this manual. This owner’s manual includes operation instructions for every aspect of the power wheelchair, assembly instructions, as well as instructions for how to deal with possible accidents. -
Page 4: Safety Notices
For service assistance, please call your authorized ActiveCare dealer. Safety Notices Always fully charge your power chair before operating. Always make sure the power is off when getting in and out of the power chair. Always make sure the clutch levers are engaged (parallel to the wheels) before getting in or out the wheelchair. -
Page 5: Emi
For service assistance, please call your authorized ActiveCare dealer. Electromagnetic Interference (EMI) This portion of the manual will provide the user with basic information about the problems with EMI (electromagnetic interference), protective measures can be used to either lessen the possibility of exposure or to minimize the degree of exposure;... -
Page 6: Powered Wheelchair Electromagnetic Interference (Emi)
4. Be aware that adding accessories or components, or modifying the power wheelchair, may make it more susceptible to EMI. 5. Report all incidents of unintended movement or brake release to ActiveCare Medical, and note whether there were sources of EMI nearby. Renegade/P24 Owner’s Manual... -
Page 7: Parts
For service assistance, please call your authorized ActiveCare dealer. Parts RENEGADE Headrest Joystick Controller Seat Front Caster Footplate Backrest Armrest Shroud 10. Rear Wheel 11. Rear Bag 12. Storage Box 13. Anti-tipper Renegade/P24 Owner’s Manual... -
Page 8: Assembly
For service assistance, please call your authorized ActiveCare dealer. Assembly Your new ActiveCare Power Wheelchair comes packaged with all of the following. Please locate all pieces before beginning assembly. 1 ActiveCare Power Wheelchair 1 Seat 2 Armrests 1 Headrest 1 Controller with Arm... - Page 9 For service assistance, please call your authorized ActiveCare dealer. 4. Replace the product’s cover shroud. The shroud should slide over the brake levers, which should be positioned in engaged mode. 5A. Attach the seat by lifting up on the handle on the left side of the seat and placing the seat down on the scooter’s seat post.
- Page 10 For service assistance, please call your authorized ActiveCare dealer. 9. Insert the controller’s square tube into the tube under the armrest. Tighten the bolt on the underside of the controller arm tube to hold it in place at the desired extension.
-
Page 11: Operation
For service assistance, please call your authorized ActiveCare dealer. Operation GENERAL INFORMATION 1. Make sure that the motor levers are in engaged mode. (Parallel to the wheels) 2. Once seated on the wheelchair, turn on the power (Press the power button). The battery gauge will turn on. -
Page 12: Freewheel Mode
For service assistance, please call your authorized ActiveCare dealer. locked, the battery gauge lights will perform a slow right-to-left chase. To unlock the controller, turn on the chair, and press the horn button twice within 10 seconds. Speed Control Each press of the Speed Up or Speed Down buttons increases or decreases the chair’s speed by 20%. -
Page 13: Controller Position
For service assistance, please call your authorized ActiveCare dealer. CONTROLLER POSITION The position of the controller can be adjusted by loosening the bolt on the underside of the controller arm tube and sliding the arm forward of backward to the desired position. -
Page 14: Positioning Belts
ActiveCare. ActiveCare recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the trunk of a car or in the back of a truck or van with batteries removed and properly secured. -
Page 15: Use On Inclines
For service assistance, please call your authorized ActiveCare dealer. Warning! If you require a positioning belt to safely operate your power chair, make sure it is fastened securely in order to reduce the possibility of a fall from your power chair. - Page 16 For service assistance, please call your authorized ActiveCare dealer. Warning! When climbing an incline, do not zigzag or drive at an angle up the face of the incline. Drive your power chair straight up the incline. This greatly reduces the possibility of a tip or a fall.
-
Page 17: Batteries & Charging
8 – 10 hours. ActiveCare Medical’s battery chargers are specific to our products and are designed to not overcharge the batteries. You may leave your power mobility product plugged into the charger for longer than 8 –... -
Page 18: Charger Features
For service assistance, please call your authorized ActiveCare dealer. CHARGER FEATURES Ensures the battery connection automatically. Monitoring all procedures until the battery is fully charged. For protecting exhausted batteries, slow charge starts in the beginning then fast charge until it goes up to the normal voltage. -
Page 19: Inspection & Maintenance
For service assistance, please call your authorized ActiveCare dealer. Inspection & Maintenance BATTERY Please charge the batteries after long distance driving to prolong the battery. If you don’t drive the chair for along period of time, then charge it at least every month. Please use a maintenance/water-free battery to avoid trouble. -
Page 20: Troubleshooting
For service assistance, please call your authorized ActiveCare dealer. Troubleshooting The diagnostic flash codes for your power wheelchair are designed to help you perform basic troubleshooting quickly and easily. A diagnostic flash code flashes from all 6 of the LED’s located on the controller in the event one of the conditions listed below develops. -
Page 21: Specifications
191 lbs. Speed and range will vary according to user weight, terrain, and battery charge/condition. ActiveCare reserves the right to modify the specifications if necessary. The final specifications are subject to the individual power wheelchair your purchase from your dealer. -
Page 22: Limited Warranty
ActiveCare Medical. Any accessories, standard or optional, supplied without prior written authorization. All transportation costs and by ActiveCare Medical, are covered for a period of one year from shipping damage incurred while submitting parts for repair or the date of purchase with the particular unit. -
Page 23: Product Registration
Product Registration Thank you for purchasing an ActiveCare power mobility product! Your ActiveCare product will provide you years of dependable service and mobility ease. To validate your product’s warranty, you must complete this form and return it to ActiveCare Medical immediately. - Page 24 Place _____________________________ Stamp Here _____________________________ _____________________________ ActiveCare Medical Product Registration 2 Harbison Way Columbia, SC 29212 --------------------------------------------------- Fold Here Fold Here ---------------------------------------------------------------------- Fold Here Seal This Side...
