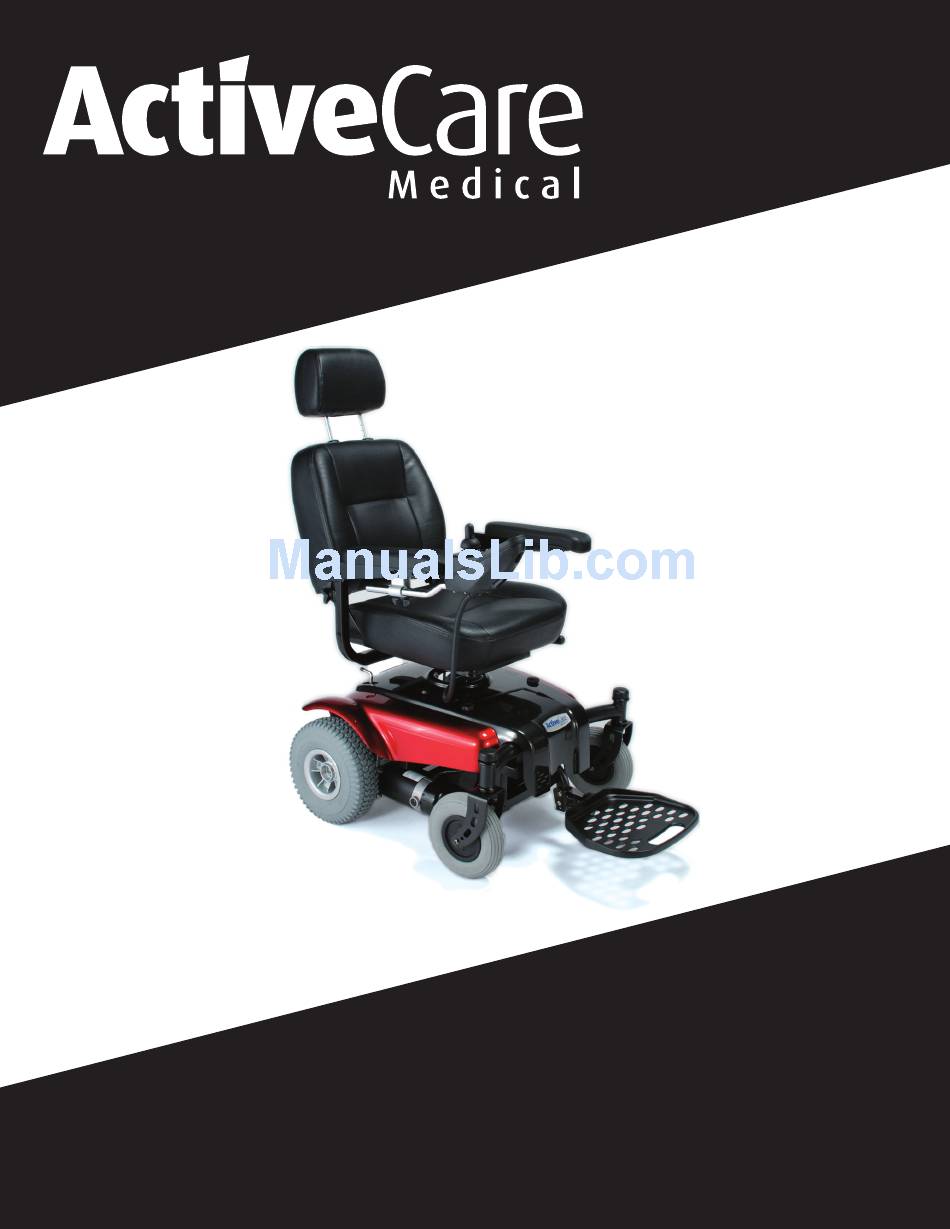

- Page 1 Medalist Power Wheelchair Owner's Manual...
-
Page 2: Table Of Contents
Security Functions......................11 Battery Charger.......................12 Specifications ........................12 Features ..........................13 Operation Instructions .....................13 Usage Environment......................13 Notes ..........................13 Inspection & Maintenance .....................14 Battery..........................14 Motor ..........................14 Electrical Brakes ......................14 Tires ..........................14 Troubleshooting......................15 10. Specifications .........................16 11. Limited Warranty ......................17 Product Registration......................18 Medalist Owner’s Manual... -
Page 3: Preface
We reserve the right to make design modifications. The manufacturer disclaims all responsibilities for any personal injury or property damage which may occur as a result of improper or unsafe use of its products. Medalist Owner’s Manual... -
Page 4: Safety Notices
If your feet are in the improper position, you can be seriously injured. 20. When the power does not come on, recheck all connections and recharge if necessary. 21. Please check the screws under the joystick periodically and make sure they are not loose, and tighten them if needed. Medalist Owner’s Manual... -
Page 5: Emi
NOTE: Some cellular telephones transmit a signal while they are ON but not being used. Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances and taxis usually have the antenna mounted on the outside of the wheelchair. Medalist Owner’s Manual... -
Page 6: Powered Wheelchair Electromagnetic Interference (Emi)
4. Be aware that adding accessories or components, or modifying the power wheelchair, may make it more susceptible to EMI. 5. Report all incidents of unintended movement or brake release to ActiveCare Medical, and note whether there were sources of EMI nearby. Medalist Owner’s Manual... -
Page 7: Parts
For service assistance, please call your authorized ActiveCare dealer. Parts MEDALIST Headrest Controller Joystick Seat Front Caster Footplate Backrest Armrest Shroud 10. Rear Wheel 11. Rear Bag 12. Anti-tipper Medalist Owner’s Manual... -
Page 8: Assembly
Install the washer and nut and tighten them using the included flat wrench. 4. Connect both battery connectors to the main cable. Medalist Owner’s Manual... - Page 9 Remove the star-shaped knobs from the elbow tubes. With the star knobs removed, separate each assembly into 2 pieces. Reinsert the armrests so that they face forward and retighten the star knobs to lock them in place. Fig. 1 Fig. 2 Medalist Owner’s Manual...
- Page 10 Full charging normally takes 6-8 hours, but can take as many as 10 hours depending on the batteries’ charge level when starting and the ambient temperature. Product Disassembly To disassemble your power wheelchair, reverse the preceding procedure, beginning with Step 10. Medalist Owner’s Manual...
-
Page 11: Operation
When the power chair is turned on, the battery gauge will light up as indicated below: Green lights: the battery has full capacity. Orange lights: do not drive power-chair for a long trip. Red lights: the power-chair should be charged as soon as possible. Medalist Owner’s Manual... -
Page 12: Freewheel Mode
For service assistance, please call your authorized ActiveCare dealer. FREEWHEEL MODE The Medalist Power Wheelchair is equipped with two freewheel levers. These levers allow you to disengage the drive motors and maneuver the chair manually. Warning! DO NOT use your wheelchair while the drive motors are disengaged unless someone is there to push you. -
Page 13: Battery Charger
Above 8A:Automatic Shut-off Protection Against Short Circuit Output Fuse Shuts-off Automatically Environmental Temperature of use -10° to 50° Environmental Temperature of -25° to 85° Preservation Dimensions 7” (L) x 3.7” (W) x 2” (H) Weight 1.83 lbs. Medalist Owner’s Manual... -
Page 14: Features
Do not expose the charger to the rain, water or near flammable materials. Do not store the charger in humid places or in a closed area. The warranty is given for use within normal operating conditions; it does not cover accidental damage, or problem caused by user’s neglect or misuse. Medalist Owner’s Manual... -
Page 15: Inspection & Maintenance
Repeat the test three times, pushing the joystick backward, left and right respectively. TIRES Check front/rear tires regularly and replace them when worn out. Suggestion Tire wear is not covered under your power wheelchair’s warranty. Medalist Owner’s Manual... -
Page 16: Troubleshooting
If more than one fault exists, the fault having the highest priority (and lowest number of flashes) is indicated. All faults disable the controller and require the controller to be turned off then on again once the source of the fault is removed. Medalist Owner’s Manual... -
Page 17: Specifications
191 lbs. User’s weight, road conditions, battery charge, etc. will influence performance. ActiveCare reserves the right to modify the specifications if necessary. The final specifications are subject to the individual power wheelchair your purchase from your dealer. Medalist Owner’s Manual... -
Page 18: Limited Warranty
IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. ACTIVECARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS. Medalist Owner’s Manual... -
Page 19: Product Registration
ActiveCare power mobility product! Your ActiveCare product will provide you years of dependable service and mobility ease. To validate your product’s warranty, you must complete this form and return it to ActiveCare Medical immediately. Please print or type. Your Name... - Page 20 Place _____________________________ Stamp Here _____________________________ _____________________________ ActiveCare Medical Product Registration 2 Harbison Way Columbia, SC 29212 --------------------------------------------------- Fold Here Fold Here ---------------------------------------------------------------------- Fold Here Seal This Side...
