Honda TDR01Z Owner's Manual

Electric bicycle.
Hide thumbs

Advertisement

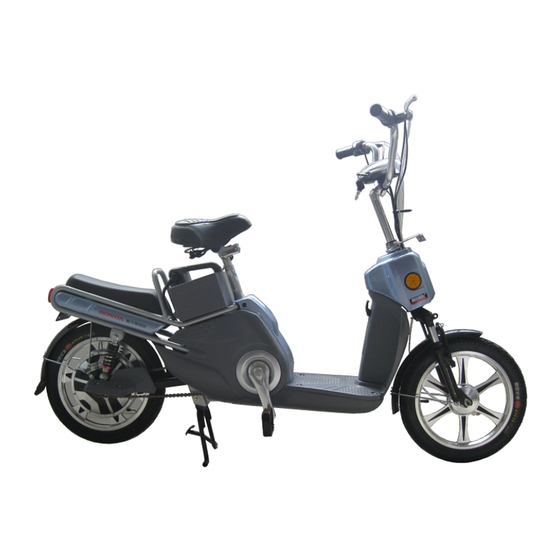

TDR01Z (JUCHI) Bicycle
Thank you very much for buying a HONDA Electric Bicycle
A FEW WORDS ABOUT SAFETY
Your safety, and the safety of others, is very
important. And operating this electric bicycle
safely
is an important responsibility. To help you make
informed decisions about safety, we have
provided operating procedures
and other information on labels and in this
manual. This information alerts you to potential
hazards that could hurt you or others.
1 Information To Know Before Riding
Electric bicycle structures
Safety instructions
Load capacity
Riding Safely
2 Ways of using Electric Bicycle
The Ways Of Using Bicycle
How to charge
How to install the battery box
3 Driving operation instructions
Information To Know Before riding
You CAN be HURT if you don't follow
You CAN be HURT if you don't follow
You CAN be HURT if you don't follow
Catalogue
Road conditions
Parking
Environmental protection
How to install the battery
How to use Lights and horn
Tire inflation
Owner's Manual
Know-How Of Using Bicycle
Driving operation instructions
Trouble Shootings
Daily maintenances
Technical Information
Circuit Diagram
instructions.
instructions.
instructions.

Advertisement

   Summary of Contents for Honda TDR01Z

  • Page 1 Trouble Shootings Daily maintenances Technical Information Circuit Diagram Thank you very much for buying a HONDA Electric Bicycle A FEW WORDS ABOUT SAFETY You CAN be HURT if you don’t follow Your safety, and the safety of others, is very instructions.
  • Page 2 Riding instructions How to check and adjust brake system Attention before riding Seat and handlebar adjustment Checking battery capacity Starting and riding How to check and adjust chain 4 Trouble shooting Trouble shooting 5 Daily maintenance Controller specifications Motor maintenance Battery maintenance 6 Bicycle Parameter Bicycle Parameter...
  • Page 3 6 Do not modify this electric bicycle in order to obtain higher speed. 7 Always leave plenty of room between your bike and somebody in front so that you can stop on time The max speed of the Honda electric bicycle is 20Kph. Load capacity The max load capacity is 100kg.
  • Page 4 Turn on the lights when you are Brake gently when you want to riding at night park and do not use the throttle. Bicycle refitting Environmental protection Do not install non-original HONDA Always dispose of old batteries properly. spare parts.
  • Page 5 2、Please don't cover anything on charger when charge, it will cause over heating or fire. 1 The charger is HONDA special one, 110v AC. 3、Do not charge close to petrol when Firstly, open the charging input socket, plug in order to avoid fire.
  • Page 6 B: use insulating tape to cover the terminals C: put the batteries in the case easily and smoothly. D: cover the case and screw tightly. Ways of wires installation. How to use Lighting and horn Front light and horn are above front fender. The switch for the lights and the horn button are on the left handle.
  • Page 7 Rear wheel standard tire pressure 300KPS-44PSI Over inflation may cause the tire to burst. Some notice before riding Please check below notice before riding to guarantee safe riding. 1、please make sure the height and verticality of handle is confortable 2、please make sure the electricity is enough. 3、please make sure the height and verticality of seat is confortable 4、please make sure the chain is fine.
  • Page 8 Adjusting the sagging Adjust the screw and clamp nut to meet the standard (10-15mm). When adjust, you should keep the chain line up. If the sag is not between 10-15mm, it might cause the chain to fall off or break the chain. How to check the brake system Check The distance between lever and handle bar should...
  • Page 9: Trouble Shooting

    Starting and Driving 1. before starting, you should check the vehicle and road conditon; 2. turn on, check the battery power, lights, horn, brake, tyres and so on; 3. push off the side stand, seat on saddle, turn the throttle slowly. Attention when driving You should pedal when you ride uphill or against head wind in order to decrease the discharge current and protect the battery.
  • Page 10 not let water in. Motor maintenance Brushless motor with high performance rare earth Nd-Fe-boron permanent magnet material. External rotor direct drive wheel rotation. The output torque is big, long life, low maintenance, low noise, etc. The motor wheel will issue a "buzzing" sound during operation, The sound of the vibration is a normal phenomenon.
