Overview

How it works:

1. Sun shine heats the solar collectors.
2. The pool pump circulates pool water through the heated solar collectors.
3. Warm, solar-heated water flows back into your pool.
4. You enjoy swimming in a solar heated pool!

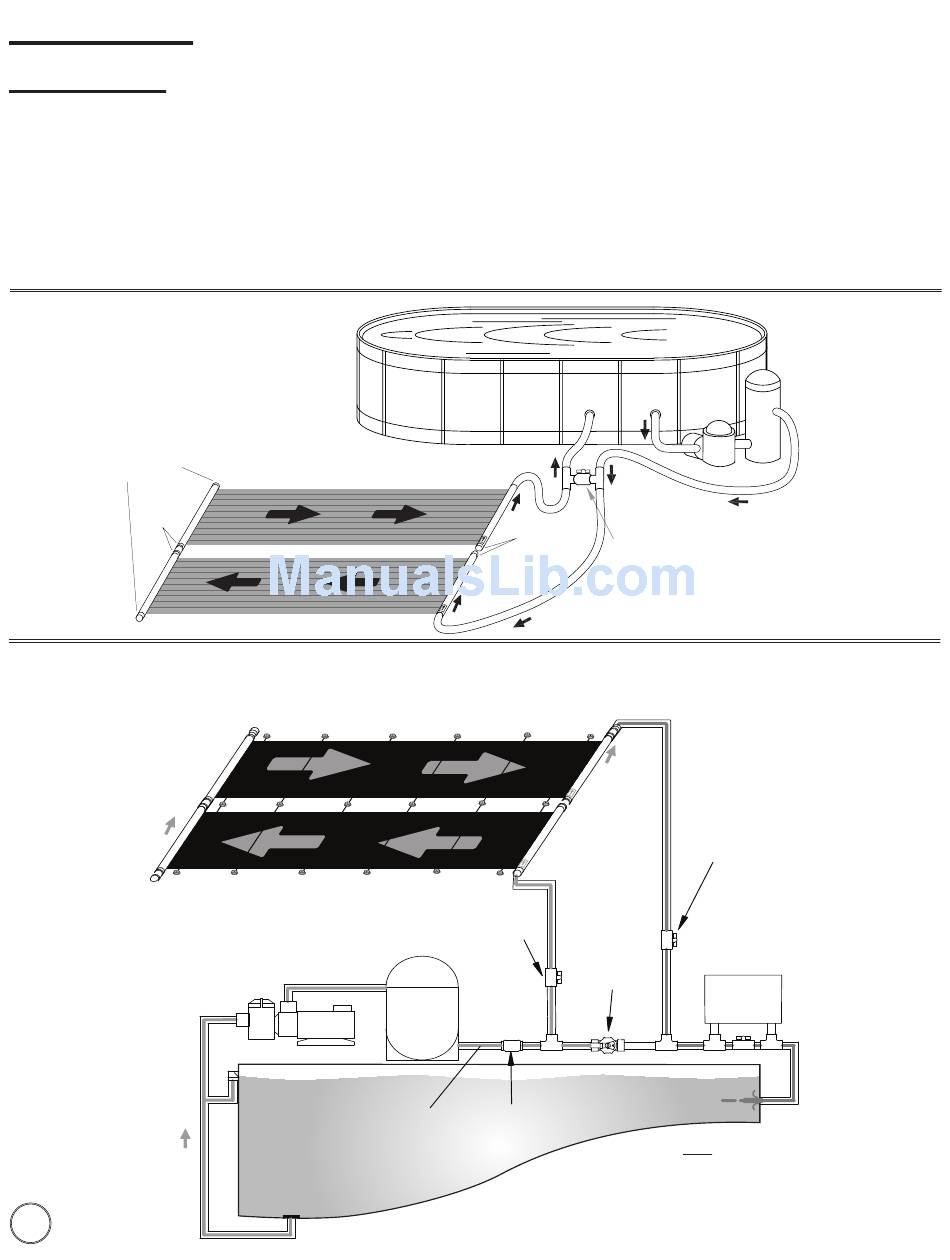

System Diagrams
Ground Mount
(Flexible pool hose)
RUBBER END
CAPS WITH
HOSE CLAMPS
RUBBER
COUPLER
WITH HOSE
CLAMPS
Roof/Rack Mount
(Rigid PVC pipe)
RUBBER
COUPLER
WITH
HOSE
CLAMPS
RUBBER END CAP
WITH HOSE CLAMPS
1
SOLAR COLLECTORS
RUBBER END CAP
MOUNTING STRAPS
WITH HOSE CLAMPS
WITH CAPS AND BASES
PUMP
CLEANER
RUBBER END
CAPS WITH
HOSE CLAMPS
FLEX HOSE
RUBBER COUPLER
WITH PVC PIPE ADAPTER
AND HOSE CLAMPS
Inlet
(At Lowest Point)
ISOLATION
BALL VALVE
(OPTIONAL)
FILTER
POOL
CHECK
VALVE
FILTER
PUMP
BYPASS BALL VALVE
Outlet
(At Highest Point)
RUBBER
END CAPS
WITH
HOSE
CLAMPS
ISOLATION
BALL VALVE
(OPTIONAL)
BYPASS
BALL
VALVE
HEATER
Note: The solar collector inlet (water com-
ing from the pump and filter) must be at
the lowest point of the solar collectors.
