Installation and Operating Instructions for
NATURAL & L.P. GAS VENT FREE SYSTEM
DANGER:
FAILURE TO FOLLOW THESE INSTRUCTIONS CAREFULLY AND WITHOUT ERROR, OR
FAILURE TO HEED ANY AND ALL WARNINGS IN THESE INSTRUCTIONS CAN RESULT IN
AN EXPLOSION, FIRE OR THE PRODUCTION OF CARBON MONOXIDE GAS WHICH CAN
CAUSE PROPERTY DAMAGE, BODILY INJURY OR DEATH.
Sure Heat
Manufacturing
3130 Moon Station Road
Kennesaw, Ga 30144
Tel: (770) 422-8008
Fax: (770) 424-3842
WARNING: If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any telephone in your building.
• Immediately call your gas supplier from a neighbor's telephone.
• Follow the gas suppliers instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
THIS APPLIANCE MAY BE INSTALLED IN AN AFTER MARKET MANUFACTURED (MOBILE) HOME, WHERE NOT
PROHIBITED BY STATE OR LOCAL CODES. INSTALL ONLY IN A SOLID-FUEL BURNING FIREPLACE OR
APPROVED VENTLESS FIREBOX ENCLOSURE (MANUFACTURED UNVENTED FIREPLACE) AS SPECIFIED BY
THESE INSTRUCTIONS.
*AFTER MARKET: COMPLETION OF SALE, NOT FOR PURPOSE OF RESALE, FROM THE MANUFACTURER.
THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON THE RATING LABEL ATTACHED TO
THE APPLIANCE. THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES.
SURE HEAT

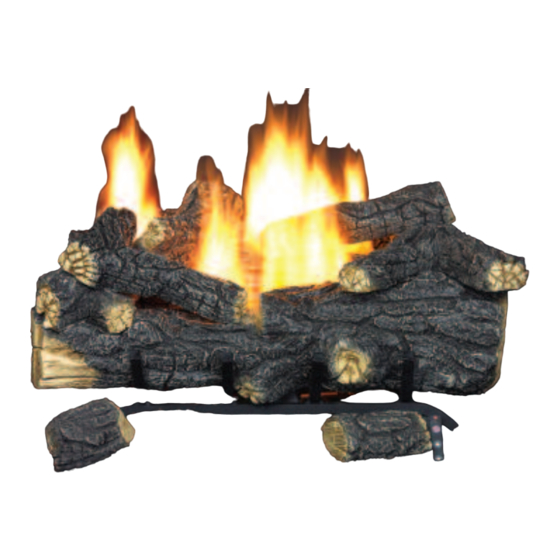

Model: SCVFMR18, SCVFMR 24/21,
SCVFMR30 (LP or NG Versions)
NOTE: THIS UNIT CANNOT BE CONVERTED TO DIFFERENT GAS TYPES.
1
Advertisement
Table of Contents
Related Manuals for Sure Heat SCVFMR18
Summary of Contents for Sure Heat SCVFMR18
- Page 1 SURE HEAT Installation and Operating Instructions for NATURAL & L.P. GAS VENT FREE SYSTEM Model: SCVFMR18, SCVFMR 24/21, SCVFMR30 (LP or NG Versions) DANGER: FAILURE TO FOLLOW THESE INSTRUCTIONS CAREFULLY AND WITHOUT ERROR, OR FAILURE TO HEED ANY AND ALL WARNINGS IN THESE INSTRUCTIONS CAN RESULT IN AN EXPLOSION, FIRE OR THE PRODUCTION OF CARBON MONOXIDE GAS WHICH CAN CAUSE PROPERTY DAMAGE, BODILY INJURY OR DEATH.
- Page 2 This appliance is designed as an unvented room heater when installed in a non-combustible fireplace with the flue damper closed. This appliance may be used as a heating appliance only if unvented heating appliances are permitted by local state and city codes.
-
Page 3: Fireplace Preparation
Unpack the appliance carefully and inspect for missing parts or damages that may have occurred during shipping. If any part of the appliance is missing or damaged, please notify Sure Heat Manufacturing at (770) 422-8008. An incomplete or damaged appliance may be hazardous. DO NOT INSTALL A DAMAGED OR INCOMPLETE APPLIANCE. -
Page 4: Fireplace Clearances
All gas piping must be installed to comply with local and national fuel gas codes. Do not use flexible hose unless it is allowed by local codes. Compounds used on threaded joints of gas piping must be resistant to the action of LP gas. The gas supply line to the fireplace should not be less than 1/2”... - Page 5 BURNER ASSEMBLY INSTALLATION 1. Install the 3 C Cell batteries. (See Fig. 1) 2. Locate the switch on the bottom of the control box (see page 13 for control box location) and verify that it is in the “on” position. (See Fig. 2) 3.
-
Page 6: Log Placement
There should be no direct impingement of flames on any of the logs. WARNING: Failure to position the parts specifically approved with this heater may result in property damage or personal injury Models: SCVFMR18, SCVFMR24/21, SCVFMR30 18” Fig. 4 Fig. -
Page 7: For Your Safety Read Before Lighting
FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result, causing property damage, personal injury or loss of life. A. This appliance is equipped with an electronic ignition device controlled by push-buttons located on the front of the burner or by a remote control handset. - Page 8 LIGHTING INSTRUCTIONS FOR REMOTE CONTROLLED SYSTEM Model SCVFMR Lighting Set from Burner System 1. Stop!! Read the safety instructions on the previous page before proceeding. Fig. 10 2. Press the on/off button to bleed the pilot system, after a few seconds you will hear a clicking noise as the pilot On/Off lights.
- Page 9 LIGHTING INSTRUCTIONS FOR REMOTE CONTROLLED SYSTEM Model SCVFMR Lighting Set from Remote Handset Fig 13 1. Stop!! Read the safety information on page 7 before proceeding. Clock Note: Before the remote control can operate correctly it must learn the security code Room Temperature from the control box on the burner.
- Page 10 LIGHTING INSTRUCTIONS FOR REMOTE CONTROLLED SYSTEM Model SCVFMR AUTO-THERMOSTATIC MODE Fig 16 6. To switch to Auto mode press the following buttons: (See Fig. 16) Set button - “AUTO” will start blinking Auto Set button (while “AUTO” is still blinking) Note: After switching to Auto mode, the temperature will start blinking.
-
Page 11: Flame Check
FLAME CHECK A periodic visual check of the flames should be made. The pilot flame should always be present when the appliance is in operation. The flames should be yellow in color and should not be impinging on any of the logs. For your safety, the appliance is equipped with an ODS (Oxygen Depletion Sensor) system. -
Page 12: Maintenance Of The System
MAINTENANCE OF THE SYSTEM Under normal use, this appliance will require only limited cleaning. Constant air flow through this appliance will cause dust to collect on the burners, base and logs. An excessive build-up of dust can cause the pilot and burners to operate incorrectly and produce high levels of carbon monoxide, a poisonous gas. -
Page 13: Parts List
PARTS LIST Ref. # Part Name- SCVFMR (18”, 24”/21” & 30”) Qty. 1 Battery compartment 2 Control module 3 Touch button controls 4 Main regulator 5 ODS pilot system 6 Burner 7 Decorative stone shelf 8 Remote control hand unit 9 Decorative stone- 1 bag TROUBLE SHOOTING Problem... -
Page 14: Limited Lifetime Warranty
You will be asked to provide valid warranty registration, proof of purchase and model number. It is agreed that any repair or replacement is the exclusive remedy from Sure Heat Manufacturing. In no case shall Sure Heat be liable for any consequential damage for breach of this or any other warranty expressed or implied whatsoever. - Page 15 N N O O T T E E S S...
