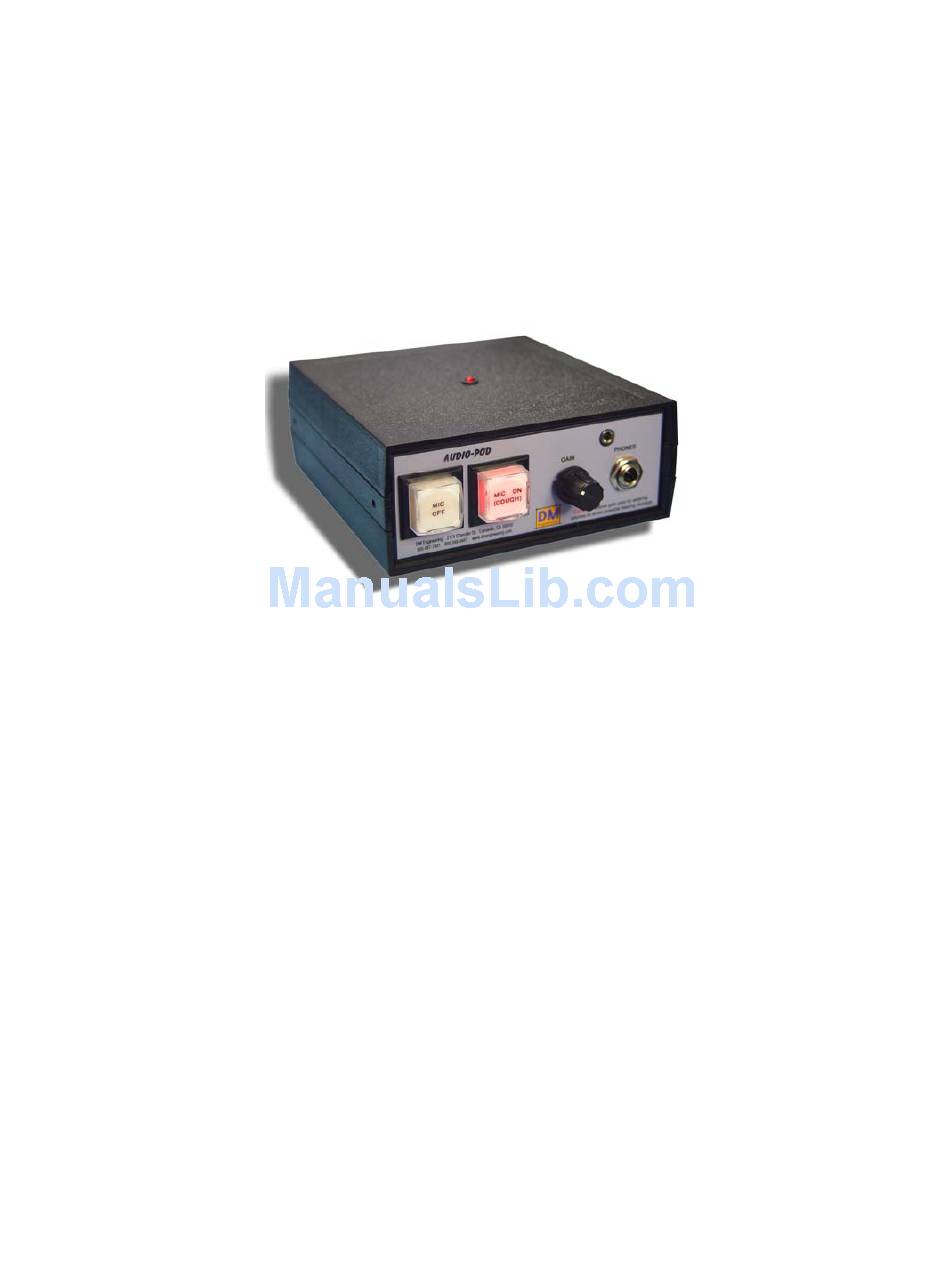

Page 1: User Guide
USER GUIDE AUDIO-POD Microphone Control and Integrated Headphone Amplifier System Version 1.3 DM Engineering 2174 Chandler St. Camarillo, CA 91345-4611 805-987-7881 800-249-0487 www.DMEngineering.com... - Page 2 The Audio-Pod system consists of from one to four Audio-Pod modules and a Power Supply. One Power Supply will supply power for up to four Audio-Pod modules, and the modules may include any of the available variety of options.
- Page 3 Installation: Mount the Power Supply within 10’ of the Audio-Pod location. Mounting may be table top or under the desk mounting using the supplied mounting screws and “keyhole” slots located on the bottom of the power supply cabinet.
- Page 4 SSR operation. IMPORTANT: Maintain SSR output polarity considerations between the Audio-Pods or damage may result. If multiple Audio-Pod SSR outputs are used for driving a single LED indicator, a 220 ohm series resistor between the positive outputs and the LED is recommended.
- Page 5 ESD protection circuitry for protection from static build-up on the earphone plug that is being connected. The Audio-Pod rear panel control adjustments are as follows: (refer to Fig. 1) Z (impedance switch): Depressed for high impedance headsets (>100 ohms) and left in the outermost position for low impedance headsets (8-100 ohms).
- Page 6 Warranty Information: The DM Engineering Audio-Pod system is warranted for a period of one year from the date of purchase. This warranty covers materials and workmanship only. Any misapplication, physical or electrical damage from outside sources or by the customer is not covered.
