Page 1: User Guide

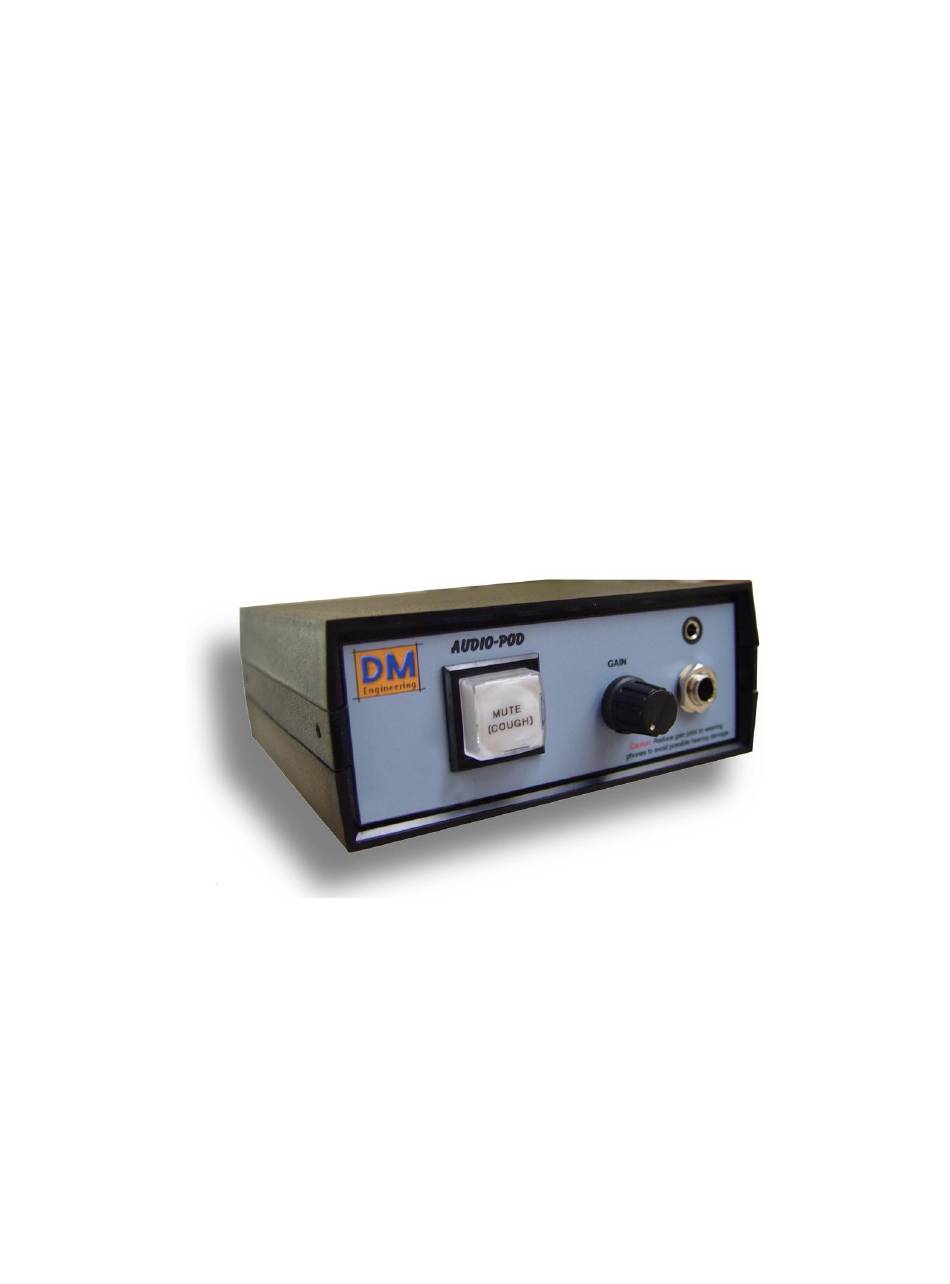

USER GUIDE AUDIO-POD MUTE Microphone Cough/Mute Control and Integrated Headphone Amplifier System Version 1.1 DM Engineering 2174 Chandler St. Camarillo, CA 91345-4611 805-987-7881 800-249-0487 www.DMEngineering.com... - Page 2 Overview: The “Audio-Pod Mute” is a Microphone Mute/Cough button control system with an integrated headphone amplifier and switched microphone phantom power, which is ideal for remote broadcasts, podcasts, and talk studio applications. The Microphone in/out employs XLR type connectors. An Audio-Pod system consists of from one to four Audio-Pod modules and a Power Supply.
- Page 3 Connect the Power Supply to the Audio-Pod using the supplied 10ft. 8 pin Mini- Din cables. The orientation of the connector has the flat side facing the top of the enclosures. IMPORTANT: Assure that the Mini-Din connectors are fully engaged with the sockets. Insert, wiggle and press firmly! Failure to completely insert the power cables will result in hum or non-operation of the Audio-Pod module.
- Page 4 Warranty Information: The DM Engineering Audio-Pod system is warranted for a period of one year from the date of purchase. This warranty covers materials and workmanship only. Any misapplication, physical or electrical damage from outside sources or by the customer is not covered.
