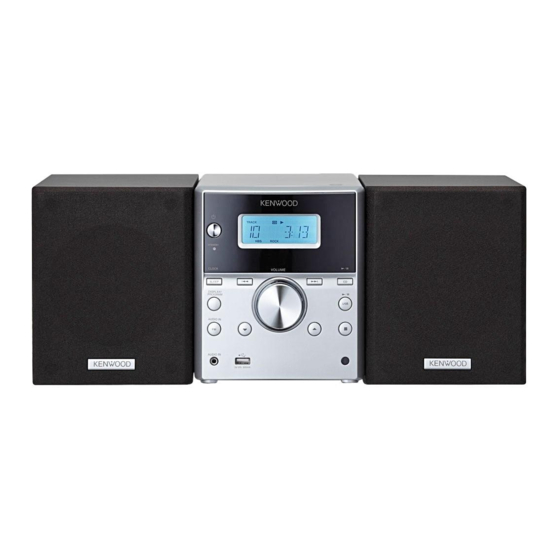

Kenwood M-313 Instruction Manual

COMPACT Hi-Fi COMPONENT SYSTEM
M-313
INSTRUCTION MANUAL
ENGLISH
© 2010 Kenwood Corporation
Read Safety instructions and others carefully before
using the System.
0710YOMMDWMTS
Declaration of Conformity with regard
CAUTION
to the EMC Directive 2004/108/EC
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Manufacturer:
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
Kenwood Corporation
DO NOT REMOVE COVER (OR BACK). NO USER-
2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
Japan
QUALIFIED SERVICE PERSONNEL.
EU Representative's:
Kenwood Electronics Europe BV
THE LIGHTNING FLASH WITH ARROWHEAD
Amsterdamseweg 37, 1422 AC UITHOORN,
SYMBOL, WITHIN AN EQUILATERAL TRIANGLE,
The Netherlands
IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED "DANGEROUS
VOLTAGE" WITHIN THE PRODUCT'S
ENCLOSURE THAT MAY BE OF SUFFICIENT
MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN
EQUILATERAL TRIANGLE IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
Maintenance Playable disc/file types
To get the best performance of the System, keep your • This System can play back...
discs and the mechanism clean. – Audio CD and CD-R/CD-RW in Audio CD format
– MP3/WMA files on a CD-R/CD-RW (ISO 9660
Handling discs
format) or USB mass storage class device
• Remove the disc from its case by holding it at the edge
(maximum data transfer rate: 2 Mbps)
while pressing the center hole lightly.
• This System cannot play "packet write" discs.
• Do not touch the shiny surface of the disc, or bend the
• For MP3/WMA playback...
disc.
– Some MP3/WMA files may not be played back due
• Put the disc back in its case after use.
to their recording conditions.
• Be careful not to scratch the surface of the disc when
– Files created with the following functions provided
placing it back in its case.
with Windows Media™ Player 9 or after cannot be
• Avoid exposure to direct sunlight, temperature
played back:
extremes, and moisture.
• WMA Professional
To clean the disc:
• WMA Lossless
Wipe the disc with a soft cloth in a straight line from
• WMA Voice
center to edge.
– This System can play only discs of ISO 9660 Level
Cleaning the System
1 or Level 2.
• Stains should be wiped off with a soft cloth. If the – This System can play back MP3/WMA recorded at
System is heavily stained, wipe it with a cloth soaked in the following sampling frequency and bitrate.
water-diluted neutral detergent and wrung well, then Sampling frequency:
wipe clean with a dry cloth. Bitrate: 32 kbps – 320 kbps (VBR*)
• Since the System may deteriorate in quality, become
*Audio files encoded in VBR (Variable Bitrate)
damaged or get its paint peeled off, be careful about
may contain data outside the compatible bitrate
the following:
of this system. Such audio files containing
– DO NOT wipe it hard.
incompatible bitrates cannot be played back.
– DO NOT wipe it with thinner or benzine.
– It is recommended to record each file at a
– DO NOT apply any volatile substances such as
sampling rate of 44.1 kHz and at a bitrate of
insecticides to it.
128 kbps.
– DO NOT allow any rubber or plastic to remain in
– This System can recognize a total of 999 tracks and
contact for a long time.
99 groups.
– This System can show the Tag data.
Cleaning the CD pickup lens
• For playback of files on a USB mass storage class
• Keep the CD pickup lens clean, or the sound may be
device...
degraded. Use a blower (available at a camera store,
etc.) to blow dust off the lens. – You cannot play back files larger than 2 GB.
– This System may not play back some USB mass
storage class devices and does not support DRM
(Digital Rights Management).
Blower
Lens
• Microsoft and Windows Media are either
registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other
countries.
EN_M313_Final_a.indd 1 EN_M313_Final_a.indd 1
CAUTION: Proper Ventilation
Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get out.)
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/Top/Back: No obstructions should be placed in the areas indicated by the dimensions in the illustration.
3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a
height of 10 cm or more.
Front view Side view
STANDBY
LVT2193-002A [E]
SLEEP VOLUME
Speaker Speaker
Main unit
Specifications
Amplifier section Speakers
Output Power: 5 W + 5 W at 4 Ω (10% THD) Speaker type:
Speakers/Impedance: 4 Ω – 8 Ω Speaker units:
Audio Input: AUDIO IN: Stereo mini (ø 3.5 mm) Impedance:
250 mV/50 kΩ Dimensions (approx.):
Digital input: USB MEMORY
Weight (approx.):
Tuner
FM tuning range: 87.50 MHz – 108.00 MHz
Supplied accessories
Disc player
See "Supplied accessories" in "Getting started. "
Wow and flutter: Immeasurable
USB
Design and specifications are subject to change without
USB specification: Compatible with USB 2.0 Full Speed
notice.
Compatible device: Mass storage class
Compatible system: FAT16, FAT32
Output power: DC 5 V 500 mA
General
Power requirement: AC 230 V / 50 Hz
Power consumption at operation: 25 W
Power consumption in standby mode: 1 W or less
Dimensions (approx.): 150 mm × 175 mm × 211 mm
(W × H × D)
Weight (approx.): 2.1 kg
Troubleshooting
If you are having a problem with your System, check this list for a possible solution before calling for service.
General
\ Power plug is not inserted securely. Plug it in securely.
Power does not come on.
\ There is a time limit. Start the procedure again.
Adjustments or settings are suddenly
canceled before you finish.
\ The path between the remote control and the remote sensor on the
Unable to operate the System from the
remote control. System is blocked.
\ The batteries are exhausted.
\ Headphones are connected.
No sound is heard.
\ Set the volume control to proper sound level.
FM radio
\ Antenna connection is incorrect or loose.
Hard to listen to broadcasts because of
\ The FM antenna is not properly extended and positioned.
noise.
\ Electrostatic discharge from your body may cause noise. If this
happens, turn the System off then on again.
Disc/USB
\ The disc is placed upside down. Place the disc with the label side
The disc/USB mass storage class device
44.1 kHz
does not play. facing up.
\ The disc is recorded using "packet writing (UDF file system). " It cannot
be played.
\ The USB mass storage class device is not connected properly.
\ Playing order is determined when the groups and tracks are recorded.
Groups and tracks are not played back as
you expect. It depends on the writing application.
\ The disc is scratched or dirty.
The disc/USB mass storage class device
\ MP3/WMA files have not been properly recorded onto the USB mass
sound is discontinuous.
storage class device.
\ Noise and static electricity may stop the sound. In this case, disconnect
Sound from the USB mass storage class
device is interrupted. and connect the USB mass storage class device again after turning off
the System.
• If the System does not work correctly, disconnect the AC power cord from the wall outlet, wait for a while, then
connect the cord again.
• Kenwood corporation bears no responsibility for any loss of data in the USB mass storage class device while using this
System.
Getting started
❍
Supplied accessories
After unpacking, check to make sure that you have all
the following items:
• Remote control: RC-F0323E (× 1)
• R03 (UM-4)/AAA (24F)-size batteries (× 2)
• FM antenna (× 1)
If anything is missing, consult your dealer immediately.
In this manual...
• The remote control buttons are used for explaining the
operations unless mentioned otherwise. However, if the
Main unit System has the same or similar button names, they can
also be used for the operations.
• "File" and "track" are used interchangeably.
1-Way Bass-Reflex type
10 cm x 1
Connections
4 Ω
Do not connect the AC power cord until all other connections have been made.
140 mm × 173 mm × 170 mm
(W × H × D)
1.2 kg each NOTE:
• Make sure the antenna conductors do not touch any other terminals, connecting cords
or the power cord. Also, keep the antenna away from metallic parts of the System,
connecting cords, and the AC power cord. Otherwise, it could cause poor reception.
FM antenna (supplied): Extend it so that you can obtain the best reception.
CAUTION for outdoor antenna installation
Since antenna installation necessitates skill and experience,
always consult your dealer before installation. The antenna
should be placed at a distance from the power distribution
wires. Otherwise, an electric shock accident may occur if the
antenna falls down.
Right
To a wall outlet
Sound and other adjustments
Initial settings
Setting the clock
You can set the clock only when the System is turned
off (on standby.)
1
REPEAT1 GROUP RANDOM PROG.RDS NEWS INFO
TRACK WMA MP3 CD USB TAPE REC
(Hold)
kHz
MHz
SLEEP HBS JAZZ POP ROCK CLASSIC ST MONO
• If you have already set the clock before, press and
hold CLOCK/SLEEP until the clock is flashing.
2
Adjust the hour and minute.
or
• The clock may gain or lose 1 to 2 minutes per month.
You may need to readjust the clock periodically.
❍
Prepare the remote control
Insert the batteries into the remote control by matching the polarity (+ and –) correctly.
To insert the batteries in the remote control
R03(UM-4)/AAA(24F)
(supplied)
Left
FM
COAXIAL
( 75 )
ANTENNA
PHONES
SPEAKER
( 4 8 )
AC IN
Red Black
❍
Timer
Sleep Timer
You can set Sleep Timer only when the System is turned
on.
To check the current time during playback
1
REPEAT1 GROUP RANDOM PROG.RDS NEWS INFO
TRACK WMA MP3 CD USB TAPE REC
(Hold)
REPEAT1 GROUP RANDOM PROG.RDS NEWS INFO
TRACK WMA MP3 CD USB TAPE REC
SLEEP HBS JAZZ POP ROCK CLASSIC ST MONO
kHz
MHz
SLEEP HBS JAZZ POP ROCK CLASSIC ST MONO
The time is displayed for a few seconds. 2 Specify the time (in minutes).
If there is a power failure
The clock loses its settings and "0:00" flashes. You need SLEEP 10 SLEEP 20
to set the clock again.
OFF SLEEP 90
• To check the remaining time until the System shuts
off, press and hold CLOCK/SLEEP.
• To change the shut-off time, press CLOCK/SLEEP
repeatedly.
❍
Sound adjustments
Fade muting
To drop the volume in a moment
REPEAT1 GROUP RANDOM PROG.RDS NEWS INFO
TRACK WMA MP3 CD USB
SLEEP HBS JAZZ POP ROCK CLASSIC
• To restore the volume, press again or adjust the
volume.
Hyper Bass Sound (HBS)
To reinforce the bass sound
HBS
HBS
Canceled
(No indication)
CAUTION
• Store the battery in a place where children cannot reach. If a child
accidentally swallows the battery, consult a doctor immediately.
• To prevent the battery from overheating, cracking, or starting a fire:
– Do not recharge, short, disassemble or heat the battery or dispose of it in
a fire.
– Do not leave the battery with other metallic materials.
– Do not poke the battery with tweezers or similar tools.
• Dispose of battery in the proper manner, according to federal, state, and
local regulations.
• The battery (battery pack or battery installed) shall not be exposed to
excessive heat source such as sunshine, fire or the like.
• Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.

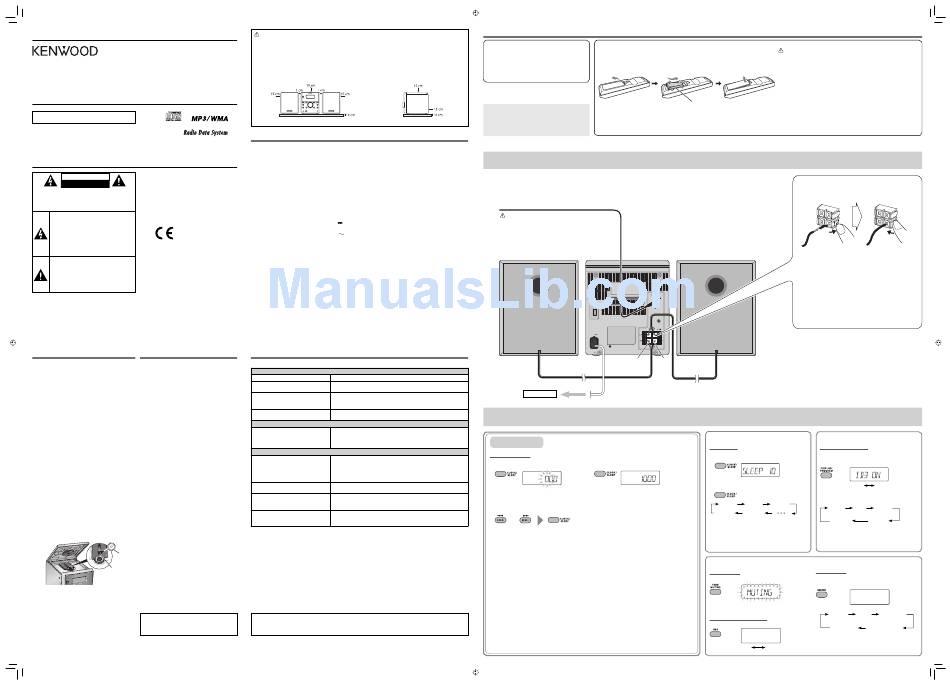

To connect the speaker cords
Make sure both speakers are connected correctly and firmly.
When connecting the speaker cords, match the polarity of the
speaker terminals: black to (–), red to (+).
CAUTIONS:
• Do not connect more than one speaker to each terminal.
• Do not allow the conductor of the speaker cords to be in touch
with the metallic parts of the System.
NOTE:
• If the speaker cords are covered with vinyl, remove the vinyl to
expose the tip of the speaker cords by twisting the vinyl.
❍
Display settings
Display information
To display MP3(ID3)/WMA tag information
During playback of MP3/WMA...
REPEAT1 GROUP RANDOM PROG.RDS NEWS INFO
TRACK WMA MP3 CD USB TAPE REC
kHz
MHz
kHz
MHz
SLEEP HBS JAZZ POP ROCK CLASSIC ST MONO
ID3 ON ID3 OFF
MP3(ID3)/WMA tag information is displayed
automatically as follows:
SLEEP 30
Group File Title
Album Artist
Sound Mode
To select the sound mode suitable for your favorite
music
TAPE REC
kHz
MHz
ST MONO
ROCK
ROCK POP CLASSIC
Canceled
JAZZ
(No indication)
10.7.30 11:31:49 AM 10.7.30 11:31:49 AM
