AccuScreens ELECTRIC SCREEN Operating Instructions Manual

OPERATING INSTRUCTIONS FOR ELECTRIC SCREEN
AUTOMATIC/ELECTRIC WALL/CEILING PROJECTION SCREENS—110-120V AC

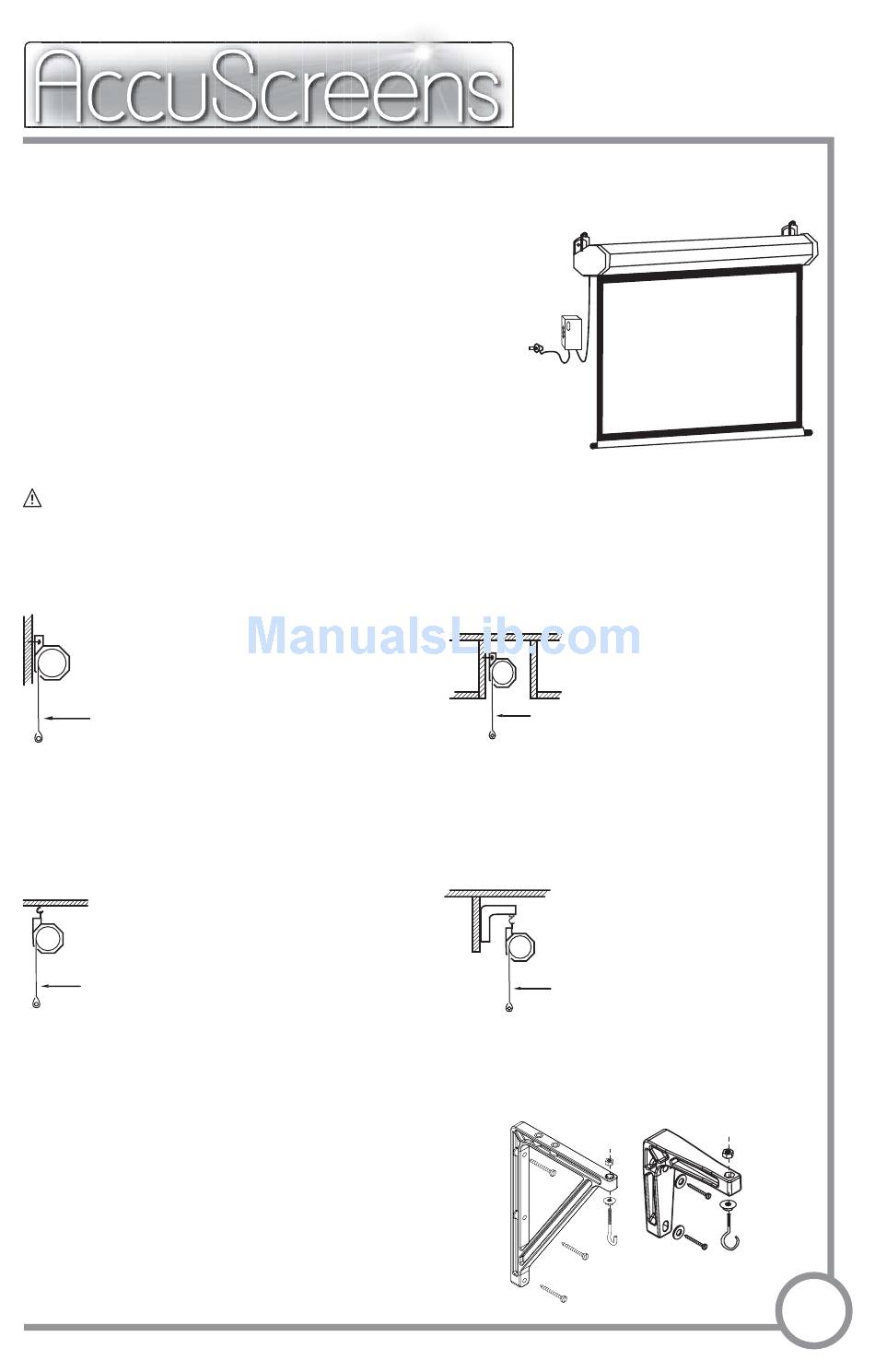

The AccuScreen Electric Screen can be mounted on a wall or
suspended from the ceiling using the universal mounting brackets
molded into the case endcaps, or extension brackets. It must be
mounted level and with the fl at back parallel to the wall.
The screen (or extension brackets) should be mounted into studs or
blocking in the wall/ceiling, or in drywall (minimum thickness ½") with
specifi ed anchors. For any other type of installation, follow all local
build ing and safety codes.
Steel studs, concrete or cinder block walls and all other types of
non-wood frame construction require the use of special screws or
anchors.
The selection of ap pro pri ate mounting hardware should be made by a qualifi ed professional installer.
Caution: If using "S" Hooks or other open hooks for mounting, make sure to crimp the hooks
closed to prevent the screen from coming loose.
WALL MOUNTING
Use the upper portion of the holes at the
back of the endcap/mounting bracket
for fl ush wall mount ing. Recommended
hard ware (not included): For mount ing
into wood or wall stud, use #10 x 1¼"
(M5 x 32mm) wood screws; for mount ing
Surface
into dry wall (minimum ½" (12.7mm)
thick), use
molly bolts. DO NOT USE FLAT HEAD
SCREWS. DO NOT OVERTIGHTEN.
CEILING MOUNTING
Po si tion and prop er ly an chor screw
eyes or oth er fasteners (not included)
into ceil ing joists or oth er sol id sur face.
Sus pend "S" hooks (not included) from
fas ten ers (not included) and hook through
holes in the front of the mount ing brack et.
For added safe ty, crimp both ends of the
Surface
"S" hooks so the screen can not come off.
Recommended hardware (not included): For mount ing
into wood or ceil ing joist, use two
x 32mm) screw eyes and
"S" hooks; for mount ing into dry wall (min i mum
(12.7mm) thick), use 3 /
3
with / " (5mm) "S" hooks.
16
Installation
Suggested Methods of Installation
3 / " (5mm) tog gle bolts or
16
3 1
/ " x 1 / " (5mm
16 4
3 / " (5mm) di am e ter
16
" (5mm) tog gle or molly bolts
16
Surface
Surface
(28mm/36mm)
Wall Bracket
1
/ "
2
CONCEALED
Allow room for access, and
make sure enough room is
allowed to completely hide the
screen case. Use the same
procedures for ceiling or wall
mounting.
EXTENSION BRACKET
Optionally available—
purchased separately. See
instruction steps included
with brackets.
11"/14" 6"
(15mm)
Wall Bracket
1
