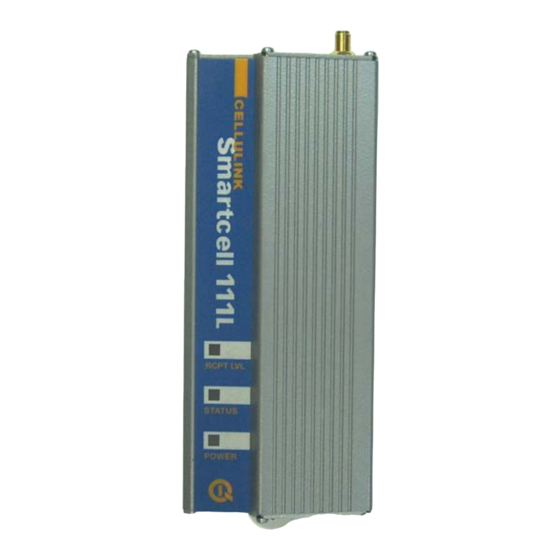

- Page 1 Cellulink Smartcell 111L Cellular Gateway for a Single Analog Line User’s Guide http://www.ipgear.co.il...
- Page 2 IP Gear Ltd. and its distributors assume no responsibility for any damage or loss resulting from the use of its products or this user manual. IP Gear Ltd. and its distributors assume no responsibility for any loss or claims by third parties, which may arise through the use of its products.
-
Page 3: Table Of Contents
IP Gear SmartCell 111L User Guide Table of Contents Introduction..........3 Overview.....................3 Packing List ....................3 Product Identification..................4 Product Description........5 Main Components..................5 LED Indications ..................6 Installation............ 7 Physical Installation ..................7 Configuration of the PABX ................9 Getting Started ..................10 Post-Installation Tests ................10 User Guidance...................11... -
Page 4: Introduction
PABX with LCR (Least Cost Routing) capability. The PABX recognizes Smartcell 111L as a trunk interface and the routing is done in the PABX itself. In a PABX with no LCR capability, the user selects the proper trunk for the call. In this case, the user has to know when to use the trunk with the 111L and when to use other trunks. -
Page 5: Product Identification
IP Gear SmartCell 111L User Guide 1.3 Product Identification The product can be easily identified by the info on the sticker found on the bottom side: IMEI Number Product Type Power Source Part Number Batch Number Version Number Page 4... -
Page 6: Product Description
IP Gear SmartCell 111L User Guide Product Description 2.1 Main Components Figure 2-1 outlines the main components of the Smartcell 111L. Figure 2-1: RJ-11 Connector pin layout Drawer Antenna Connector LED Panel Connection Panel Page 5... -
Page 7: Led Indications
IP Gear SmartCell 111L User Guide 2.2 LED Indications The LEDS on the front panel of the unit provide indications to the operation status of the unit, as described in Table 2-1. Table 2-1: LED Indications Description Operation RCPT.LVL Indicates Green - High reception. -
Page 8: Installation
SmartCell 111L User Guide Installation 3.1 Physical Installation Select a location for the Smartcell 111L that is indoors and in the proximity of a power socket and near a proper location for the antenna. 3.1.1 Main unit Drill holes in the wall to match the wall mounting brackets of the Smartcell 111L and screw the unit onto the wall. - Page 9 Figure 3-1 illustrates the pin layout of the RJ-11 line connector. Table 3-1 details the pin-to-wire layout of the RJ-11 connector. One end of the cable is connected to the (FXS) Line interface of the Smartcell 111L and the other end is connected to the (FXO) trunk interface of the PABX.
-
Page 10: Configuration Of The Pabx
IP Gear SmartCell 111L User Guide 3.1.7 Power Connection Connect the power supply, supplied with the Smartcell 111L, to the PWR port (shown in Fig 3-2) and to a power source. 3.2 Configuration of the PABX The PABX connected to a Cellulink device must be properly configured in order to operate. -
Page 11: Getting Started
If there is a ring-back tone, but no connection - try dialing another number. To check incoming calls, use another phone and dial the phone number of the SIM card inserted in the Smartcell 111L. On hearing a ring, pick up the handset Page 10... -
Page 12: User Guidance
(of the analog telephone) and make sure that you have a clear bi-directional voice path. • If there is no response from the Smartcell 111L, make sure that the number that you are dialing is the correct number of the SIM card. •... -
Page 13: Features And Programming Instructions
SmartCell 111L User Guide Features and Programming Instructions 4.1 General This section lists the various Smartcell 111L features, which can be programmed by the user. Section 4.15, has a concise summary of the programming details. During programming, • 3 short beeps indicate positive confirmation (confirmation tone). -
Page 14: Immediate Dialing
IP Gear SmartCell 111L User Guide 4.2.2 Feature Programming Enter programming mode by dialing **1343**# [hear a confirmation tone]. Enter ‘change Rx/Tx gain’ mode by dialing *5580*# [hear a confirmation tone]. Dial to a cellular phone (must have at least 3 digits), add # at the end [hear a confirmation tone] and wait until the call is answered. -
Page 15: Interdigit Timeout
IP Gear SmartCell 111L User Guide When the unit is installed in a network where all the cellular phones have the same number of digits, you can set the immediate dialing length to that number of digits. Doing so will save you the delay after the last digit. The minimum number of digits is 2 and the maximum is 20 digits. -
Page 16: Calling Number Identification Restriction (Clir)
With no PIN Code protection. Every SIM, programmed to function without PIN code, can be used. • With the default PIN code of 1234. The Smartcell 111L is preprogrammed with this code. You have to use a SIM card, programmed to require the code 1234. - Page 17 IP Gear SmartCell 111L User Guide mobile phone and follow the menu). After the insertion of the SIM card into the 111L, clear the ‘Wrong PIN Flag’ with the DTMF command. 4.6.2 Feature Programming Dial **1343**# [hear a confirmation tone] to enter to programming mode.
-
Page 18: Toll Restriction
4.7 Toll Restriction 4.7.1 Feature description When the Toll Restriction feature is enabled, the Smartcell 111L allows only calls to numbers that starting with the prefixes that were programmed (white list). Attempts to call numbers starting with other prefixes will fail and the caller will hear an error tone. -
Page 19: Call Duration Limit
IP Gear SmartCell 111L User Guide 4.8 Call Duration Limit 4.8.1 Feature description The calls (incoming and outgoing) can be limited to a certain time. This time can vary, in steps of 1 minute - from 1 minute to 254 minutes. If the call duration exceeds this limit, the call will be cut and the user will hear an error tone. -
Page 20: Set Pulse Drop Signaling Method
IP Gear SmartCell 111L User Guide 4.10 Set Pulse Drop Signaling Method 4.10.1 Feature description If the PABX trunk connected to the unit supports Pulse Drop signalling method, you should use this command to set the unit to Pulse Drop signalling mode 4.10.2 Feature Programming... -
Page 21: Erase Sms Inbox Of The Sim Card
Smartcell 111L. Once the Network-lock feature is enabled and an unauthorized SIM card is used, the Smartcell 111L will not be able to handle any incoming or outgoing calls. It will generate an error tone on outgoing calls and will reject incoming calls. -
Page 22: Restore Factory Default
IP Gear SmartCell 111L User Guide 4.14 Restore Factory Default 4.14.1 Feature description This feature is useful if you get a unit that was previously programmed with unknown parameters and you want to bring it back to the same parameters it had when it was shipped from the factory. -
Page 23: Dtmf Programming Summary
IP Gear SmartCell 111L User Guide 4.15 DTMF Programming Summary Code Function Remarks **1343**# Enter programming mode To exit programming mode – go on-hook. *5580*# Change Rx/Tx audio gain This is followed by *70*# for TX and *71*# for Rx. -
Page 24: Factory Default Values
IP Gear SmartCell 111L User Guide 4.16 Factory Default Values • No toll restriction table (hence toll restriction is inactive) • Network lock inactive or active (depends on the version) • Rx gain – -8db, Tx gain – +36db • CLIR enabled (the network defines whether to send or block CLI) •... -
Page 25: Sms Commands
IP Gear SmartCell 111L User Guide SMS Commands 5.1 General This unit may be remotely controlled using SMS commands. The SMS message being sent must match the structure, described in tables 5.2 and 5.3 below (both lowercase and uppercase are acceptable). -
Page 26: Set Command Table
IP Gear SmartCell 111L User Guide -113db) dBm, BER:(0-7) Gets the software version SW VER: Q111xxxxxx of the unit (Where xxxxxx states the software version) Gets the Toll Restriction TR IS OFF/ON, table xx,xx,xx,xx Stored (Where xx defines the TR prefix... -
Page 27: Troubleshooting
IP Gear SmartCell 111L User Guide Troubleshooting No Problem Indications Solution Unit does not None of the LEDS is on, - Reconnect the power supply respond no dial tone - Replace the power supply Unit does not Status LED does not stop... -
Page 28: Specifications
111L and a PC with Winfax version 10 and up. Requires data connection between Smartcell 111L and a PC running an SMS application that supports WaveCOM module. Safety Standards QUAEMC_EN.15242C Conforms to the EMS requirements of: EN 301 489- V1.1.1:2000,...
