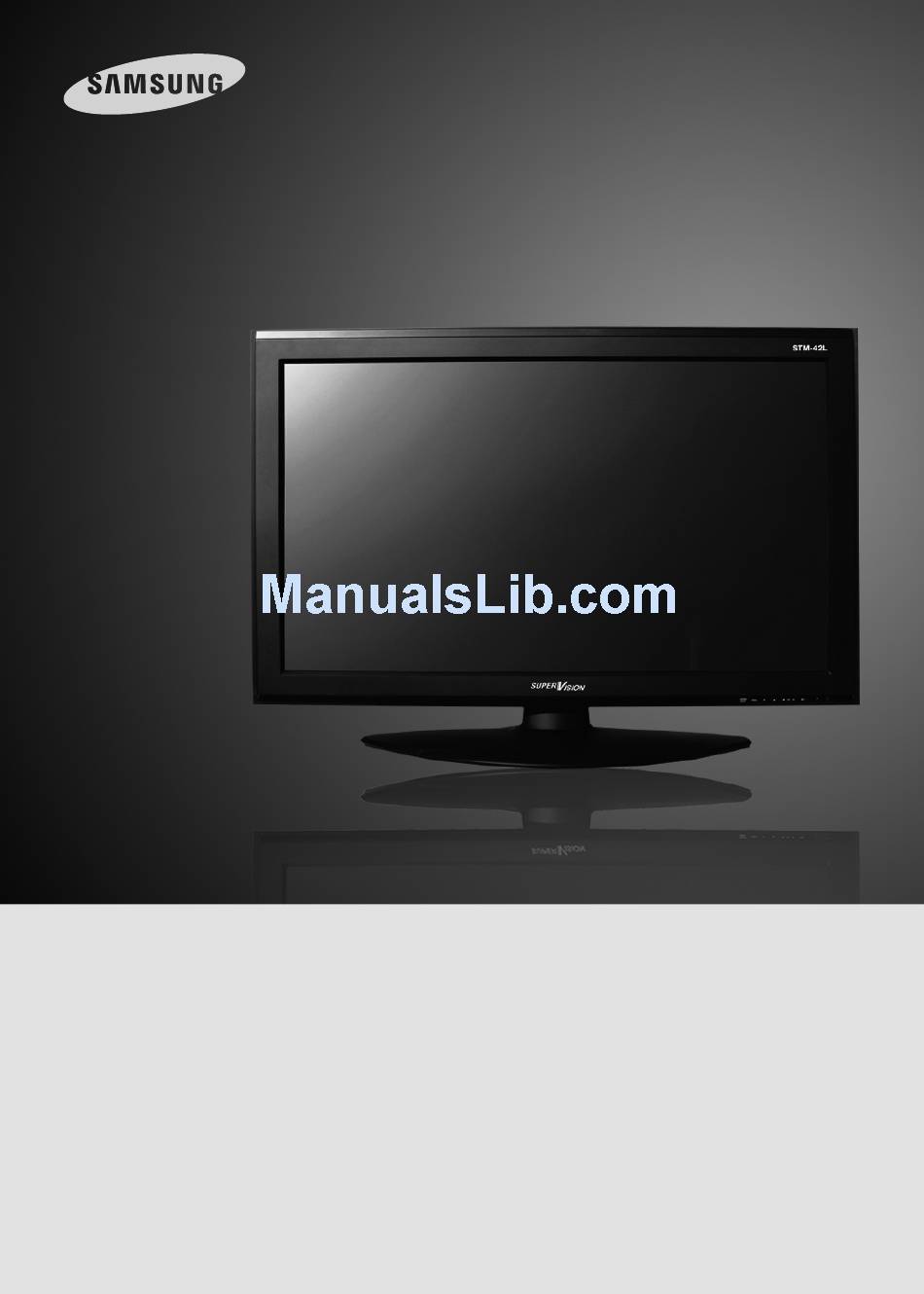

42inch Security LCD Monitor STM-42L
Instruction Manual
Thank you for choosing this Samsung 42inch Security LCD Monitor product.
Before attempting to connect or operate this product, please read the instructions contained in
this manual carefully.
Please save this instruction manual for future reference.
1
ENGLISH
Advertisement
Table of Contents
Related Manuals for Samsung STM-42L
Summary of Contents for Samsung STM-42L
-
Page 1: Instruction Manual
42inch Security LCD Monitor STM-42L Instruction Manual Thank you for choosing this Samsung 42inch Security LCD Monitor product. Before attempting to connect or operate this product, please read the instructions contained in this manual carefully. Please save this instruction manual for future reference. -
Page 2: Table Of Contents
INSTRUCTION MANUAL INSTRUCTION MANUAL CONTENTS IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these Instructions. IMPORTANT SAFETY INSTRUCTIONS ..........3 3) Heed all warnings. 4) Follow all instructions. SAFETY INSTRUCTION ................4 5) Do not use this apparatus near water. 6) Clean only with dry cloth. -
Page 3: Safety Instruction
INSTRUCTION MANUAL INSTRUCTION MANUAL SAFETY INSTRUCTION CAUTIONS - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed shall be placed no the apparatus. -
Page 4: Fcc Rf Interference Statement
INSTRUCTION MANUAL INSTRUCTION MANUAL FCC RF INTERFERENCE STATEMENT REMOTE FUNCTIONS NOTE B. REMOTE CONTROLLER This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a 1. -
Page 5: Controls And Functions
INSTRUCTION MANUAL INSTRUCTION MANUAL CONTROLS AND FUNCTIONS · Tint : Increase or decrease the tint of the picture. · Sharpness : Increase or decrease the sharpness of the picture. A. CUSTOM MENU (For HDMI, DVI & PC Input) C. FRONT KEY CONTROL 1. - Page 6 INSTRUCTION MANUAL INSTRUCTION MANUAL 2. Color Tone 5. Size 1) Press the up(▲) or down(▼) button to select the Size 1) Press the up(▲) or down(▼) button to select the Color Tone. 2) Press the right(▶) or SOURCE/SELECT button. 2) Press the right(▶) or SOURCE/SELECT button. 3) Press the up(▲) or down(▼) button to select the Size option.
- Page 7 INSTRUCTION MANUAL INSTRUCTION MANUAL B. Picture / Sound Menu (For HDMI, DVI & PC Input) 2-2. Color Tone (Custom) 1. Picture Mode 1) Press the up(▲) or down(▼) button to select the Custom in the Color Tone. 2) Press the Menu button to save. 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Picture/Sound.
- Page 8 INSTRUCTION MANUAL INSTRUCTION MANUAL 4. PC control (Only PC Input) 1. PIP 1) Press the up(▲) or down(▼) button to select the PC. 1) Press the right(▶) or SOURCE/SELECT button. 2) Press up(▲) or down(▼) button to select the On or Off. 2) Press the right(▶) or SOURCE/SELECT button.
- Page 9 INSTRUCTION MANUAL INSTRUCTION MANUAL C. PIP MENU (For HDMI, DVI & PC Input) 4. Position 1. Input Source 1) Press the up(▲) or down(▼) button to select the Position. 2) Press the right(▶) or SOURCE/SELECT button. 1) Press the up(▲) or down(▼) button to select the Input Source. 3) Press the up(▲) or down(▼) button to select the Position option.
- Page 10 INSTRUCTION MANUAL INSTRUCTION MANUAL 5. Key Lock 2. Language 1) Press the up(▲) or down(▼) button to select the Key Lock. 2) Press the right(▶) or SOURCE/SELECT button 1) Press the up(▲) or down(▼) button to select the Language. 3) Press the up(▲) or down(▼) button to select the On or Off. 2) Press the right( ▶) or SOURCE/SELECT button.
- Page 11 INSTRUCTION MANUAL INSTRUCTION MANUAL 6-2. Trigger Input 6-5 Trigger Option 1) Press the up(▲) or down(▼) button to select the Trigger Input . 1) Press the up(▲) or down(▼) button to select the Trigger Option. 2) Press the right(▶) or SOURCE/SELECT button. 2) Press the right(▶) or SOURCE/SELECT button.
- Page 12 INSTRUCTION MANUAL INSTRUCTION MANUAL 7. Auto switching 1) Press the up(▲) or down(▼) button to select the On or Off. 1) Press the up(▲) or down(▼) button to select the Auto switching. 2) Press the Menu button to save. 2) Press the right(▶) or SOURCE/SELECT button. 7-3.
-
Page 13: D-Sub Connector Pin Assignments
INSTRUCTION MANUAL INSTRUCTION MANUAL D-SUB CONNECTOR PIN ASSIGNMENTS 8-1. Image Rotation On/Off • PIN ASSIGNMENTS Pin 1 RED VIDEO Pin 9 Pin 2 GREEN VIDEO Pin10 SIGNAL CABLE DETECT Pin 3 BLUE VIDEO Pin 11 GROUND Pin 4 GROUND Pin 12 SDA(for DDC) D-SUB... -
Page 14: Power Management
INSTRUCTION MANUAL INSTRUCTION MANUAL POWER MANAGEMENT SPECIFICATIONS STM-42L This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. 42˝ Diagonal AM-TFT(Active-Matrix) The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. -
Page 15: Troubleshooting Guide
MEMO INSTRUCTION MANUAL TROUBLESHOOTING GUIDE TROUBLE TROUBLESHOOTING TIP 1. Check that power cord of the monitor have been connected securely into wall outlet or grounded extension cable or strip. No image on display screen 2. Power switch should be in the ON position and LED is lit. 3. - Page 16 MEMO MEMO...
- Page 17 SAMSUNG TECHWIN EUROPE CO., LTD. • • 1480 Charles Willard St, Carson, CA 90746, UNITED STATES Samsung House, 1000 Hillswood Drive, Hillswood Business Tol Free : +1-877-213-1222 FAX : +1-310-632-2195 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS www.samsungcctvusa.com TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungtechwin.com...
