Summary of Contents for Samsung HT-Q70
-
Page 1: Home Theater System

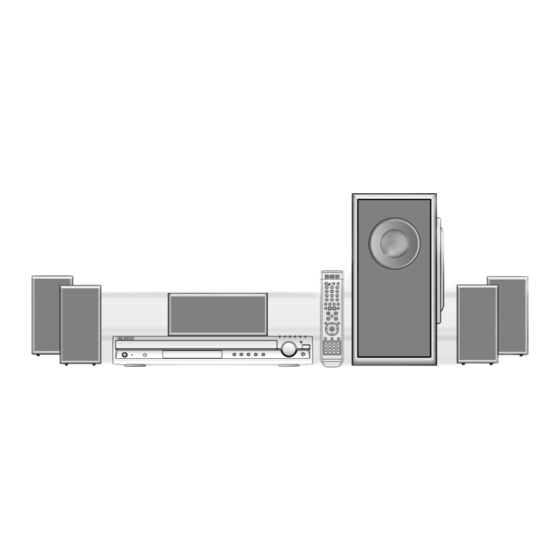

Home Theater System with 5 Disc DVD Changer and HDMI HT-Q70 Instruction Manual COMPACT DIGITAL AUDIO... -
Page 2: Safety Warnings
Safety Warnings Note to CATV system installer : CLASS 1 LASER PRODUCT This reminder is provided to call the CATV system KLASSE 1 LASER PRODUKT installer’s attention to Section 820~40 of the NEC LUOKAN 1 LASER LAITE which provides guidelines for proper grounding and, KLASS 1 LASER APPARAT in particular, specifies that the cable ground shall be PRODUCTO LASER CLASE 1... -
Page 3: Precautions
Precautions Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. -
Page 4: Safety Instructions
Safety Instructions READ INSTRUCTIONS CLEANING All the safety and operating instructions should be Unplug this video product from the wall outlet read before the appliance is operated. before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. RETAIN INSTRUCTIONS The safety and operating instructions should be LIGHTNING... - Page 5 POWER LINES REPLACEMENT PARTS An outside antenna system should not be located in When replacement parts are required, be sure the the vicinity of overhead power lines or other electric service technician has used replacement parts spec- light or power circuits, ified by the manufacturer or having the same charac- or where it can fall into such power lines teristics as the original part.
-
Page 6: Features
Power Saving Function The HT-Q70 automatically shuts itself off after 20 minutes in stop mode. Customized TV Screen Display The HT-Q70 allows you to select your favorite image during JPEG and DVD playback and set it as your background wallpaper. HDMI HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture. -
Page 7: Table Of Contents
Contents PREPARATION SETUP Safety Warnings ..............1 Setting the Language ............45 Precautions.................2 Setting TV Screen type ............47 Safety Instructions ..............3 Setting Parental Controls (Rating Level)......49 Features ................5 Setting the Password ............50 Notes on Discs ..............7 Setting the Wallpaper ............51 Description................9 DVD Playback Mode ............53 Setting the Speaker Mode..........54 CONNECTIONS Setting the Delay Time ............55... -
Page 8: Notes On Discs
Notes on Discs DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital sur- round sound and MPEG-2 video compression technology. Now you can enjoy these realistic V I D E O effects in the home, as if you were in a movie theater or concert hall. DVD players and the discs are coded by region. - Page 9 Disc Recording Format This product does not support Secure (DRM) Media files. CD-R Discs • Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. • Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minute as they may not be played back.
-
Page 10: Description
Description —Front Panel— Tuning Up & Skip ( ) buttons Tuning Down & Skip ( ) buttons Open/ Disc Tray Volume control Close button Direct Play buttons Function button USB Port Remote Control Sensor Headphone Jack Standby indicator Play/Pause ( ) button Power ( ) button... -
Page 11: Rear Panel
—Rear Panel— Video Output Connector Connect the TV's video input jacks (VIDEO IN) to the VIDEO OUT connector. External Digital Optical Input Connector External Audio Use this to connect external equipment Cooling Fan Input Connectors capable of digital output. 5.1 Channel Speaker Output Terminals FM Antenna Connector COMPONENT... -
Page 12: Remote Control
Description —Remote Control— DVD button FM/XM button TV button AUX button USB button DVD Receiver button OPEN/CLOSE button POWER button TV/VIDEO, DISC SKIP button Number(0~9) buttons REMAIN button CANCEL button STEP button REPEAT button SEARCH buttons Play/Pause button Stop button Tuning Preset/CD Skip button VOLUME button TUNING/CH button... - Page 13 Insert Remote Batteries Remove the battery Insert two 1.5V AAA Replace the battery cover on the back of batteries, paying atten- cover. the remote by pressing tion to the correct down and sliding the polarities (+ and –). cover in the direction of the arrow.
-
Page 14: Connecting The Speakers
Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Position of the Home Theater Selecting the Listening Position • Place it on a stand, cabinet shelf, or under the The listening position should be located about 2.5 to 3 TV stand. - Page 15 Rear Speaker (R) Rear Speaker (L) Center Speaker Front Speaker (R) Front Speaker (L) Subwoofer Press and hold the terminal tab. Insert the speaker cord. Black Release your finger. Caution Note • If you place a speaker near your TV set, •...
-
Page 16: Connecting The Optional Wireless Receiving Amplifier
Connecting the optional Wireless Receiving Amplifier To connect the rear speakers wirelessly, you have to additionally purchase the wireless receiving module and TX card from your Samsung retailer. When you have purchased the wireless receiving module (SWA-3000) Front Speaker (R) - Page 17 Resetting Wireless Communication Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not light up and the "REAR CHK" message blinks on the main unit's display. Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode. With the main unit turned off, press and hold the remote control's REMAIN button for 5 seconds.
-
Page 18: Connecting The Video Out To Tv
Connecting the Video Out to TV Choose one of the two methods for connecting to a TV. METHOD 2 METHOD 1 METHOD 3 (supplied) METHOD 1 ..Composite Video (Good Quality) - Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system to the VIDEO IN jack on your TV. -
Page 19: Hdmi Function
HDMI Function What is HDMI (High Definition Multimedia Interface)? This device transmits DVD video signal digitally without the process of converting to analog. You can get sharper digital pictures by connecting the video to your TV using an HDMI con- nection cable. - Page 20 HDMI Function Resolution Selection • This function allows the user to select screen resolution for HDMI output. In Stop mode, press and hold the SD/HD (Standard Definition/High Definition)button on the remote control. • Resolutions available for the HDMI output are 480P, 720P and 1080i. •...
-
Page 21: Connecting External Components
Connecting External Components Connecting an External Digital / Analog Component Example: Digital signal components such as a Set-Top Box or CD Recorder. Analog signal components such as a VCR. Audio Cable (not supplied) Optical Cable If the external analog compo- (not supplied) nent has only one Audio Out, connect either left or right. -
Page 22: Connecting The Fm Antenna
Connecting the FM Antenna FM Antenna (supplied) Connect the FM antenna supplied to the FM 75 COAXIAL terminal. Slowly move the antenna wire around until you find a location where reception is good, then fas- ten it to a wall or other rigid surface. Cooling Fan The cooling fan supplies cool air to the unit to prevent overheating. -
Page 23: Connecting An Optional Xm Satellite Radio Antenna
Connecting an optional XM Satellite Radio Antenna XM Antenna (Sold separately) Connect the XM Antenna(Sold separately) to the XM Antenna Connector on the rear of this unit. Notes • To ensure optimal reception of XM’s satellite signal, the XM Antenna should be placed at or near a souther- ly facing window with nothing obstructing its path to the sky. -
Page 24: Before Using Your Home Theater
Your Home Theater is capable of playing DVD, CD, MP3/WMA and JPEG discs.Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using. To Operate your Samsung TV and the Home Theater with the HT-Q70's Remote Control Press the POWER... -
Page 25: Disc Terminology
Disc terminology Groups and tracks (DVD-AUDIO) • DVD-audio is divided into several large sections called "groups" and smaller sections called "tracks". Numbers are allotted to these sections. These numbers are called "group numbers" and "track numbers". GROUP 1 GROUP 2 TRACK 1 TRACK 2 TRACK 3... -
Page 26: Disc Playback
Disc Playback Press OPEN/CLOSE button to open the disc tray. Load a disc. • Place a disc gently into the tray with the disc’s label facing up. Press DISC SKIP button. • Rotate the carousel tray so you can load the third, fourth, and fifth discs. -
Page 27: Selecting A Disc In The Disc Changer
Selecting a Disc in the Disc changer The DVD/CD function is automatically selected when Disc Skip is pushed. To select a specific disc, press the corresponding DIRECT PLAY (1, 2, 3, 4, 5) buttons on the front panel or DISC SKIP on the remote control, until the required disc indicator flashes. -
Page 28: Mp3/Wma-Cd Playback
MP3/WMA-CD Playback Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3/WMA format can be played. Press the In Stop mode, use OPEN/CLOSE button to select to open the disc tray, the album, and then and then load the press the ENTER MP3/WMA disc. -
Page 29: Displaying Disc Information
Displaying Disc Information You can view disc playback information on the TV screen. Press INFO button. • Each time the button is pressed, the display changes as follows: JPEG DivX DVD RECEIVER SMART NAVI Something like you Back for good Love of my life More than words The information Display disap-... -
Page 30: Jpeg File Playback
JPEG File Playback JPEG Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater. Slide Mode Place the JPEG disc on the disc tray. Press the OPEN/CLOSE button. - Page 31 Digest Function You can view 9 JPEG images on the TV screen. Press DIGEST Press Cursor buttons button during to select the desired image and playback. then press ENTER button. • JPEG files will be shown in • The selected image is played for 5 seconds before moving 9 windows.
-
Page 32: Divx Playback
DivX Playback The functions on this page apply to DIVX disc playback. Skip Forward/Back During playback, press the button. • Goes to the next file whenever you press button, if there are over 2 files in the disk. • Goes to the previous file whenever you press button, if there are over 2 files in the disk. -
Page 33: Subtitle Display
Subtitle Display Press the SUBTITLE button. • Each time you press the button, your selection will toggle between “SUBTITLE (1/1, 1/2 ...)” and “SUBTITLE OFF”. • If the disc has only one subtitle file, it will be played automatically • See number 2 (Caption Function) below for more details concerning Subtitle usage with DIVX discs. -
Page 34: Checking The Remaining Time
Checking the Remaining Time Press the REMAIN button. • For checking the total and remaining time of a title or chapter being played. Each time the REMAIN button is pressed DVD- DVD- VIDEO AUDIO TITLE ELAPSED GROUP ELAPSED TITLE REMAIN GROUP REMAIN CHAPTER ELAPSED TRACK ELAPSED... -
Page 35: Fast/Slow Playback
Fast/Slow Playback Fast Playback Slow Playback Press Press SLOW button. • Each time the button is pressed during playback, • Each time the button is pressed during playback, the playback speed changes as follows: the playback speed changes as follows: DivX Notes •... -
Page 36: Repeat Playback
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG Press REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: DVD- DVD- VIDEO AUDIO Repeat Playback Options... -
Page 37: A-B Repeat Playback
A-B Repeat Playback You can repeatedly play back a designated section of a DVD. Press Cursor button Press INFO button to move to REPEAT twice. PLAYBACK ( ) display. Press Cursor buttons Press ENTER to select ‘A-’ and then press button at the end ENTER button at the beginning of the desired... -
Page 38: Step Function
Step Function Press STEP button. • The picture moves forward one frame each time the button is pressed during playback. Angle Function This function allows you to view the same scene in different angles. Press Cursor but- Press INFO button. ton to move to ANGLE ( ) display. -
Page 39: Zoom (Screen Enlarge) Function
Zoom (Screen Enlarge) Function This function allows you to enlarge a particular area of the displayed image. Press Cursor Press ENTER but- Press ZOOM but- buttons to ton. move to the area ton. you want to enlarge. • Each time the button is pressed, the zoom level changes as follows: SELECT ZOOM POSITION •... -
Page 40: Bonus Group / Navigating Pages
Bonus Group / Navigating Pages Bonus Group DVD- AUDIO Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the-key number. When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically. -
Page 41: Selecting Audio/Subtitle Language
Selecting Audio/Subtitle Language Audio Language Selection Function Press Cursor Press INFO button buttons or numeric but- tons to select the twice. desired audio language. • Depending on the number of languages on a DVD disc, a different audio language (ENG- LISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed. -
Page 42: Playing Media Files Using The Usb Host Feature
Playing Media Files using the USB HOST feature You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater. Press the FUNCTION Connect the USB button on the main... -
Page 43: Compatible Devices
Compatible Devices 1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.) 2. MP3 Player: HDD and flash type MP3 players. 3. Digital camera: Cameras that support USB Mass Storage v1.0. •... -
Page 44: Moving Directly To A Scene/Song
Moving Directly to a Scene/Song Moving to a Title/Track Moving to a Chapter Press Cursor , buttons Press Cursor , or numeric buttons to select Press INFO button. buttons to move to the desired title/track and then Chapter ( ) display. press ENTER button. -
Page 45: Using Disc Menu
Using Disc Menu You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. Press Cursor Press Cursor In Stop mode, buttons to move to buttons to press MENU ‘DISC MENU’ and then select the desired button. -
Page 46: Setting The Language
Setting the Language OSD (On-Screen Display) language is set to English by default. Press Cursor In Stop mode, button to move to press MENU ‘Setup’ and then button. press ENTER button. MOVE ENTER EXIT MOVE ENTER EXIT Note • To select another language, select OTHER and enter the language code of your country. (See page 80 for language codes) AUDIO, SUB TITLE and DISC MENU language can be selected. -
Page 47: Enter Button
Press Cursor Press Cursor Select ‘Language’ button to select ‘OSD button to select the and then press Language’ and then desired language and then ENTER button press ENTER button. press ENTER button. • Once the setup is complete, the OSD will be English if English has been selected as language. -
Page 48: Setting Tv Screen Type
Setting TV Screen type Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. Press Cursor In Stop mode, button to move to press MENU ‘Setup’ and then button. press ENTER button. MOVE ENTER EXIT MOVE... - Page 49 Adj usting the TV Aspect Ratio (Screen Size) The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
-
Page 50: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. Press Cursor In Stop mode, button to move to press MENU ‘Setup’ and then button. press ENTER button. MOVE EXIT ENTER... -
Page 51: Setting The Password
Setting the Password You can set the password for the Parental (rating level) setting. Press Cursor button to move to Press MENU button. ‘Setup’ and then press ENTER button. MOVE ENTER EXIT EXIT MOVE ENTER Press Cursor button to Press ENTER Enter the password move to ‘PASSWORD’... -
Page 52: Setting The Wallpaper
The selected wallpaper will be displayed. • You can select up to 3 wallpaper settings. MOVE SELECT RETURN EXIT MOVE SELECT RETURN EXIT Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. - Page 53 To select one of the 3 wallpaper settings you've made Press Cursor Press Cursor In Stop mode, button to move to button to move to press MENU ‘Setup’ and then ‘LOGO’ and then button. press ENTER button. press ENTER button. MOVE ENTER EXIT...
-
Page 54: Dvd Playback Mode
DVD Playback Mode Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode. Press Cursor Press the MENU button to move to button while the ‘Setup’... -
Page 55: Setting The Speaker Mode
Setting the Speaker Mode Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not. Press Cursor In Stop mode, button to move to press MENU ‘Audio’... -
Page 56: Setting The Delay Time
Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. Press Cursor button In Stop mode, to move to ‘Audio’ and press MENU then press ENTER button. - Page 57 Press Cursor Press Cursor button , buttons to move Press Cursor to move to ‘DELAY to the desired speaker to set the Delay TIME’ and then press and then press time. ENTER button. ENTER button. • You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.
-
Page 58: Setting The Test Tone
Setting the Test Tone Use the Test Tone feature to check the speaker connections. In Stop or no Press Cursor Press Cursor button button to move to to move to ‘TEST disc mode, ‘Audio’ and then TONE’ and then press press MENU press ENTER button. -
Page 59: Setting The Drc (Dynamic Range Compression)
Setting the DRC (Dynamic Range Compression) This feature balances the range between the loudest and quietist sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. Press Cursor In Stop or no disc button to move to mode, press ‘Audio’... -
Page 60: Setting The Audio
Setting the Audio You can adjust the balance and level for each speaker. When adj usting the audio quality using the setup screen Method 1 Press Cursor In Stop mode, button to move to press MENU ‘Audio’ and then press button. - Page 61 When manually adj usting with the SOUND EDIT button Method 2 Adj usting Front Speaker Balance Adj usting Rear Speaker Balance Adj usting Center Speaker Level Press SOUND Press SOUND Press SOUND EDIT button and EDIT button and EDIT button and then press Cursor then press Cursor then press Cursor...
-
Page 62: Av Sync Setup
AV SYNC Setup Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video. Press Cursor buttons Press the MENU button. to move to ‘Audio’ and then press ENTER button. -
Page 63: Sound Field (Dsp)/Eq Function
Sound Field (DSP)/EQ Function DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments. EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing Press DSP/EQ button. •... -
Page 64: Dolby Pro Logic Ii Mode
Dolby Pro Logic II Mode You can select the desired Dolby Pro Logic II audio mode. Press PL II MODE button. • Each time the button is pressed, the mode changes as follows. Note • When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. -
Page 65: Dolby Pro Logic Ii Effect
Dolby Pro Logic II Effect This function works only in Dolby Pro Logic MUSIC mode. Press PL II EFFECT button Press PL II MODE to select Panorama, then press button to select ‘MUSIC’ Cursor buttons to select mode. the desired effect setting. •... -
Page 66: Listening To Radio
Listening to Radio Remote Control Unit Press the FM/XM Tune in to the button to select the desired station. FM band. Automatic Tuning 1 When is pressed, a preset broadcast station is selected. Press and hold TUNING/CH to Automatic Tuning 2 automatically search for active broadcasting stations. -
Page 67: Presetting Stations
Presetting Stations Example: Presetting FM 89.1 in the memory Press the FM/XM Press the FM/XM Press TUNING/CH button to select the MEMORY button. to select "89.10". FM band. • • Refer to Step 2 on page 65 to “PRGM” flashes in the display. automatically or manually tune in to a station. -
Page 68: Before Using Xm Satellite Radio
Before Using XM Satellite Radio What is XM satellite Radio? XM Satellite Radio is the satellite radio service with millions of listeners across the U.S., broadcasting live daily. XM’s channel lineup includes more than 160 digital channels of choice from coast to coast: 68 commercial-free music channels, featuring hip hop to opera, classical to country, bluegrass to blues;... -
Page 69: Listening To Xm Satellite Radio
Listening to XM Satellite Radio Press the FM/XM Press , button to button(or FUNCTION select the channel, button on the main press , button to unit) and select the XM select the category. band. • • Each time the FM/XM button is You can select the channel directly by pressed, the band switches between pressing the number buttons(1 to 255). -
Page 70: Xm Display Mode
XM Display Mode The XM features described here only operate when the optional XM antenna is connected to the main unit. Press the XM DISPLAY button. • Each time the XM DISPLAY button is pressed, the mode changes as follows: CHANNEL NAME/NUMBER CHANNEL CATEGORY ARTIST NAME/SONG TITLE... - Page 71 Checking the XM signal strength Press the XM DISPLAY button until “Signal” is displayed. • The display changes as shown below according to the receiving condition. Display Condition GOOD Signal strength is good MARGINAL Signal strength is marginal WEAK Signal strength is poor Loss of signal Checking the Radio ID Press the , button (or...
-
Page 72: Xm Search Mode
XM Search Mode Press the XM SEARCH button. • Each time the XM SEARCH button is pressed, the mode changes as follows: CHANNEL SEARCH CATEGORY SEARCH PRESET SEARCH • Channel Search Mode : Press TUNING/CH (or button on the main unit) to move to the desired channel. •... -
Page 73: Presetting Xm Satellite Radio
Presetting XM Satellite Radio Press the FM/XM Search the XM button(or FUNCTION Satellite Radio button on the main channel you want to set as a preset unit) and select the channel. XM band. • • Each time the FM/XM button is When the channel number ‘20’... -
Page 74: Convenient Functions
Convenient Functions Sleep Timer Function You can set the time that the Home Theater will shut itself off. Press SLEEP button. • "SLEEP" will be displayed. Each time the button is pressed, the preset time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝ 90 ➝ 120 ➝ 150 ➝ OFF. To confirm the sleep timer setting, press SLEEP button. -
Page 75: Mute Function
Mute Function This is useful when answering a doorbell or telephone call. Press MUTE button. • ‘ MUTE ON’ appears in the display. • To restore the sound, press the button again to select ‘MUTE OFF’. Using Headphones Use headphones (not supplied) for private listening pleasure. Connect the headphones to the PHONES jack for private listening. -
Page 76: Operating A Tv With The Remote Control
The remote control may not work on some brands of TVs. Also, some operations may not be possible depending on your brand of TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. - Page 77 018, 059, 067, 076, 077, 078, 092, 093, 094 Craig 003, 005, 061, 082, 083, 084 Realistic 003, 019 Croslex Sampo Crown Samsung 000, 015, 016, 017, 040, 043, 046, 047, 048, 049, Curtis Mates 059, 061, 063 059, 060, 098 Sanyo 019, 061, 065 Daewoo...
-
Page 78: Before Calling For Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy Disc tray does not open. - Page 79 Symptom Check/Remedy • Disc is rotating but no • Is the TV power on? • Are the video cables connected properly? picture is produced. • Is the disc dirty or damaged? • Picture quality is poor and • A poorly manufactured disc may not be playable. picture is shaking.
-
Page 80: Cautions On Handling And Storing Discs
Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. -
Page 81: Language Code List
Language Code List Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 45). Code Language Code Language Code Language Code Language 1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian 1028 Abkhazian 1183 Irish... -
Page 82: Usb Host Feature Supported Products
128 MB MP3 Player Coolpix 3700 Nikon Digital Camera Iriver H320 Iriver 20G HDD MP3 Player Coolpix 4100 Nikon Digital Camera YH-920 Samsung 20G HDD MP3 Player Coolpix 5200 Nikon Digital Camera YP-T7 Samsung MP3 Player Stylus 410 digital Olympus Digital Camera... -
Page 83: Specifications
Specifications 110W Power Consumption 11Ibs Weight 17 x 3 x 17.1 inches Dimensions (W x H x D) 41°F ~ 95°F Operating Temperature Range 10% ~ 75% Operating Humidity Range 10dB Usable Sensitivity 60dB S/N Ratio Distortion 1.0Vp-p(75 load) Composite Video Y:1.0Vp-p(75 load) Pr:0.70Vp-p(75 load) Component Video... - Page 84 Memo...
- Page 85 SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
- Page 86 SAMSUNG ELECTRONICS AMERICA, INC. SERVICE DIVISION 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864) www.samsung.com AH68-01833A...
