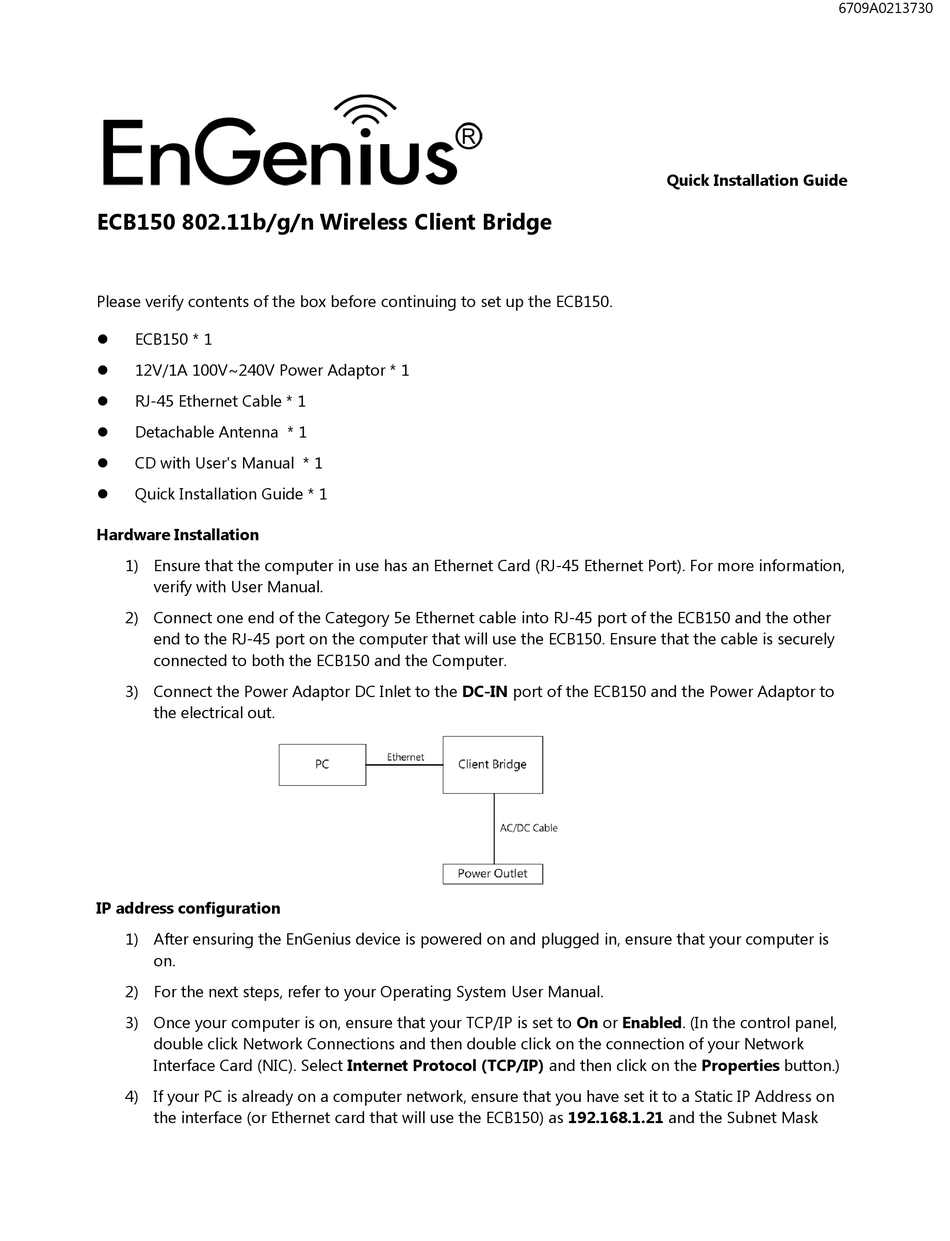

EnGenius ECB150 Quick Installation Manual

ECB150 802.11b/g/n Wireless Client Bridge
Please verify contents of the box before continuing to set up the ECB150.
ECB150 * 1

12V/1A 100V~240V Power Adaptor * 1

RJ-45 Ethernet Cable * 1

Detachable Antenna * 1

CD with User's Manual * 1

Quick Installation Guide * 1


Hardware Installation

1) Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more information,
verify with User Manual.
2) Connect one end of the Category 5e Ethernet cable into RJ-45 port of the ECB150 and the other
end to the RJ-45 port on the computer that will use the ECB150. Ensure that the cable is securely
connected to both the ECB150 and the Computer.
3) Connect the Power Adaptor DC Inlet to the DC-IN port of the ECB150 and the Power Adaptor to
the electrical out.

IP address configuration

1) After ensuring the EnGenius device is powered on and plugged in, ensure that your computer is
on.
2) For the next steps, refer to your Operating System User Manual.
3) Once your computer is on, ensure that your TCP/IP is set to On or Enabled. (In the control panel,
double click Network Connections and then double click on the connection of your Network
Interface Card (NIC). Select Internet Protocol (TCP/IP) and then click on the Properties button.)
4) If your PC is already on a computer network, ensure that you have set it to a Static IP Address on
the interface (or Ethernet card that will use the ECB150) as 192.168.1.21 and the Subnet Mask
