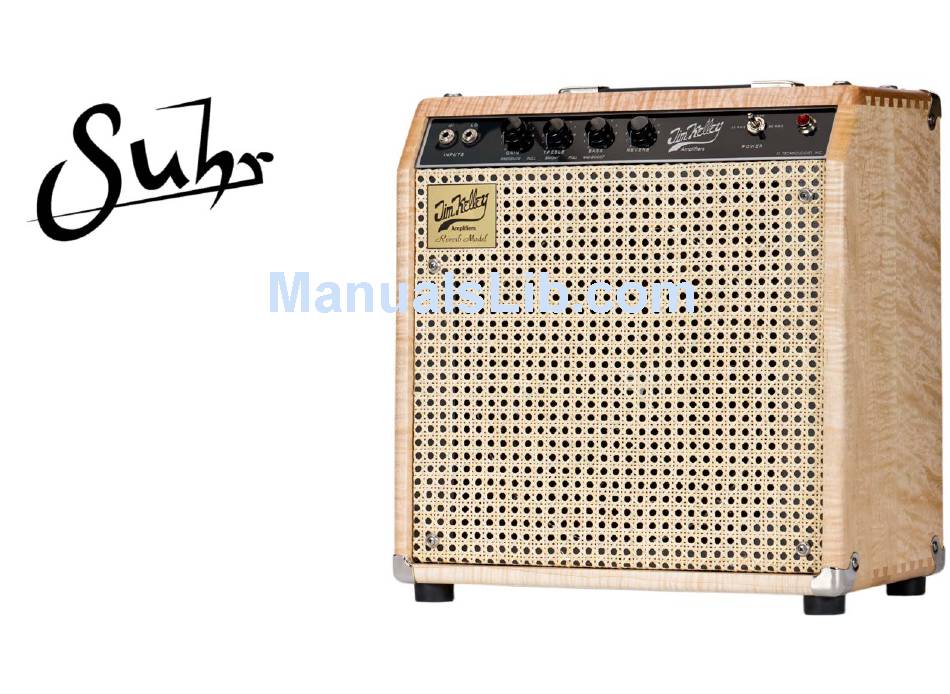

- Page 1 THE JIM KELLEY SINGLE-CHANNEL MODEL Limited Edition USER GUIDE...
- Page 2 THE JIM KELLEY AMPLIFIER The Jim Kelley Single-Channel Model is a 60 watt all-tube amplifier designed to retain your guitar’s natural tonal characteristics. It delivers a broad range of punchy, high powered clean and smooth dynamic overdrive tones. The Single-Channel model features a versatile pre-amp/power amp circuit, active shelving tone controls, four 6V6 output...
- Page 3 Power Selector Switch: The power select switch offers the following three-positions: 30 Watts: Amplifier operates at half power. NOTE: Middle two 6V6 tubes are active. OFF: Power is switched off 60 Watts: Amplifier operates at full power NOTE: In 30-watt position, only the middle two 6V6 output tubes are being used.
-
Page 4: Tone Controls
Use this input for guitars with passive or high impedance pickups. INPUTS Use this input for guitars with active or low impedance pickups. TONE CONTROLS Operates as an overdrive and a volume control. Responsible for Gain: adding harmonic sustain, richness and depth at higher Gain Adjusts the boost and cut of bass frequencies. - Page 5 Provides a Post-EQ boost in gain to the output section for more saturation while leaving the pre-amp clean and Boost: punchy. (Located on Back) NOTE: Boost function requires a latching on/off foot switch to activate. With the Power switch in the OFF position and the Standby switch in the Standby position, flip the power switch to ON.
- Page 6 Optimum Speaker Load Impedances Tube Reference Chart: 60 Watts (switch to the right) V1 - 12AX7A/7025 Pre-amp Speaker Outputs 8Ω output into 8Ω speaker cabinet V2 - 12AT7 Reverb 4Ω output into 4Ω speaker cabinet The Single-Channel has two loudspeaker outputs and V3 - 12AX7A/7025 Reverb recovery amp and mixer amp 30 Watts (switch to the left) utilizes a custom built output transformer and has two V4 - 12AX7A/7025 Phase Inverter/Driver...
-
Page 7: Sample Settings
SAMPLE SETTINGS CLEAN & PUNCHY: Gain: 3, Presence On, Treble: 3, Bright Off, Bass: 6, Mid-Boost: Off, Reverb: 4, Power: 60w CRUNCH: Gain: 5.5, Presence On, Treble: 3, Bright Off, Bass: 4.5, Mid-Boost: Off, Reverb: 0, Power: 30w LEAD: Gain: 8, Presence On, Treble: 3, Bright On, Bass: 3, Mid-Boost: On, Reverb: 0, Power: 30w... -
Page 8: Specifications
We encourage international customers to purchase through your local distributor or dealer for this reason. Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details.
