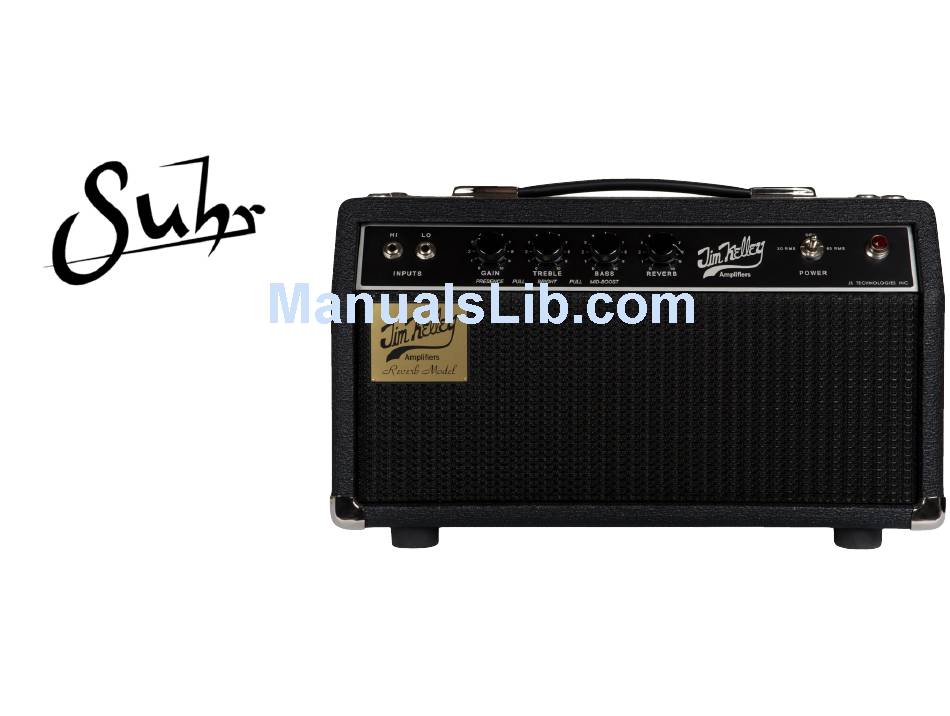

- Page 1 ® JIM KELLEY ™ SINGLE CHANNEL REVERB HEAD USER GUIDE...

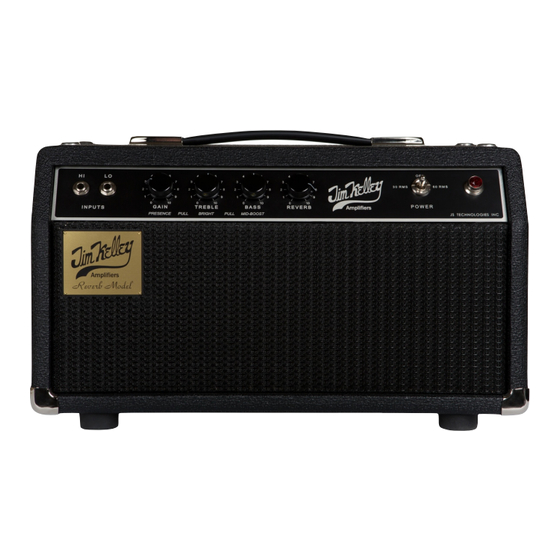

- Page 2 JIM KELLEY SINGLE CHANNEL REVERB HEAD The Jim Kelley Single Channel Head is a 60 watt all-tube amplifier designed to retain your guitar’s natural tonal characteristics. It delivers a broad range of punchy, high powered clean and smooth dynamic overdrive tones. The single channel model features a versatile preamp/power amp circuit,...
- Page 3 TONE CONTROLS Gain Operates as an overdrive and a volume control. This is Power S ele c t S wit c h responsible for adding harmonic sustain, richness and The power select switch offers the following three-positions: depth at higher gain settings. P re s en c e 30 Watts: Amplifier operates at half power.
- Page 4 Tubes Inputs The single channel tube complement consists of four 6V6 power tubes, three HI: "Use this input for guitars with passive or high impedance pickups. 12AX7 and one 12AT7 preamp tubes. LO: " U se this input for guitars with active or low impedance pickups. Speaker Outputs: Boost (located on the back) The single channel has two loudspeaker outputs and utilizes a custom built...
- Page 5 Optimum Speaker Load Impedances Tube Reference Chart: 60 Watts (switch to the right) V1 - 12AX7A/7025 Pre-amp 8Ω output into 8Ω speaker cabinet V2 - 12AT7 Reverb 4Ω output into 4Ω speaker cabinet V3 - 12AX7A/7025 Reverb recovery amp and mixer amp 30 Watts (switch to the left) V4 - 12AX7A/7025 Phase Inverter/Driver 8Ω...
-
Page 6: Sample Settings
SAMPLE SETTINGS CLEAN & PUNCHY: Gain 3, Presence On, Treble: 3.2, Bright: Off, Bass: 6.5, Mid-Boost: Off, Reverb: 4, Power: 60w CRUNCH: Gain: 5.5, Presence On, Treble: 3, Bright Off, Bass: 4.5, Mid-Boost: Off, Reverb: 0, Power: 30w LEAD: Gain: 8, Presence On, Treble: 3, Bright On, Bass: 3, Mid-Boost: On, Reverb: 0, Power: 30w... -
Page 7: Specifications
We encourage international customers to purchase through your local distributor or dealer for this reason. Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details.
