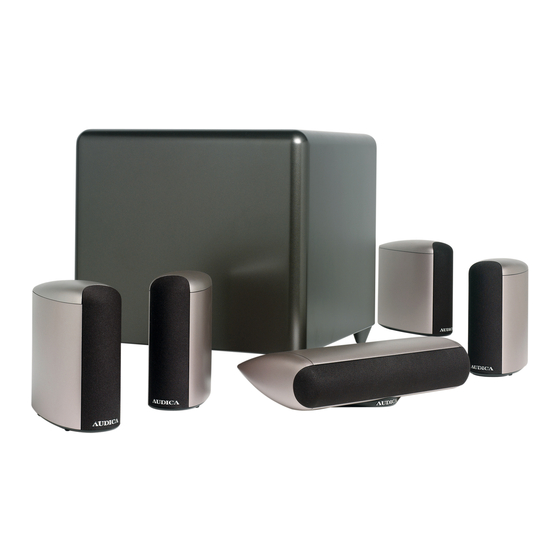

- Page 1 User Manual and technical specifications CS-SERIES...
-
Page 3: Table Of Contents
Welcome Thank you for choosing AUDICA loudspeakers. The CS-Series of AV products has been designed and engineered to the highest standards, combining style with functionality and ergonomics. To extract the best from your system please refer closely to this manual. It may also be necessary for you to refer to your other components' user guides to prevent any damage or loss in performance which may occur from incorrect installation. -
Page 4: Read This Before You Begin
Audica CS-Series dangerous voltages or other hazards. Refer all products. Audica cannot hold any responsibility for the Audica offer a two year parts and labour warranty. servicing to qualified personnel. product being damaged whilst being used with third... -
Page 5: System Placement
System Placement It is important to place your speakers in the right position in relation to where you sit in the room. Follow the diagrams below as closely as possible to maximise the surround sound performance of your speakers. Front Speakers should be placed Your Sub woofer can be placed anywhere in... -
Page 6: Speaker Connection
Speaker Connection Follow the steps below to setup and connect your speakers to your AV equipment. If you are in doubt about any aspect of your other equipment then please refer to that manufacturers manual. Satellites and Towers should be wired up as shown (below left). To prevent Centre Speaker should be wired up as shown (below). - Page 7 Speaker Connection Amplifier rear panel (actual panel may differ) LCR Speaker should be wired up as shown (left). To prevent speakers being wired out of phase, always use the printed strand (3) for the positive red + LH + RH terminal (1) on both the speaker + CEN and the amplifier.
-
Page 8: Subwoofer Connection/Setup
'AV' setting on the dial when used with the CS System. If you are LINE LEVEL INPUT using the subwoofer with a non-Audica system then you can change the crossover point to suit your system. The... -
Page 9: Assembly
Assembly of Speakers and Accessories To attach the base to the CS-T1 To use the wall bracket provided floor standing speaker (CS- with each satellite, follow these System 3 only) follow the instructions. diagram (right). 1. With the plastic cover 1. - Page 10 Zusammenbau von Lautsprechern und Zubehör Um den Sockel an die CS-T1 Um den mitgelieferten Wandausleger Bodenlautsprecher (nur CS-System 3) an jedem Satelliten zu befestigen, zu befestigen, folgen Sie bitte dem befolgen Sie diese Anweisungen. Diagramm (rechts). 1. Entfernen Sie die Plastikabdeckung und den aufgestellten Lautsprecher 1.
-
Page 11: Specifications
Specifications CS-System 1 CS-System 2 CS-System 3 CS-System 4 MANUAL x16 x1 MANUAL MANUAL MANUAL CS-LCR Left/Centre/Right Specification CS-SUB 10 10" Sub-Woofer Specification CS-S1 Satellite Specification Model No. CS-LCR Model No. CS-S1 Model No. CS-SUB10 Model description CS Series Left/Centre/Right Model description CS Series 10 Inch Sub Model description... - Page 13 www.audica.co.uk...
