Description:
The 47A00-1 is a Wireless Quad Pet Immune PIR (Passive Infrared) Motion Detector that works with the HAI
45A00-1 Wireless Receiver.
transmitter activation only 2 minutes after the last movement has been detected to sustain the life of the battery.
Features:
• 60 lb Pet Immune
• High White Light Immunity
• 50' x 50' Coverage
• Quad Element PIR
• Wall or Ceiling Mount Included
• Long Range Curtain (Optional)
• Ultra High White Light Immunity Lens (Optional)
• Calibration Free Installation
• State-of-the-art wireless PIR
• Low current ASIC PIR Technology
• Powered by a 3 Volt Lithium battery
• Battery life up to 4 years
• Built in Automatic Power Saver (APS)
• Low Battery condition signal transmission
• Test mode for PIR coverage and RF signal
Document Number: 47I00-1, Rev B
Installation Instructions
It has a unique Automatic Power Saver (APS) mechanism which enables
47A00-1
Advertisement
Related Manuals for HAI 47A00-1
Summary of Contents for HAI 47A00-1

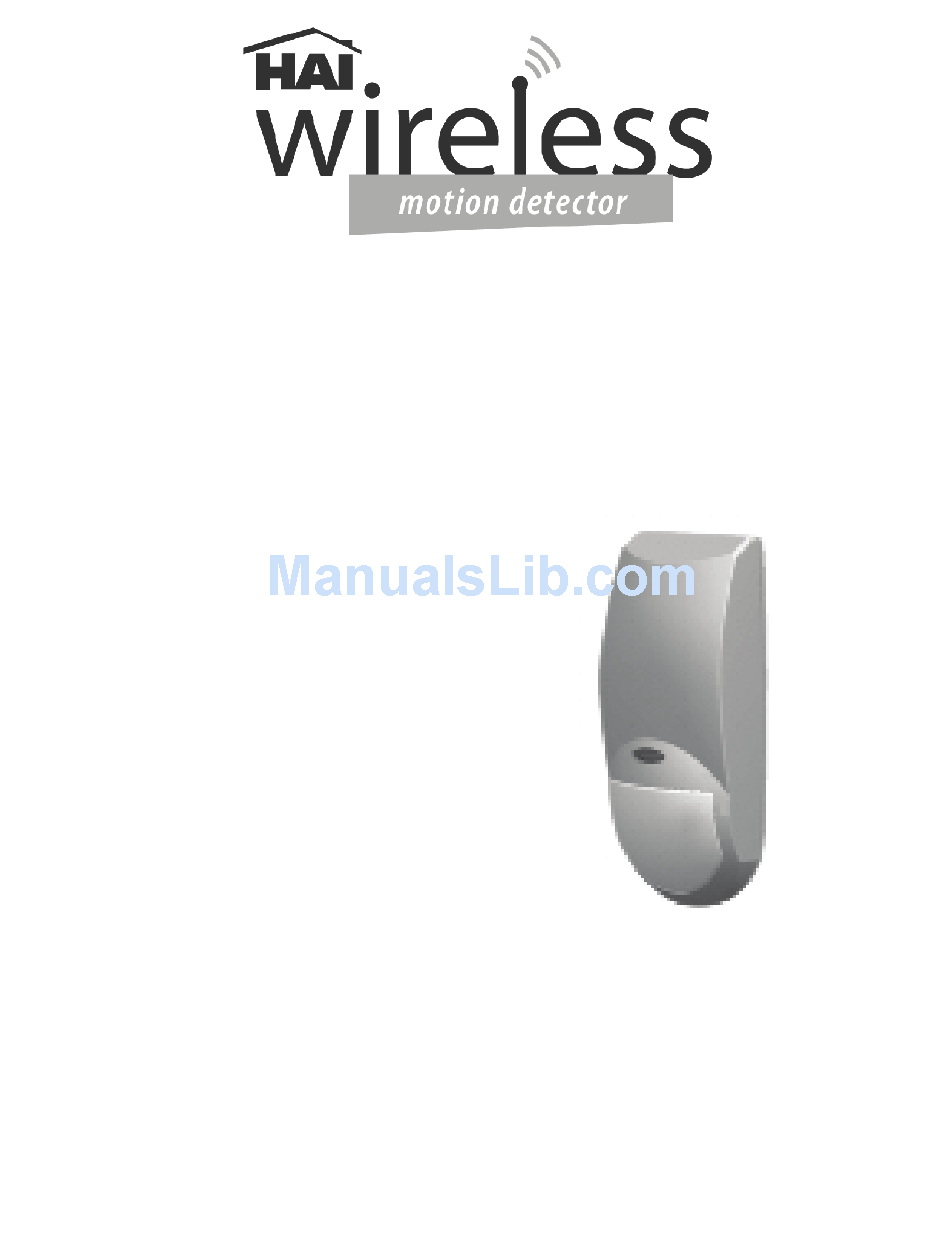

- Page 1 Document Number: 47I00-1, Rev B Installation Instructions Description: The 47A00-1 is a Wireless Quad Pet Immune PIR (Passive Infrared) Motion Detector that works with the HAI 45A00-1 Wireless Receiver. It has a unique Automatic Power Saver (APS) mechanism which enables transmitter activation only 2 minutes after the last movement has been detected to sustain the life of the battery.
-
Page 2: Operation
Battery Low: Whenever the battery reaches a preset low level (2.4V) “Battery Low” signal will be sent with the next message (i.e. Supervision, Alarm, etc.). Tamper: Whenever the cover is removed from the 47A00-1 or the unit’s cover is put back on, a message will be transmitted with “Tamper” signal. - Page 3 The 47A00-1 performs best in a constant and stable environment. Mounting the Detector: The 47A00-1 can be mounted in a corner like any standard PIR or can be easily mounted to a wall or ceiling by using the supplied hardware.
- Page 4 NOTE: The back bracket is not preinstalled in case a corner mount is desired. If the back bracket was installed at the factory and a corner mount was desired, the back bracket would need to be removed and 2 holes would then exist.
- Page 5 To enroll the 47A00-1, put the 45A00-1 Wireless Receiver in to Setup mode, advance to an unused address location, and then press and HOLD the program button located on the 47A00-1 circuit board for 2 seconds. The 47A00-1 will then send a series of transmissions and enroll the transmitter.
- Page 6 Battery: A 3 V Lithium Battery powers the unit. Thanks to the exclusive APS (Automatic Power Saver) characteristics, the battery provides about 4 years of continuous operation (depending on the amount of alarms). If the battery reaches a factory preset low level, the “Battery Low” signal will be sent and the detector will remain operational for 30 days;...
- Page 7 Technical Specifications: Data Protocol: Modulation Type: Event Transmission: Alarm, Tamper (Cover Off), Test, Supervision, and Battery Low Supervision Timing: 60 minutes Detection Method: Quad Element Detection Speed: 0.3 ~ 1.5 m/sec Lens Type: Spherical Hard Lens Detection Coverage: 90.5 (50 x 50) Environment Condition: Jumper for Normal or Harsh selection Battery Lithium:...
