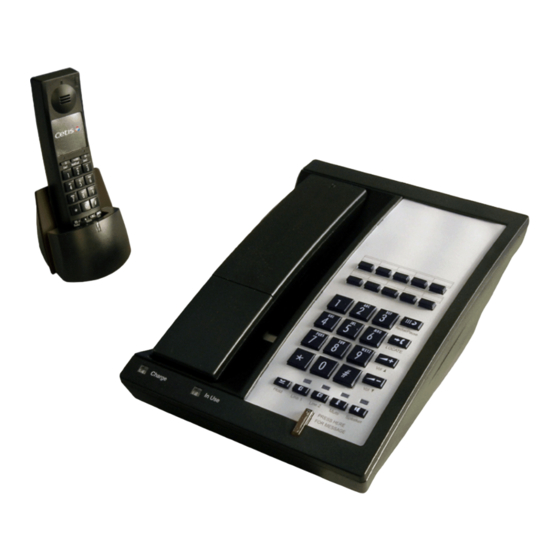

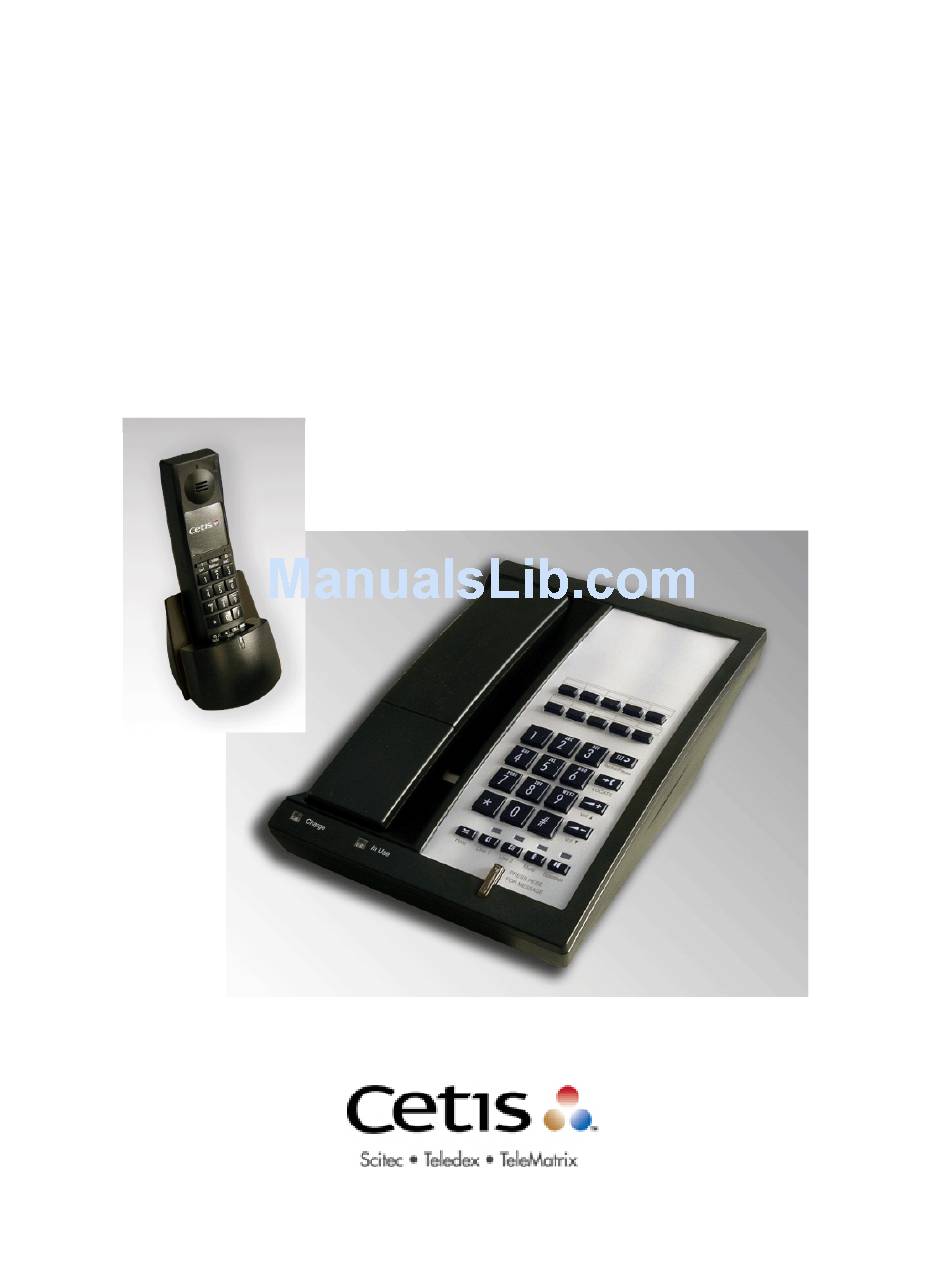

- Page 1 DECT 6.0 & 1.8GHz Auto Sync Cordless Series DECT MWD5·DECT MWD ·DECT 2MWD5 ·DECT 2MWD User’s Guide Single&Two Line·10 or 5 Button Cordless Speakerphones with Optional Charging Stations...
- Page 2 DECT Base： Industrial grade construction,smooth plastic finish Speaker Programmable Store key Programmable Flash key (100ms to 1000ms timed line break) Line Cord receptacle (top end of phone) 6a. HSIA(High Speed Internet Access) receptacle incoming from wall (top end of phone) 6b.
- Page 3 4 5 6a 24 25 26 36 35 36 22 23 20 19 21 18 17 16a 16b 15 14 13 Handset： 24. Cordless Handset –Handset can be synchronized with base with a few simple steps 25. Message Waiting Indicator,blinks when message is waiting 26.
- Page 4 Telephone Underside: 37. Base underside sticker information: Certification – FCC,CE,ETL,ROHS Version label Model name REN number Disposal label QC label Series number Warranty Void If Seal Broken label 38. Message Waiting selector switch TYPE LR1 LR2 39. Non-Slip rubber feet (4) Cordless Handset Charging Station: 40.
- Page 5 Cetis DCT9602 Auto Sync SERIES USERS GUIDE DECT6.0&1.8 GHz Two-Line Cordless Guestroom Telephone Table of Contents: Features: Features & Controls Parts List Installation: Prepare Information Charging the battery Cleaning the battery contacts Battery safety Registering Handset to Base unit Operation:...
- Page 6 Use a pencil eraser or other contact cleaner. Do not use any liquids or solvents. BATTERY SAFETY INSTRUCTIONS 1. Use only Cetis-approved battery replacements. 2. Dispose of used batteries according to local codes pertaining to NiMH batteries.
- Page 7 specific base. To accomplish this procedure, place the handset on the base in the charging position. This process occurs each time the handset is placed on the base in the charging cradle. PLACING A CALL Using the handset: 1. Pick up the handset and select either line 1 or line 2. Listen for dial tone and dial the desired number.
- Page 8 REDIAL The 9602 series can automatically redial the last number dialed. Off-hook, press the REDIAL key to redial the last number. USING THE HOLD KEY The HOLD key places the call on hold locally at the cordless telephone. 1. With a call active, press the HOLD key on either the To remove a call from hold: 1.
- Page 9 as above. 2. Using the second line, place call to second party.then place them on hold as above. 3. Activate the 3-way conference call by pressing HOLD/CONF key on the handset. User includes two callers: 1. After receiving a call from first party, place them on hold as above.
- Page 10 SAR: Tests for SAR are conducted using standard operating positions specified by the FCC with the UPCS handset transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the UPCS handset while operation can be well below the maximum value.
- Page 11 11. DO NOT USE THE TELEPHONE TO REPORT A GAS LEAK IN THE VICINITY OF THE LEAK. PLEASE SAVE THESE INSTRUCTIONS ALL RIGHTS RESERVED. 9602 SERIES DIAGRAM 9602 SERIES USERS GUIDE DECT6.0&1.8GHz Two-Line Cordless Guestroom Telephone CONTACTING Cetis Group Telephone Main: 1.719.638.8821 Toll-Free 1.800.462.9446 Fax: 1.719-638.8815 Internet www.Cetisgroup.com store.teledex.com...
