SEVIC BLUE LASER SBL0304MP4 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SEVIC BLUE LASER
SBL0304MP4
- INSTRUCTION MANUAL
V20071024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUE LASER SBL0304MP4 and is the answer not in the manual?

Questions and answers

Related Manuals for SEVIC BLUE LASER SBL0304MP4

Summary of Contents for SEVIC BLUE LASER SBL0304MP4

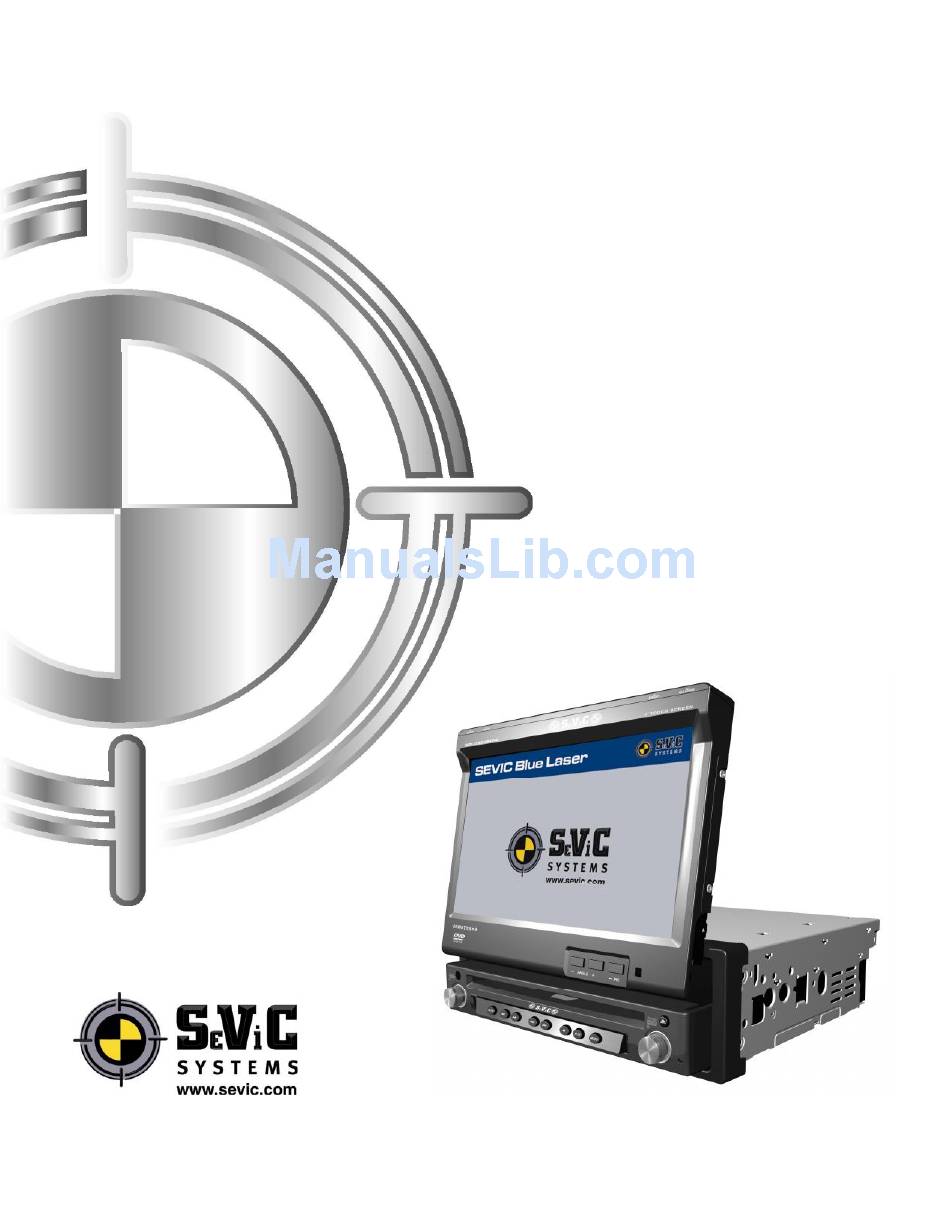

  • Page 1 SEVIC BLUE LASER SBL0304MP4 - INSTRUCTION MANUAL V20071024...

  • Page 2: Table Of Contents

    Contents Thank you for your choosing our product. We hope you will find the instructions in this user manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new unit for maximum enjoyment.
  • Page 3 DVD Player Operation P20-24 Insert/Eject Disc Reset the Loading Mechan ism Accessing DVD Mode Using the Touch-Screen Controls Controlling Playback Accessing the DVD Menu Moving Through Chapters Fast Forward/Fast Reverse GOTO Search Direct Chapter / Track Selection Viewing an Alternate Picture Angle (DVD Only) Multi-Language Discs (DVD Only) Playback Information General Disc Information...

  • Page 4: Preparation P3

    Preparation Please read all of the instructions before beginning the installation. We recommend having your unit installed by a credible installation shop. Features Single DIN size, all-in-one highly integrated functions of entertainment system Built-in DVD Player, Car specification slot -in mechanism Built-in RDS FM/AM Tuner High resolution 7”(16:9) TFT color monitor;...

  • Page 5: Controls And Indicators P4-7

    Controls and Indicators Button Operation...
  • Page 6 ○ ,1 VOL Rotary encoder. Power On/Off: Press this encoder to turn on this unit, press and hold to turn off . Rotate clockwise/anticlockwise to adjust the volume. ○ ,2 MUTE Press the MUTE button to mute the volume, and press the button again to restore the volume. ○...

  • Page 7: Led Display / Indicators

    ○ ,18 TFT DISPLAY ○ ,19 CLOSE (OPEN) Press the button to activate the automatic mechanical system and move the TFT monitor into viewing position. Press again to return. ○ ,20 DISP Press the DISP button to display system information on the LCD screen or on the TFT screen. ○...

  • Page 8: The Key Areas Of Touch Screen

    The key areas of touch screen The touch key areas are outlined below , for DVD, VCD playback mode. Area A Area F Area B Area C Area D Area E A — Return to MAIN menu B — DISP key: Displays playing information C —...

  • Page 9: Remote Control

    Remote Control ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Name Signal Function Power Turns the power on/off Open Open/close the TFT monitor Mute Toggles on/off audio output Selects playing mode...
  • Page 10 Name Signal Function Starts/pauses playback or confirm settings Direction Up/down/left/right to select items for setting buttons Title Enter the title menu Enters the main menu of the disc Root Turn on PBC when playing VCD Repeat Repeat playback of current chapter Selects the next chapter/track for playback Next Searches an available radio station by increasing tuning...

  • Page 11: Using The Tft Monitor P10-11

    Using the TFT Monitor Open/Close TFT Monitor Press the ( ) button on the front panel or on the remote control to open/close the TFT monitor. TFT Monitor Auto Open ·If “TFT Auto Open” is “On”, when the unit is turned on, the monitor automatically moves to the last viewing position.

  • Page 12: Parking Brake Inhibit

    Parking Brake Inhibit • Follow the installation circuit diagram. Connect the “PARKING” cable to brake switch. There will be video display until the brake is active. And should be pass through like that: Initialization is “High” : High—Low—High—Low—wait for 5 sec—video display. Initialization is “Low”...

  • Page 13: Operating Instructions P12-13

    Operating Instructions Power On / Off ·Press the VOL button to turn the unit on. The buttons on the front of the unit light up and “WELCOME” appears briefly in the LCD panel, followed by the current mode status. If the TFT screen is open, only the current mode status is displayed.

  • Page 14: System Reset

    Audio Adjustments Audio Function Adjustable Range User Flat Jazz Classical BASS -7 to +7 TREBLE -7 to +7 FADE -9 to +9 -9 to +9 -7 to +7 LOUD Off, On NOTE: The Bass and Treble levels are only adjustable when EQ is set to “User” mode. The Loud function compensates for deficiencies in sound ranges at low levels.

  • Page 15: System Setup Menu P14-16

    System Setup Menu MAIN Menu There are three methods to access the MAIN menu. ·Press the ENTER button on the front panel . ·Press the MENU button on the remote control. A area ·Touch the on the touch-screen. 1. Touch to access Radio mode 2.

  • Page 16: General Setup Menu

    Adjusting a Feature Setting Options Function -10 to +10 Brightness Select to adjust the Brightness to the desired setting. Screen Tilt 1 to 6 Select (1 to 6) to adjust the tilt of the screen. Screen Saver Select to activate/deactivate the Screen Saver. TS Calibrate Touch “Yes”...

  • Page 17: Standby

    The TFT panel automatically opens when the unit is turned You must press the button on the TFT panel or on the TFT Auto Open remote to open the TFT. The monitor is no any movement when the unit is turned on Manual or turned off.

  • Page 18: Radio Operation P17-19

    Radio (FM/AM) Operation Radio TFT display 1. Current Source information, touch t his area to return to MAIN menu 2. Current Radio Band Indicator 3. Current Preset Station playing Indicator 4. Stereo Broadcasting Indicator 5. Radio Frequency Indicator 6. Preset Radio Stations: Touch to recall preset stations or touch and hold to store a station. 7.

  • Page 19: Select Fm/Am Band

    Select FM/AM Band Touch the BAND button ( ) on the screen, or press the BAND button on the remote control or on the front panel to change among the following bands: FM-1, FM-2, FM-3, AM-1 and AM-2. Auto Tuning Press the button ( ) on the remote control or touch the button on the screen to seek the next available channel by increasing the tuning frequency.
  • Page 20 TA(Traffic Announcement) Function Touch in the screen to activate/deactivate AF function. When TA is activated, the unit will auto seek an available TP or TA station .After the seeking, no matter if PTY was found, the tuner will auto seek each 1 minutes.

  • Page 21: Dvd Player Operation P20-24

    DVD Player Operation NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays caution information with a blue background. Insert/Eject Disc Inserting a Disc When inserting a DVD disc, DVD mode is entered and disc play begins automatically.

  • Page 22: Controlling Playback

    Controlling Playback Stopping Playback Touch the button on the screen or press the button on the remote control to stop DVD play and touch the button on the screen or the OK button on the remote control to resume disk play. Pausing Playback Touch the button on the screen or press the button...

  • Page 23: Goto Search

    GOTO Search During DVD or VCD playback, perform the following steps to use the GOTO feature to access a specific location on a disc: 1. Press the button on remote control or touch the Area F on the touch -screen to enter “GOTO” mode. 2.

  • Page 24: Playback Information

    Playback Information During DVD and VCD playback, press the INFO button on the remote control or touch the area B to display playback information on the screen (media playing, current playback time…) DVD Playback Information The following information is displayed at the top of the screen during DVD playback: ○...

  • Page 25: General Disc Information

    General Disc Information Symbol 12cm Disc Properties Max Play Time (MPEG 2 Method) Single side single layer (DVD -5) 133 minutes Single side double layer (DVD -9) 242 minutes Double side single layer (DVD -10) 266 minutes Double side double layer (DVD -18) 484 minutes (MPEG 1 Method) Single side single layer (VCD)

  • Page 26: Dvd Setup Menu P25-26

    DVD Setup Menu In “DVD Setup” mode, “LANGUAGE ”, “VIDEO”, “RATING” (parental lock) are available for setup. This operation can be performed using the ENTER button, the remote control or touch screen. Accessing the DVD Setup Screen If DVD is selected as the playing source, you can access DVD setup screen through following methods: Press the ENTER button on the right panel or touch the area A to access the MAIN menu, and then touch the button 8 to access DVD Setup Screen.

  • Page 27: Video Menu

    VIDEO Menu VIDEO Menu Features Setting Options Function TV Shape (Aspect Image is presented in wide view with 4:3 aspect ratio. Ratio) 16:9 Image is presented in wide view with 16:9 aspect ratio. Angle Mark Angle indicator (if applicable) is shown. Angle indicator is not shown.

  • Page 28: Cd/Mp3/Wma /Jpeg Operation P27-29

    CD/MP3/WMA/JPEG Operation Instructions for Insert/Eject, Play/Pause, Stopping Playback, Track Selection, Fast Forward/Fast Reverse, Scan, and Random Play are the same for DVD, CD and MP3 operation. Please see the DVD Player Operation section for in formation about these topics. NOTE: CD-R and CD-RW will not play unless the recording session is closed. The file naming formats listed below are compatible with this unit: •...

  • Page 29: Mp3/Wma Discs

    Playing CD Files After inserting a CD disc, files will play in the sequence of the all directory. In playing mode, you can press the numeric button on the remote control or touch the track directly to play. Previous/Next Page Touch the on the screen to navigate through the pages/files .

  • Page 30: Jpeg Discs

    Playing MP3/WMA Files After inserting a MP3/WMA disc, files will play in the sequence of the all directory. In playing back, you can press the numeric button on the remote control or touch the a track directly to play. Change Directory Touch the on the screen to navigate through the directories/folders .

  • Page 31: Ipod Operation P30-31

    IPod Operation Accessing iPod Mode 1. To switch to iPod mode, press the SRC button on the front panel or the (SRC) button on the remote control repeatedly until iPod appears at the top left corner of the screen. 2. Select the Main menu, then touch the iPod icon to select iPod as your source. IPod Instructions The touch keys on the screen for iPod playback are described below.

  • Page 32: Playback Of Video On Ipod

    According to the above instruction 16, when you press the button, the touch screen will display the following. The TFT displays the root directory list classified by the iPod, from which you can select your favorite songs. You can choose a play list from your iPod play lists and then select a song to listen to.

  • Page 33: Troubleshooting

    Troubleshooting Problem Cause Corrective Action GENERAL Radio Fuse blown Install new fuse with correct rating Car battery fuse blown Install new fuse with correct rating Unit will not power on Illegal operation Press the RESET button located in the bottom right corner of the front panel Improper audio output Check wiring and correct...
  • Page 34 TUNER Auto antenna is not Connect the auto antenna control cable properly fully extended Auto antenna not Connect the auto antenna control cable properly Weak station searching properly connected LOCAL function is Turn LOCAL function off activated Cannot insert disc Disc already inside unit Eject current disc and insert new one Disc is warped or...
  • Page 35 Remote control Battery is covered with Pull out the insulation tape Remote control does not insulation tape function Battery depleted Replace battery with new one Battery badly installed Remove battery and install correctly 1. If you use a remote control firs t, you must pull out the insulation tape. 2.

  • Page 36: Specifications

    Specifications CEA Power Ratings Main Amplifier Power Output: 20 watts RMS X 4 channels into 4 -ohms @ < 10% THD+N Signal to Noise Ratio: 70dBA below reference. (Reference: 1 watt, 4-ohms) MAX Power: 45 X 4 watts into 4-ohms, all channels driven Frequency Response: 20Hz to 20kHz, -3dB.

  • Page 38: Warranty Terms And Conditions P37

    8) For repairs: Please contact your retailer. 9) For any disputes or litigation: The law courts of Luxembourg are exclusively competent. 10) For all information: SEVIC SYSTEMS Luxembourg S.A. Zone Industrielle Breedewues L-1259 Senningerberg (Luxembourg) Phone: (+352) 26 34 57 29...
