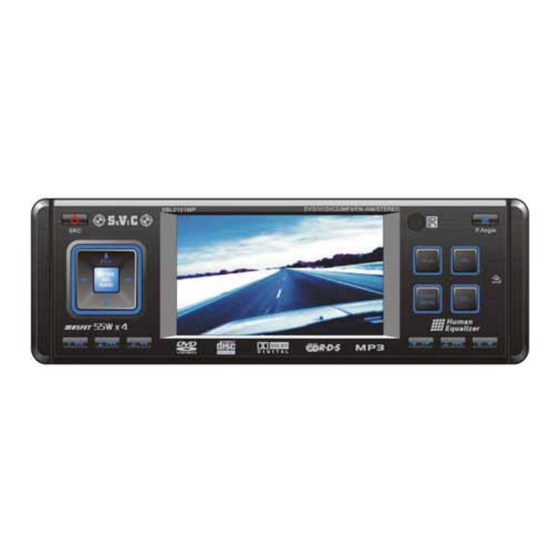

Summary of Contents for SEVIC SBL0101MP

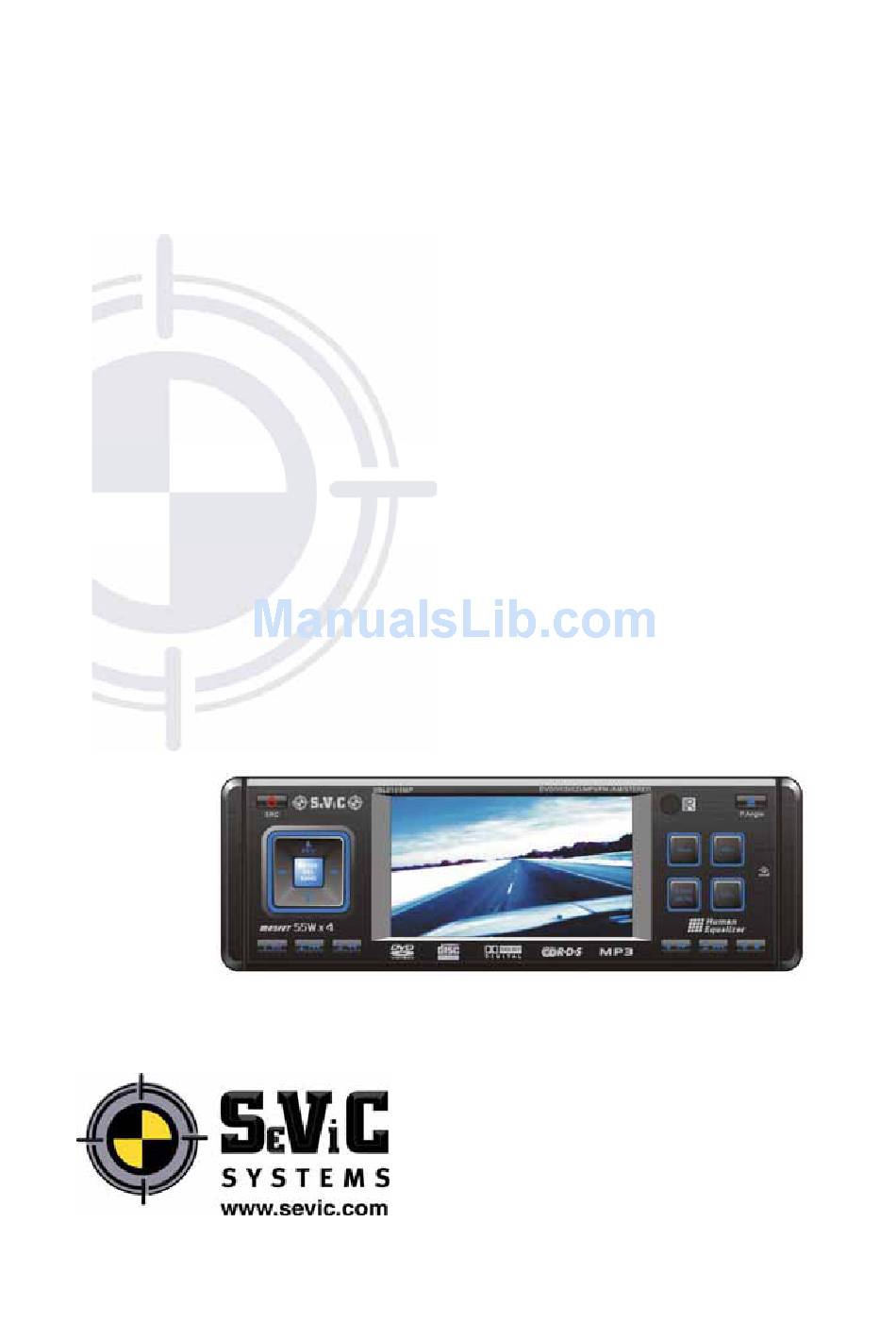

- Page 1 BLUE LASER: SBL0101MP - User’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ….…………………………………………………………………….2 Features …………………………………………………………………………………...3 Accessories………………………………………………………………………………..4 Front Panel Description ………………………………………………………………….5 Remote Control …………………………………………………………………………...6 Installation …………………………………………………………………………………8 Unit Removal ……………………………………………………………………………..11 Wire Connection …………………………………………………………………………12 Disc Notes ………………………………………………………………………………..13 Disc Operation …………………………………………………………………………...14 Basic Operations …………………………………………………………………...……15 DVD/VCD/CD/MP3 Function .................17 Radio Function …………………………………………………………………………..19 Setup ………………………………………………………………………………..……21 Specifications ……………………………………………………………………………24 Trouble Shooting ………………………………………………………………………..25 Warranty ………………………………………………………………………………….26... -
Page 3: Safety Information
SAFETY INFORMATION Please read the manual carefully before operating this unit and keep it for future reference. CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the laser system, do not open the unit. The laser beam may hurt your eyes. If the unit requires adjustments, contact an authorized service centre. -
Page 4: Features
FEATURES - ISO/DIN - DVD/VCD/CD/CD-R/CD-RW/MP3 Compatible - 3.6" Wide-Screen TFT/LCD Display - High Brightness: 250 cd/m - Colour, Contrast, Brightness, Tint controls - Fully Motorized Drop Down Front Panel - Motorized Viewing Angle Adjustment - Last Angle Memory - DVD Slot-in Mechanism - Digital &... -
Page 5: Accessories
ACCESSORIES Mounting Sleeve x 1 Backstrap x 1 5X5 Screws x 4 Keys x 2 Main Wire Harness x 1 Faceplate Case x 1 Remote Control x 1 Operational Manual + Warranty x 1 Trim Bezel x 1 Rear Mounting Bolt x 1 - 4 -... -
Page 6: Front Panel Description
FRONT PANEL 1. POWER / SOURCE 7. NEXT 13. TA Announcement 2. ENTER / SELECT / BAND 8. STOP 14. EJECT / P.ANGLE 3. PLAY / PAUSE 9. LOUD / MUTE 15. REMOTE 4. PREVIOUS 10. VOLUME- 16. AF Alternative Frequencies 5. -
Page 7: Remote Control
REMOTE CONTROL 1. POWER/SOURCE 13. F.FWD 25. SUBTITLE 2. MUTE 14. SLOW 26. PREVIOUS 3. NUMBER BUTTONS 15. RANDOM 27. RIGHT(Seek up) 4. MENU 16. ZOOM 28. NEXT 5. AUDIO 17. SELECT 29. D.ANGLE 6. DISPLAY 18. EJECT / P.ANGLE 30. - Page 8 Replacing the batteries f the remote control has no function or if the operating range is reduced, replace the old battery with new one. 1. Remove the battery cover. Follow the arrow (1) slide the tab to the right while pulling the cover away at the same time. 2.
-
Page 9: Installation
UNIT INSTALLATION Installation Method 1: Din Front-Mount Install the Mounting sleeve into the dashboard. Bend as many claws outward for tight fit, to lock the sleeve into place. - 8 -... - Page 10 Install the trim bezel to the unit. (Arched surface toward the bottom). Use the Rear Mounting Bolt to support the unit. - 9 -...
-
Page 11: Installation Method
Installation Method 2: Using the screw holes at the sides of the unit(ISO Mount ). 1. Remove the hooks on both sides. 2. Select a position where the screw holes of the mounting bracket supplied with the car and the screw holes of the main unit become aligned, tighten the screws on each side, and re-mount the brackets with the factory hardware in the original location. -
Page 12: Unit Removal
UNIT REMOVAL ( when installed using the sleeve) 1. Detach the front panel. 2. Insert the keys supplied with the unit on both sides ( as illustrated) as this will release the internal locks so you can slide the unit out. - 11 -... -
Page 13: Wire Connection
WIRE CONNECTION - 12 -... -
Page 14: Disc Notes
DISC NOTES ■ Disc formats supported by this player Handling and cleaning • Dirty, dusty, scratched or warped discs may not play properly. • Do not place stickers or make scratches on discs • Do not warp discs. • Store discs in their cases when not in use. •... -
Page 15: Disc Operation
DISC OPERATION Repairing New Discs with Rough Spots A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. -
Page 16: Basic Operations
BASIC OPERATIONS Power: Press the POWER button to turn the unit ON; Press and hold the button to turn the unit OFF. Switching sources: When the unit in turned ON, press the POWER button to toggle between the different modes. Mute: Press the MUTE/LOUD button to switch off the sound;... - Page 17 In the radio mode, press the SEL button to enter the tuner setup menu. This tuner can be switched to work in different countries. Choose the area that works best for you. Note: Following areas can be chosen: EUROPE-ASIA -USA-JAPAN-OIRT SEL: Press and hold the SEL button to access the preset EQ settings or the user settings to adjust the audio output to your preference.
-
Page 18: Dvd/Vcd/Cd/Mp3 Function
Restore Default Angle Turn OFF the unit; then press preset buttons 1-6 and power the unit back ON. The monitor should display ‘MOTOR ALGN OK”. Press the OPEN button and insert a CD. The motor and gear drives are now back to their factory positions. DVD/VCD/CD/MP3 OPERATIONS Inserting disc Press EJECT button, the front panel will slide down to... - Page 19 Previous/Next Press the Previous/Next button to go to the PREVIOUS/NEXT chapter , track or song. Setup Press the SETUP button to enter the setup menu. Enter In DVD mode, press the ENTER button to confirm the Setup Menu. Direction Press the direction buttons (UP/DOWN/LEFT/RIGHT arrow) to move the cursor to the selected item Display Press the DISPLAY button to display the current playback information on the screen.
-
Page 20: Radio Function
Press the P/N button to select the video output format (PAL/NTSC). Number Buttons Press the number buttons to play your favourite track. For example: to play track 8, press the button 8. To play track 68, press the buttons 6 and 8 etc. Random Press the RDM button to shuffle all tracks. - Page 21 RADIO DATA SYSTEM 1. AF In radio mode, push this button to activate the AF mode. When receiving conditions become bad, a station with better receiving conditions is automatically tuned into. When searching an RDS station, the letters "AF" will flicker on the display; when receiving an RDS station, "AF"...
-
Page 22: Setup
SETUP OF PLAYER Setup Menu Press Setup button to enter Setup Menu. Use the UP/DOWN and LEFT/RIGHT arrow buttons to select the items you want to change. Press the Enter button to confirm the item you have selected. Press Setup to exit and save the Modifications. Note: only available in DVD mode. - Page 23 Disc Subtitle Press this button to activate / deactivate the subtitle function. Following options are available for the subtitle language: Original English Spanish German Italian Portuguese French Russian Chinese Other DISPLAY SETUP DISPLAY SETUP MENU TV Aspect: Allows you to select different aspect ratios. You can choose from the following: 16:9 / 4:3 Display Mode: you can choose between Widescreen (Full Mode) and Letterbox (a black band will be displayed at the top and at the bottom of the picture.)
- Page 24 LOCK SETUP LOCK SETUP MENU Following options are available: Rating: You can select the maximum rating of the disc by entering the password (default password is: 0000). Country Code: Select which ever works best for you. OTHER SETUPS OTHERS SETUP MENU Load Default: You can restore all default settings by selecting this option.
-
Page 25: Specifications
SPECIFICATIONS GENERAL Supply Voltage : 14.4V DC (11-16V allowed) Load Impedance : 4Ω per channel Max Power Output : 55W x 4 Bass 100Hz : ≥ 10dB Treble 10KHz : ≥ 10dB Dimensions (approx.) : 188x183x58mm (d/w/h) Mounting (approx.) : 350x235x105mm (d/w/h) Weight (approx.) : 1.8Kg FM TUNER... -
Page 26: Trouble Shooting
TROUBLE SHOOTING SYMPTOM CAUSE / SOLUTION No sound Cancel the mute function. Adjust the volume. The memory contents are lost Disconnect the power wire or battery. Press the reset button. The disc does not play The disc might be dirty or damaged. The disc comes out The temperature is outside the range of the automatically... -
Page 27: Warranty
Please contact your retailer. 9) For any disputes or litigation: The law courts of Luxembourg are exclusively competent. 10) For all information contact: SEVIC SYSTEMS Luxembourg S.A. Zone Industrielle Breedewues L-1259 Senningerberg Phone: (+352) 26 34 57 29 Fax: (+352) 26 34 57 27 Email : svc@sevic.com...
