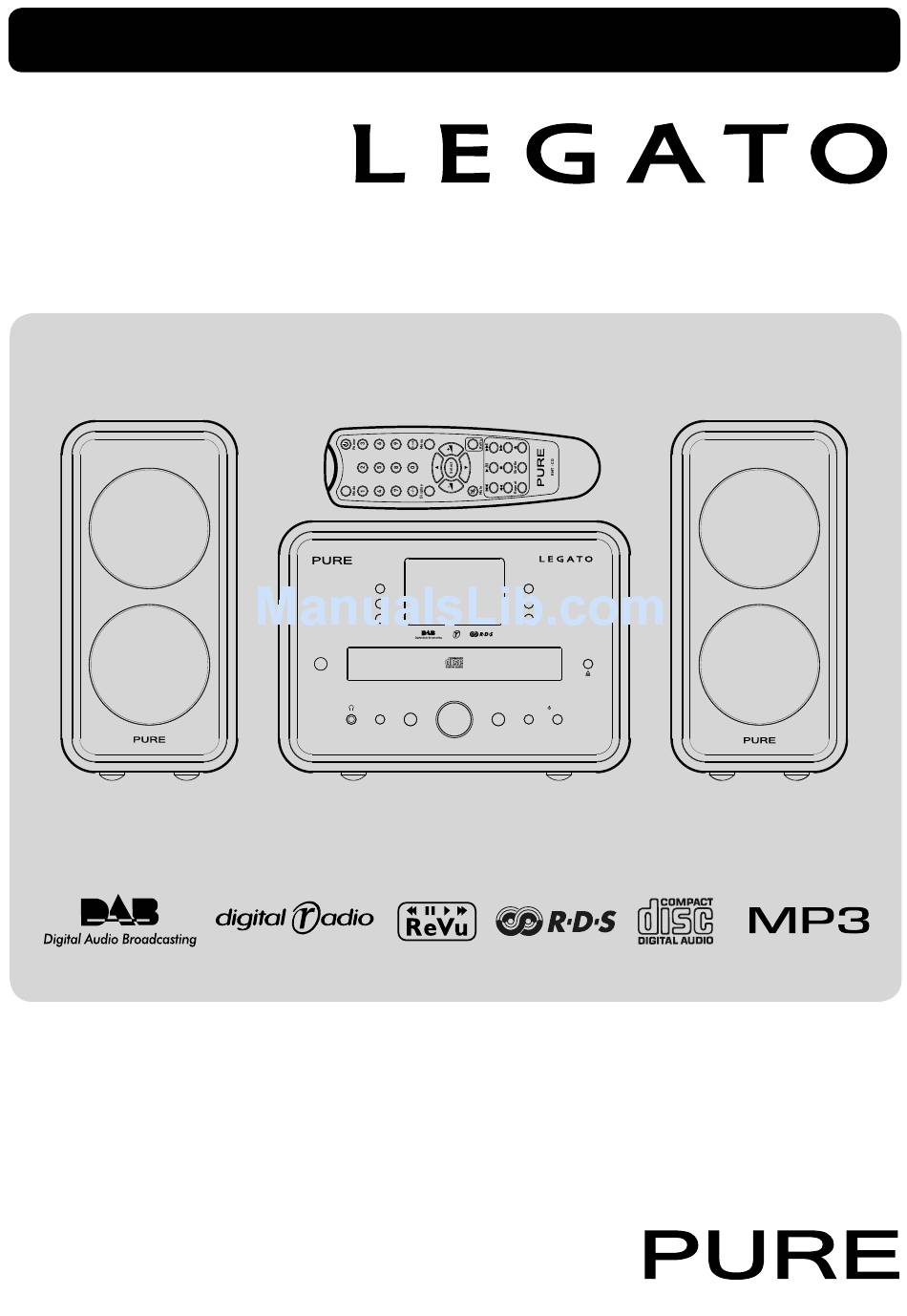

- Page 1 Owner’s manual CD-40 ReVu Display Menu Mode Power CD/DAB/FM...
-
Page 2: Safety Instructions
Trademarks Legato, the Legato logo, ReVu, the ReVu logo, PURE, the PURE logo, PURE Digital, the PURE Digital logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited. All other product names are trademarks of their respective companies. -
Page 3: Table Of Contents
Table of contents Getting started ..............2 Overview diagrams................... 2 Connecting speakers ................4 Switch on and off..................4 Changing the volume ................4 Navigating menus ..................4 Listening to DAB radio ............5 Selecting a station ..................5 Changing the information displayed ............5 ReVu™... -
Page 4: Getting Started
Getting started Overview diagrams These diagrams show the function of controls, the connectors on the rear panel, the remote control and screen icons. Front panel Six shortcut buttons Provide quick access to radio presets, CD/MP3 controls and menu options LCD screen Backlit LCD screen with variable contrast and brightness CD tray... -
Page 5: Remote Control
Remote control Power Mode Switches between Switches between Mode Power on and standby DAB/FM/CD/AUX Preset keys Press Save and number to store. Press number to recall. Press -/-- first to recall double digit presets. Menu Display -/-- Save Change audio and Toggles between Display Menu... -
Page 6: Connecting Speakers
Connecting speakers Nominal impedance 6 ohms Nominal impedance 6 ohms Maximum power rating 30W Maximum power rating 30W Manufactured in China Manufactured in China Part number 12A67 Part number 12A67 When connecting speakers connect the red (positive) terminals on Legato to the red terminals on the speaker and black (negative) to black. -
Page 7: Listening To Dab Radio
Listening to DAB radio To listen to DAB radio push the Mode button until you see DAB in the top left of the D AB 0 9 : 4 0 screen. BBC Radio 1 When you first switch on your Legato it automatically enters DAB mode, autotunes to J o W h i l e y ' s Ch a n g i n g find all the DAB stations available in your area and lists them in alphanumeric order. -
Page 8: Storing And Recalling Presets
When you enter ReVu mode you see the ReVu icon on the screen and a timer shows how many minutes and seconds behind the live broadcast you are. D AB 0 9 : 4 0 BBC R a d i o 1 Once in ReVu mode you can toggle between paused and playing by pushing the ReVu button again or pressing the pause/play ( / ) button. - Page 9 Station order Change the order of stations on your station list using this option. The current order is shown at the top of the screen. Choose from the following: Alphanumeric Displays all stations in alphanumeric order. Favourite Displays your eight most listened to stations at the top of the station list and the others below.
-
Page 10: Playing A Cd
Playing a CD To listen to a CD push the Mode button until you see CD in the top left of the screen. 0 9 : 4 0 Push the eject button ( ) and place your CD label side up in the CD tray. Push the T o t a l T r a c k s : 1 5 eject button again to load the CD. - Page 11 To create a playlist: Turn the Tuning dial and push to set the first track on your playlist. Repeat until you have completed your playlist and push the bottom right shortcut button (OK) to set your playlist and exit. This automatically sets the Play mode to [LIST].
-
Page 12: Playing An Mp3 Cd
Playing an MP3 CD Push the Mode button until you see CD in the top left of the screen to listen to a CD with MP3 files stored on it. Legato automatically detects if a CD has MP3 files on it 0 9 : 4 0 and changes to MP3 mode. -
Page 13: Listening To Fm Radio
Listening to FM radio To listen to FM radio push the Mode button until you see FM in the top left of the 1 1 : 4 0 screen. The first time you enter FM mode Legato asks you to select the FM tuning Chiltern mode you want. -
Page 14: Changing Fm Options
Changing FM options F M M e n u To customise the way your Legato works in FM mode push the Menu button, Tune [ BYNAME] select FM and choose from the following: t a t i o n o r d e r Au t o t u n e Tune Push the Tuning dial to choose between [BYNAME] which shows stations... -
Page 15: Listening To Another Source
Listening to another source To listen to an audio source such as MiniDisc player attached to the Aux inputs on AU X your Legato push the Mode button until you see AUX in the top left of the screen. Au x i l i a r y i n p u t 0 2 / 0 8 / 0 4 1 1 3 9 AUX mode... -
Page 16: General Setup Options
General setup options Push the menu button to access general setup options and alarms. These options are available at all times, whether listening to radio or a CD. Choose one of the following options: Audio Au d i o M e n u To customise how your Legato sounds choose one of the following: T o n e Tone... -
Page 17: Software Version/Upgrade
Software Upgrade option. For information on whether upgrades might be available for your unit refer to the PURE website at www.pure.com/support or contact the PURE support team at the address on the rear of this manual. To upgrade your software, press the Software Upgrade shortcut button and... -
Page 18: Hints And Tips
Hints and tips (/) DAB Secondary services Secondary services accompany some stations, providing extra information or alternative content and may only be broadcast at certain times. At the time of writing not many secondary services are available. If a station has secondary services available, the station shows ‘>>’... -
Page 19: Technical Specifications
Multiple playback modes (repeat, shuffle, etc.) MP3 playback, including support for ID3 tags and M3U playlists PURE ReVu™ enables pause and rewind of live DAB digital radio Full Band III (174 - 240 MHz) reception. Fully compliant with ETS 300 401... - Page 20 PURE Digital, Imagination Technologies Ltd., Imagination House, Home Park Estate, Kings Langley, Herts, WD4 8LZ, UK +44 (0) 1923 277477 support +44 (0) 1923 270188 support@pure.com +44 (0) 1923 277488 sales sales@pure.com 12G69...
