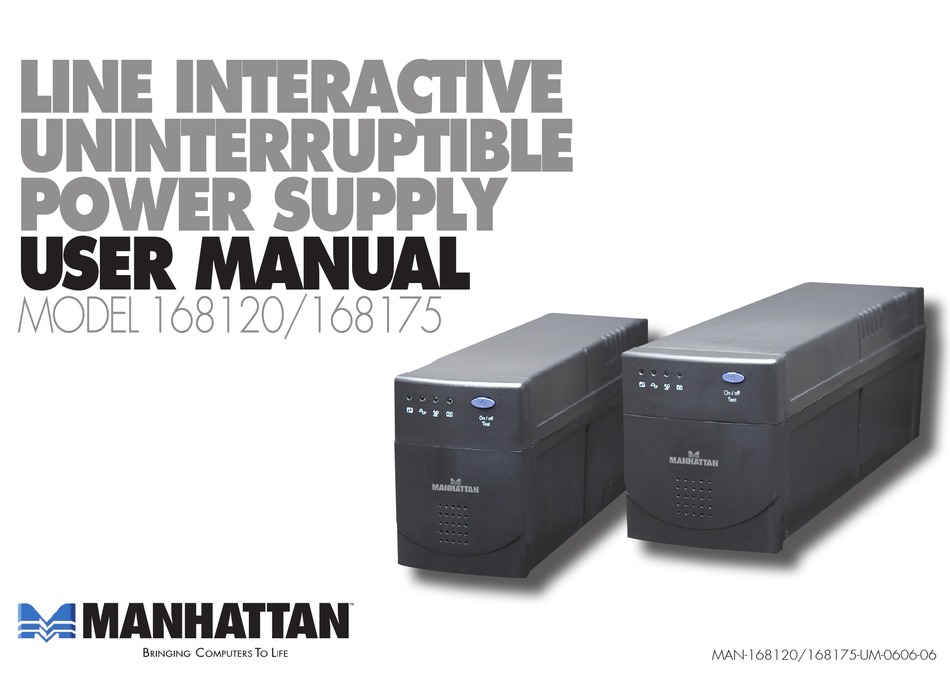

Page 1: Power Supply
Manual MODEL 168120/168175 MAN-168120/168175-UM-0606-06... - Page 2 • $100,000 connected equipment guarantee (US and Canada only) • Lifetime Warranty, UPS; Three-year Warranty, battery Package contents: • Line Interactive UPS Model 168120 (500 VA / 300 W) or Model 168175 (1000 VA / 600 W) • UPS Monitor Software CD • Connecting Cables...
-
Page 3: Safety Instructions
& installation This MANHATTAN Line Interactive UPS can protect your equipment from surges, spikes, blackouts, brownouts and line noise. When AC power is present and the UPS is turned on, it continues to charge the battery and provide power to the equipment directly from the AC line. - Page 4 120 V AC Version The 120 V AC version of the MANHATTAN Line Interactive UPS is furnished with a line cord terminated with a standard NEMA 5- 1 5P three-pronged plug. The UPS must be plugged into a two-pole, three-wire grounding receptacle.
-
Page 5: Initial Battery Charging
Initial Battery Charging The UPS is shipped from the factory with its internal battery fully charged. However, the battery may lose some charge during shipping and storage. The battery should be recharged before conducting the following test for proper operation and to ensure the UPS will provide expected run time. The UPS automatically charges the battery whenever the UPS is plugged in (the On/Off/Test switch doesn’t have to be turned on). - Page 6 source of power that is limited in duration. Restore power to the UPS by plugging in the line cord. Repeat this test four or five times to ensure proper operation. Another way to test the operation of the UPS is to simply press and hold the On/Off/Test button for two seconds or more, and then release it to run a self-test routine.
-
Page 7: Controls And Indicators
3. Overload LED: During an overload operation, the UPS will emit a loud tone and this LED will come on. See Troubleshooting to recover the UPS. 120 V Model 168120 shown. Indicators are similar for 220 V version and both versions 4. - Page 8 8. Battery Backup & Surge Protection Outlets: These 120 V Models 168120, left; 168175, right. Output ports for 220 V models will vary in number and type. See Specifications. provide emergency battery backup power, as well as surge protection.
-
Page 9: Indicator Table
10. Communications Port: This connects the UPS to your computer via an RS- 2 32 serial cable. (UPS monitor software is included.) NOTE: The UPS can work independently without an RS- 2 32 connection. 11. Telephone/Network Surge Suppression: The RJ- 1 1/45 module connectors are used for single-line telephone and 10 Base-T surge protection. -
Page 10: Troubleshooting
troubleshooting Symptom Possible Cause Action to Take The UPS will not turn UPS is not plugged into an AC Plug the UPS in and turn it on. If power is still not outlet and/or is not turned on. present, make sure the circuit breaker on your building is not accidentally turned off. -
Page 11: Specifications
Available in 120 V (NEMA) and 220 V (IEC) models Model 168120 • Outlets: 3 NEMA (120 V), 3 backup + surge only; 2 IEC (220 V), 2 back-up + surge • Times: - Backup: 3 minutes at full load; 10 minutes at 50% load; 30 minutes at varying loads (typical with PC and 15”... - Page 12 • Operation relative humidity: 0 to 95% (non-condensing) • LED indicators: Online, Overload, On Battery and Bad Battery • Audible alarms: Overload, On Battery, Low Battery Package Contents • Line Interactive UPS, 500 VA / 300 W • Power Management Software CD (Windows 98/SE/Me/2000/XP compatible) •...
- Page 13 • Voltage regulation: output, +/– 5% (battery mode) • Frequency regulation: output, 50/60 Hz +/– 1% • Automatic voltage regulation (AVR): 120 V and 220 V models • Waveform: simulated sine wave • Overload protection: 110% warning and UPS shutoff after 10 seconds; 120% UPS turnoff at once •...
-
Page 14: Warranty Information
Coverage For the original purchaser of this MANHATTAN Uninterruptible Power Supply residing in the United States or Canada, the device itself features a lifetime warranty covering material and workmanship (with a three-year warranty on the battery). Should the UPS fail, it will either be repaired or replaced (manufacturer’s option). - Page 15 a purpose, end when the original purchaser no longer owns the product and three years from the date of purchase for the battery. Note: Some states do not allow time limitations on implied warranties, which means the above limitations may not apply.
- Page 16 PC Components, ® Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
