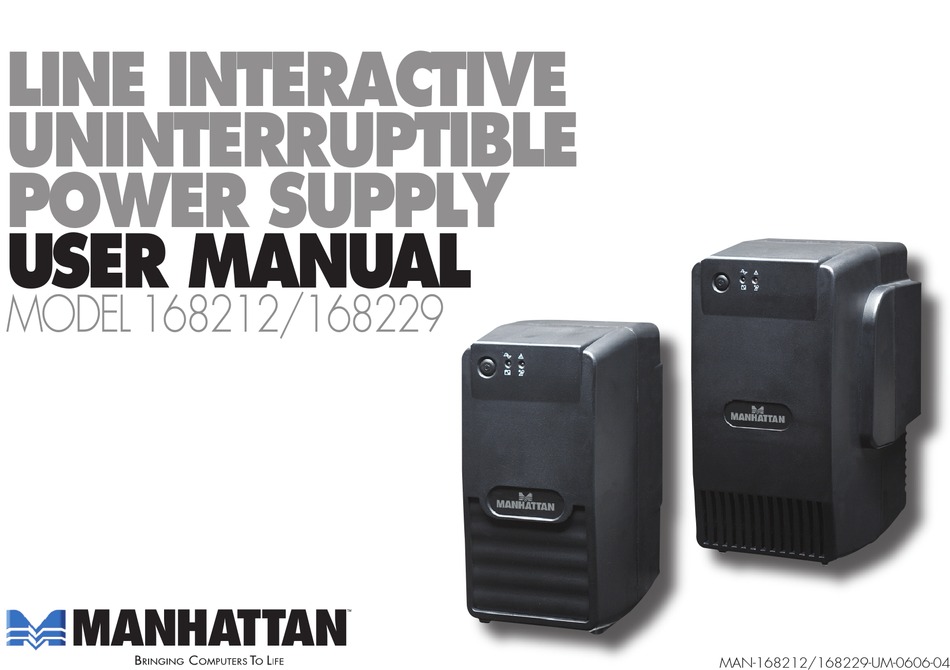

Page 1: Power Supply
Manual MODEL 168212/168229 MAN-168212/168229-UM-0606-04... -
Page 2: Safety Instructions
Line Interactive Uninterruptible Power Supply, Model ® 168212 or 168229. This uninterruptible power supply (UPS) protects your computer hardware from physical damage and will provide emergency battery backup power to prevent data loss in the event of power problems. The main features include: •... -
Page 3: Operation & Installation
& installation This MANHATTAN Line Interactive UPS can protect your equipment from all power problems, including surges, spikes, blackouts, brownouts and line noise. When AC power is present and the UPS is on, it continues to charge the battery and provide the power to the equipment directly from the AC line. - Page 4 1. On/Off Button: The On/Off button controls power to your equipment and performs a self-test. NOTE: To turn on the MANHATTAN Line Interactive UPS, press and hold the On/Off button in for at least two seconds, then release the button after the beep.
- Page 5 120 V Model 168229 shown. Output ports for 220 V model will vary in number and type. See Specifications. 2. Line Battery LED (Green LED): Indicates the UPS is providing AC power to your equipment. When the LED is blinking, the UPS is providing power from the battery.
- Page 6 3. Warning LED (Red LED): When in AC or DC mode, the blinking LED could indicate that the battery should be replaced. When the LED is always on, it indicates an overload condition or UPS fault. For details, see the Indicator Table. 4. Surge Protection Outlets (Bypass Outlets): These outlets provide protection from surges and spikes. 5. Battery Backup & Surge Protection Outlets: These outlets not only provide surge protection, but also provide emergency battery backup power.
-
Page 7: Indicator Table
indicator table The UPS has both visible (LED) and audible (alarm) status indicators. One LED indicates AC or DC mode; the other indicates a fault or overload condition. Green LED Red LED Alarm UPS Status Indication On AC Mode (Operation) On On beeps 0. sec. / per 10 sec. -
Page 8: Troubleshooting
troubleshooting Symptom Possible Cause Action to Take The UPS will not turn UPS is not turned on. Switch on the ON/OFF button. If power is not present, make sure your circuit breaker on the building is not accidentally turned off. Circuit breaker has tripped. Reduce the amount of equipment plugged into the Battery Backup &... -
Page 9: Specifications
Model 168212 — Available in 120 V (NEMA) and 220 V (IEC) models • Outlets: 6 NEMA (120 V), 3 backup + surge / 3 surge only; 3 IEC (220 V), 3 back-up + surge • Times: - Backup: 3 minutes at full load; 7 minutes at 50% load; 25 minutes at varying loads (typical with PC and 15”... - Page 10 Model 168229 — Available in 120 V (NEMA) and 220 V (IEC) models • Outlets: 6 NEMA (120 V), 3 backup + surge / 3 surge only; 6 IEC (220 V), 3 back-up + surge / 3 surge only • Times: - Backup: 5 minutes at full load; 12 minutes at 50% load; 35 minutes at varying loads (typical with PC and 15”...
- Page 11 • User manual WARRANTY INFORMATION Coverage: For the original purchaser of this MANHATTAN Uninterruptible Power Supply residing in the United States or Canada, the device itself features a lifetime warranty covering material and workmanship (with a three-year warranty on the battery). Should the UPS fail, it will either be repaired or replaced (manufacturer’s option).
- Page 12 MANHATTAN offers a complete line of PC Components, ® Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
