Summary of Contents for ADLINK Technology PCIS-8580-4S

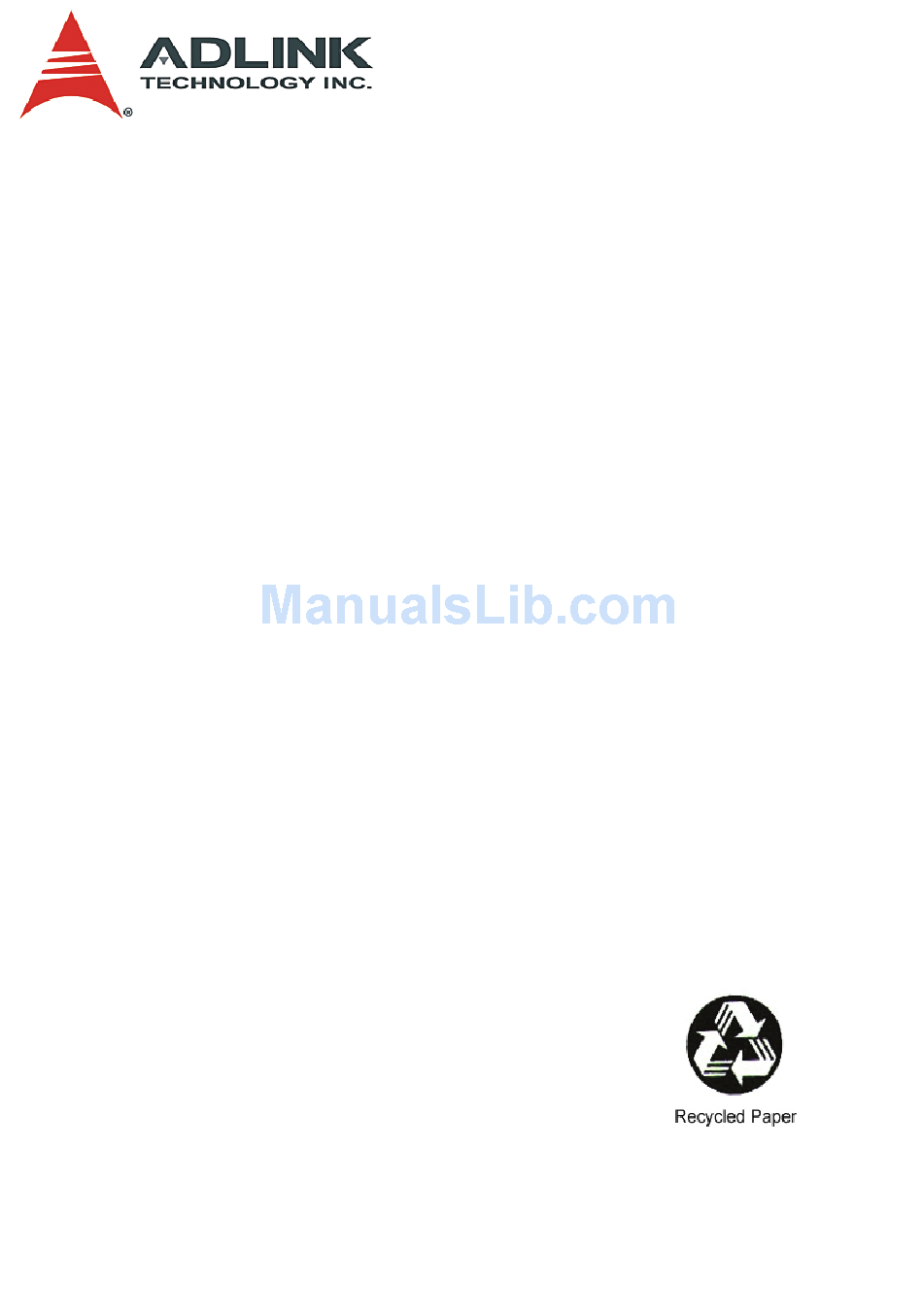

- Page 1 PCIS-8580-4S PCIS-8580-13S User’s Manual Manual Rev. 2.01 Revision Date: December 21, 2006 Part No: 50-15054-1000 Advance Technologies; Automate the World.
- Page 2 Trademarks NuDAQ, NuIPC, DAQBench are registered trademarks of ADLINK TECHNOLOGY INC. Product names mentioned herein are used for identification pur- poses only and may be trademarks and/or registered trademarks...
- Page 3 Getting Service from ADLINK Customer Satisfaction is top priority for ADLINK Technology Inc. Please contact us should you require any service or assistance. ADLINK TECHNOLOGY INC. Web Site: http://www.adlinktech.com Sales & Service: Service@adlinktech.com TEL: +886-2-82265877 FAX: +886-2-82265717 Address: 9F, No. 166, Jian Yi Road, Chungho City,...
-
Page 5: Table Of Contents
Table of Contents..............i List of Tables................iii List of Figures ................ iv 1 Introduction ................ 1 Features................2 PCIS-8580-4S ..............2 PCIS-8580-13S ............... 2 Applications ................. 2 Specifications............... 3 LPCI-8575 PCI-PCI Extension Card ....... 3 RK-8005 Extension chassis ..........4 RK-8014 Extension chassis .......... - Page 6 RK-8005................25 Mechanical Drawing of RK-8005 ........25 BP-8014 ................26 Backplane Architecture ..........26 Jumpers and Connectors ..........27 Remote Power-on Function .......... 27 RK-8014................29 Mechanical Drawing of RK-8014 ........29 ACL-PCIEXT-2..............30 Pin Assignment of ACL-PCIEXT-2 ....... 30 Warranty Policy ..............
-
Page 7: List Of Tables
List of Tables Table 1-1: Power requirements ..........3 Table 3-1: Jumpers and connectors on the LPCI-8575 ... 17 Table 3-2: JP1 Settings ............18 Table 3-3: JP2 Settings ............18 Table 3-4: JP3 Settings ............19 Table 3-5: D2 Display .............. 20 Table 3-6: Top side jumpers and connectors ...... - Page 8 Figure 2-2: Installing the driver for PCI extension card ....10 Figure 2-3: Install your PCI cards into the extension chassis (using the PCIS-8580-4S as an example) ......11 Figure 2-4: Connect you host computer and extension chassis (using the PCIS-8580-4S as an example) ......12 Figure 3-1: Operation theory of PCIS-8580 PCI-to-PCI extension system ..............
-
Page 9: Introduction
The ADLINK PCIS-8580 PCI-to-PCI extension system is com- posed of three major components: a PCI extension card (LPCI- 8575), an extension chassis (RK-8005 for PCIS-8580-4S or RK- 8014 for PCIS-8580-13S), and a cable (ACL-PCIEXT-2). The PCI extension card is the core of this system. It acts as a PCI bridge... -
Page 10: Features
1.1 Features PCIS-8580-4S PCI local bus specification Rev 2.2 compliant PCI bridge architecture specification Rev 1.2 compliant Provides 4 extended PCI slots Full 32-bit/33MHz PCI bandwidth extension (132MB/s) Maximal 10m extension distance Complete hardware and software transparency 24-pin DVI-D connector for robust connectivity... -
Page 11: Specifications
1.3 Specifications LPCI-8575 PCI-PCI Extension Card PCI local bus specification Rev 2.2 compliant PCI bridge architecture specification Rev 1.2 compliant Supports both 5V and 3.3V PCI bus Data throughput: full 32-bit/33MHz PCI bandwidth (132MB/ I/O connector: DVI-D 24-pin connector Link indicator (Green LED) Off: Extension or host computer does not power on On: Link status is good Blink: Link status is failed. -
Page 12: Rk-8005 Extension Chassis
RK-8005 Extension chassis Dimensions: 122mm(W) x 195mm(H) x 260mm(D) Weight: 2.3kg Backplane: 5x 32-bit/33MHz PCI slots 1 slot for extension card 4 slots available for PCI cards Front-panel indicators Power indicator (Red LED) Link indicator (Green LED) Off: Extension or host computer does not power on On: Link status is good Blink: Link status is failed. -
Page 13: Rk-8014 Extension Chassis
RK-8014 Extension chassis Dimensions: 438.5mm(W) x 177mm(H) x 448.5mm(D) Weight: 2.3kg Backplane: 14x 32-bit/33MHz PCI slots 1 slot for extension card 13 slots available for PCI cards Front-panel indicators Power indicator (Red LED) Link indicator (Green LED) Off: Extension or host computer does not power on On: Link status is good Blink: Link status is failed. - Page 14 Introduction...
-
Page 15: Installation
One ACL-PCIEXT-2 cable One AC power cord This User’s Manual If any of these items are missing or damaged, contact your ADLINK dealer. Save the shipping materials and carton in to ship or store the product in the future. Installation... -
Page 16: Unpacking
2.2 Unpacking The ADLINK PCIS-8580 system contains some electro-static sen- sitive components that can be easily be damaged by static elec- tricity. For this reason, the card and chassis should be handled on a grounded anti-static mat and the operator should wear an anti- static wristband during the unpacking and installation procedure. -
Page 17: Driver Installation
After installing the PCI extension card into your host computer, now you can turn on your computer and install the driver of PCI extension card. Please follow the following steps to finish the driver installation. 1. Insert the ADLINK ALL-In-One CD. 2. Execute x:\Driver Installation\PCI Exten- sion\PCIS_8580_setup.exe to launch the setup pro-... -
Page 18: Install Your Pci Card Into The Extension Chassis
Install your PCI Card into the Extension Chassis The PCIS-8580 extension chassis can accommodate 4 additional PCI slots (PCIS-8580-4S) or 13 additional PCI slots (PCIS-8580- 13S). This section illustrates the procedures to install your PCI cards into the extension chassis. -
Page 19: Figure 2-3: Install Your Pci Cards Into The Extension Chassis (Using The Pcis-8580-4S As An Example)
2. Plug you PCI cards into the extension chassis and screw them to the chassis. 3. Put the top cover and tighten the screws. Figure 2-3: Install your PCI cards into the extension chassis (using the PCIS-8580-4S as an example) Installation... -
Page 20: Connect To Extension Chassis
Please DO NOT use standard DVI cable to connect your host computer and the extension chassis. Figure 2-4: Connect you host computer and extension chassis (using the PCIS-8580-4S as an example) Power-on Sequence To make the PCI-to-PCI extension system works well, you need to follow a correct power-on sequence for both extension chassis and host computer. - Page 21 The PCIS-8580-13S features a remote power-on function. When users enable the remote power-on function, the above power-on sequence can be neglected. Installation...
- Page 22 Installation...
-
Page 23: Hardware Overview
Hardware Overview This chapter illustrates the basic hardware architecture of each component in the ADLINK PCIS-8580 PCI-to-PCI extension sys- tem. 3.1 System Architecture This section describes the operation theory and technology of the PCIS-8580 PCI-to-PCI extension system. Operation Theory Figure 3-1: Operation theory of PCIS-8580 PCI-to-PCI extension system... -
Page 24: Lpci-8575 Pci Extension Card
3.2 LPCI-8575 PCI Extension Card This section describes the basic function, bus architecture and jumper settings of the PCI extension module LPCI-8575. Functional Block The LPCI-8575 extension module is basically a PCI-to-PCI bridge. The PCI-to-PCI bridge function in the LPCI-8575 supports legacy address routed traffic, which provides 100% capability with PCI drivers, application software, BIOS, O/Ss, etc. -
Page 25: Jumper Settings For Lpci-8575
Jumper Settings for LPCI-8575 The following figure shows the locations of jumpers and the con- nector. Figure 3-3: Jumpers and connectors on the LPCI-8575 Jumper / Connector / LED Descriptions A DVI-D connector for the serial link for PCI-to-PCI extension. Please DO NOT connect CN1 to any monitor or video device. -
Page 26: Table 3-2: Jp1 Settings
adopts a spread-spectrum clock generator to help user to deal with this difficult task. Spread spectrum clocking speeds up and slows down the clock within a few percent of its fundamental frequency. By reducing the peak amplitudes, the system will more likely meet EMI emission compliance standards. -
Page 27: Table 3-4: Jp3 Settings
Setting Auto detection mode disabled, force to 33MHz. PCI bus is forced to operate at 33 MHz. If your extended system is 66MHz capable, please switch JP2 to 1-2 contact. (Default) Table 3-3: JP2 Settings Peripheral / System Slot Selection, JP3 LPCI-8575 is a dual purpose PCI-to-PCI extension module. -
Page 28: Table 3-5: D2 Display
Serial Link Status LED Connector, JP4 The serial link status is shown on LED D2. LPCI-8575 also pro- vides a LED connector for user’s applications. The pin assign- ment of JP4 is shown in the following figure. Anode Cathode Serial Link Status LED, D2 The LED D2 shows the serial link status. -
Page 29: Backplane Architecture
3.3 BP-8005 This section describes the architecture and jumper settings of the BP-8005 backplane. The BP-8005 is for PCIS-8580-4S and is pre- installed in the RK-8005 chassis. Backplane Architecture The BP-8005 backplane provides 1 system slot and 4 available PCI peripheral slots. The system slot is occupied by a pre-installed... -
Page 30: Figure 3-4: Top View Of Bp-8005 Backplane
LPCI-8575 PCI extension card. The rest PCI slots are available for any 5V PCI peripheral cards. Figure 3-4: Top view of BP-8005 backplane Hardware Overview... -
Page 31: Figure 3-5: Bottom View Of Bp-8005 Backplane
Figure 3-5: Bottom view of BP-8005 backplane Hardware Overview... -
Page 32: Jumpers And Connectors
Jumpers and Connectors Jumpers and connectors on the top side JP/CN Ended Voltage Out Description +12V, GND Fan connector for 12V fan +5V, GND LED connector +12V, GND Fan connector for 12V fan Table 3-6: Top side jumpers and connectors Jumpers and connectors on the bottom side JP/CN Ended Voltage Out... -
Page 33: Mechanical Drawing Of Rk-8005
3.4 RK-8005 RK-8005 is a robust industrial chassis for accommodating the BP- 8005 backplane. The RK-8005 is a small, compact chassis (122mm x 195mm x 260mm) with a built-in 200W universal AC power supply. The RK-8005 is provided with a wall-mount kit so you can place it in many different environments. -
Page 34: Bp-8014
3.5 BP-8014 This section describes the architecture and jumper settings of the BP-8014 backplane. The BP-8014 is for PCIS-8580-13S and is pre-installed in the RK-8014 chassis. The BP-8014 is specially designed to provide the remote power-on capability. When users turn on the host computer, the extension chassis will be automati- cally actuated. -
Page 35: Jumpers And Connectors
Jumpers and Connectors JP/CN Ended Voltage Out Description 3.3V,±12V,5V ATX POWER connector FAN4 12V, GND Fan connector for 12V fan FAN5 12V, GND Fan connector for 12V fan FAN6 12V, GND Fan connector for 12V fan ATX POWER ENABLE 5V, GND POWER-OK status connector 5V, GND LED connector... - Page 36 To enable the remote power-on function, please follow the follow- ing steps to correctly set the jumpers. 1. Correctly short the JP3, JP4 and JP5. Normal power-on sequence Remote power-on 2. Connect JP1 to the JP4 of the LPCI-8575. 3. Please notice that if the remote power-on function is enabled, the main power switch of the extension chassis will be ineffective.
-
Page 37: Mechanical Drawing Of Rk-8014
3.6 RK-8014 RK-8014 is a robust industrial chassis for accommodating the BP- 8014 backplane. The RK-8014 is a 19” rack-mount chassis with a built-in 400W universal AC power supply. Mechanical Drawing of RK-8014 Figure 3-8: Mechanical drawing of RK-8014 Hardware Overview... -
Page 38: Acl-Pciext-2
3.7 ACL-PCIEXT-2 ACL-PCIEXT-2 is the cable connecting the host computer and the extension chassis. It is carefully designed to transmit 622Mbps LVDS signals. ACL-PCI-EXT-2 contains 8 pairs of shielding twisted copper wires and 2 DVI-D 24-pin connectors. For users who need longer extension distance, optional ACL-PCIEXT-5 (5m) and ACL-PCIEXT-10 (10m) are provided. -
Page 39: Warranty Policy
Warranty Policy Thank you for choosing ADLINK. To understand your rights and enjoy all the after-sales services we offer, please read the follow- ing carefully. 1. Before using ADLINK’s products please read the user man- ual and follow the instructions exactly. When sending in... - Page 40 3. Our repair service is not covered by ADLINK's guarantee in the following situations: Damage caused by not following instructions in the User's Manual. Damage caused by carelessness on the user's part dur- ing product transportation. Damage caused by fire, earthquakes, floods, lightening, pollution, other acts of God, and/or incorrect usage of voltage transformers.
