Summary of Contents for Gainsborough G+ HOME HUB

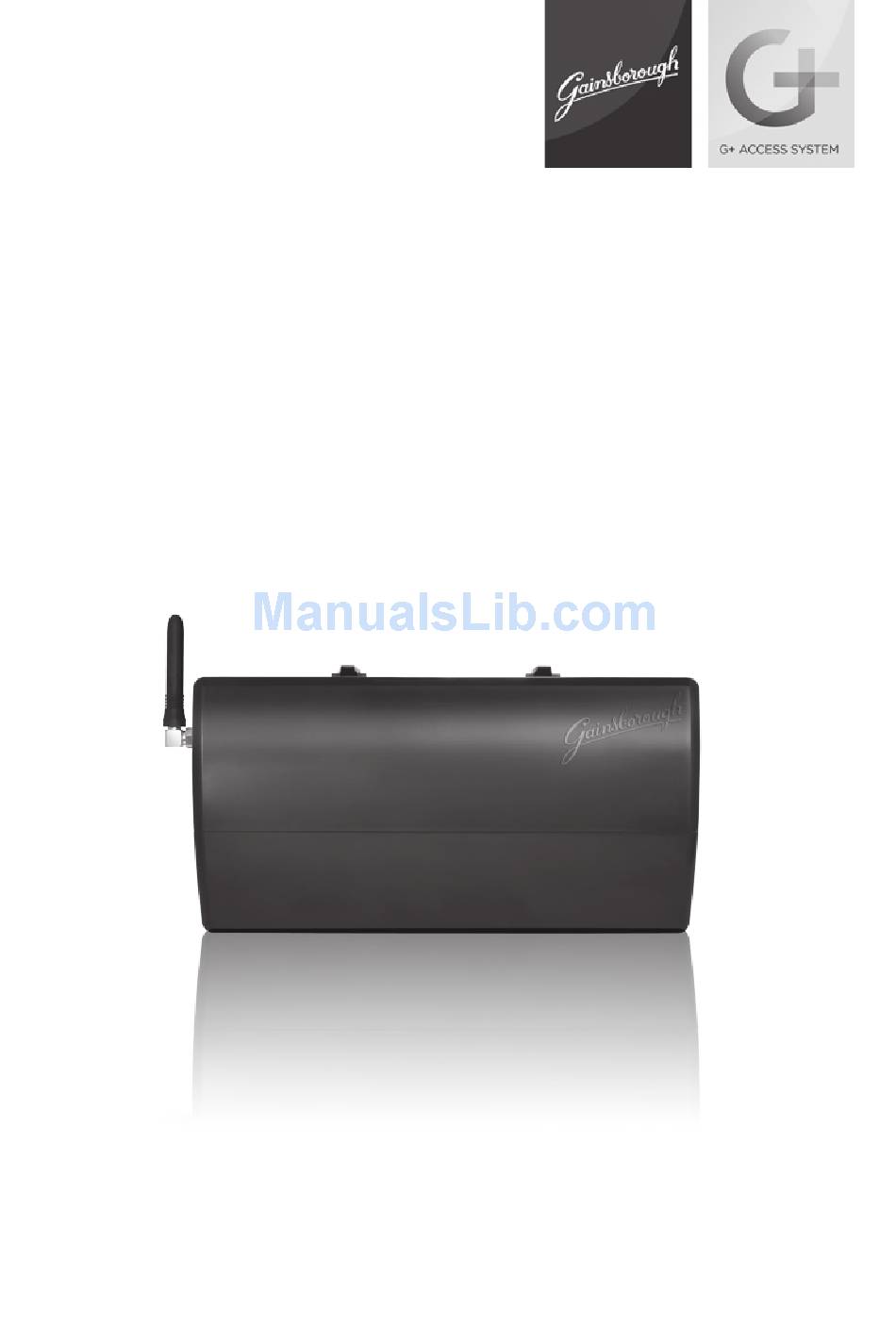

- Page 1 G+ HOME HUB User Guide...
- Page 3 WELCOME TO THE EASIER WAY TO ACCESS YOUR HOME...
- Page 4 This guide will show you how to install your G+ Home Hub. WHaT’s IN your G+ HoME HuB BoX? G+ HOME HUB MOUNTING BRACKET Take care! Electricity kills. switches, power outlets and other fixed wire products must be installed by a licensed electrical contractor or similarly qualified person.
-
Page 5: Table Of Contents
CoNTENTs sECTIoN 1 Overview .........................2 Applications Non G+ Control Systems Feedback Layout ........................5 Communication overview ...................7 sECTIoN 2 Installation ......................9 Location Mounting instructions Wiring Instructions Guidelines Setup ........................17 Programming sECTIoN 3 General Specifications ..................19... - Page 7 OVERVIEW, LAYOUT, COMMUNICATION OVERVIEW...
-
Page 8: Overview
The G+ Home Hub is an electrically powered device used within the G+ Access System to enable non G+ Systems to control G+ Devices. The G+ Home Hub is wired to a non G+ control system to: • Receive input commands from the non G+ control system • Send status of (receive feedback from) suitable G+ Devices to the... -
Page 9: Non G+ Control Systems
• Home automation systems • Building access systems * A suitable system is one that activates the G+ Home Hub by a voltage free switch. NoTE: The installer is responsible for ensuring the compatibility of systems being connected to the G+ Home Hub. -
Page 10: Feedback
FEEdBaCk The G+ Home Hub is capable of sending information about the status of the device it is controlling to the non G+ Controller, if this information exists. In this manual this information is referred to as feedback. Examples of feedback include: • From the Electric G+ Lockset... -
Page 11: Layout
Layout Connections when controlling an Electric G+ Lockset Input – Feedback – Deadlock Passage Input – Feedback – Privacy Privacy Input – Feedback – Passage Deadlock Programming Power connector Feedback – Door Closed section 1 Layout... - Page 12 Layout Connections when controlling 3 x G+ Smart Boxes with Feedback Input – Power G+ Smart Box 1 Input – Feedback – G+ Smart Box 2 G+ Smart Box 1A Input – Feedback – G+ Smart Box 3 G+ Smart Box 1B Programming Feedback –...
-
Page 13: Communication Overview
G+ Lockset G+ Smart Boxes Receives Receives commands Receives commands commands from from the G+ Home Hub from G+ Home Hub the G+ Home Hub Can send feedback to Can send feedback to the G+ Home Hub the G+ Home Hub... -
Page 15: Installation
INSTALLATION, WIRING AND SETUP... -
Page 16: Location
The G+ Home Hub is to be installed in a secure, dry environment out of direct sunlight. Do not install the G+ Home Hub in a metal box as this will severely interfere with RF reception and transmission. NoTE: The installation location, (walls / materials), can affect the operation distance between the G+ Home Hub and a G+ lockset / G+ smart Box. - Page 17 Step 3: Connect wiring See Section 2 – Wiring Instructions Guidelines (page 12-16) Step 4: Snap on Protective Cover section 2 Installation...
-
Page 18: Wiring Instructions Guidelines
NoTE: The installer is responsible for ensuring the compatibility of systems being connected to the G+ Home Hub. Function overview The G+ Home Hub has 3 inputs that control the following: In the case of a G+ Lockset: – Input 1: Deadlock Mode –... - Page 19 Possible scenarios FEEdBaCk dEVICE NoN FEEdBaCk dEVICE Input 1 Electric Deadlock G+ Smart Box connected G+ Lockset to a light Input 2 Electric Privacy – G+ Lockset Input 3 Electric Passage G+ Smart Box connected G+ Lockset to a gate FEEdBaCk dEVICE NoN FEEdBaCk dEVICE Input 1...
- Page 20 Typical wiring Inputs to the G+ Home Hub are activated by the Non G+ Controlling Device by closing voltage free switches. The inputs will only respond once per activation i.e. the G+ Home Hub will only send one command to the Powered G+ Lockset or G+ Smart Box once for every time the Input is activated.
- Page 21 Typical wiring for an Electric G+ Lockset NoTE: Note for the example below • The door Closed output is wired to indicate the door is closed / power is on. • The passage; privacy; and deadlock outputs are wired Normally open i.e.
- Page 22 Typical wiring for 3 x G+ Smart Boxes The illustration below shows 3 x G+ Smart Boxes wired Normally Open. All outputs could be wired Normally Closed. G+ Smart Box 3 G+ Smart Box 2 G+ Smart Box 1 Output 1 Output 1 Output 1 G+ Smart Box 3...
-
Page 23: Setup
Setup proGraMMING Contact a Gainsborough Hardware Licensed Locksmith / Installer to program a G+ Home Hub to another G+ Device. section 2 Setup... -
Page 25: General Specifications
GENERAL SPECIFICATIONS... - Page 26 916.365 MHz & 918 MHz ENVIroNMENTal spECIFICaTIoN Operating temperature range -10°C to 50°C Storage temperature range -10°C to 60°C FrEquENTly askEd quEsTIoNs Refer to the Gainsborough website for frequently asked questions. www.gainsboroughhardware.com.au CoNTaCT Customer service 13 14 18 section 3 General Specifications...
- Page 27 The availability of products set out in this document is not guaranteed and Gainsborough Hardware reserves the right to alter, amend or delete any part of this document without prior notice. This disclaimer is subject to any contrary legislative provisions.
- Page 28 Gainsborough Hardware Industries Limited Hotline 13 14 18 Head Office 31–33 Alfred Street Blackburn, VIC 3130 PO Box 330, Blackburn VIC Telephone 03 9877 1555 Admin & Export Fax +61 (0)3 9894 1599 Email sales@gainsboroughhardware.com.au www.gainsboroughhardware.com.au Suite 1B, 433 Logan Rd 12 Juna Drv 31–33 Alfred St...
